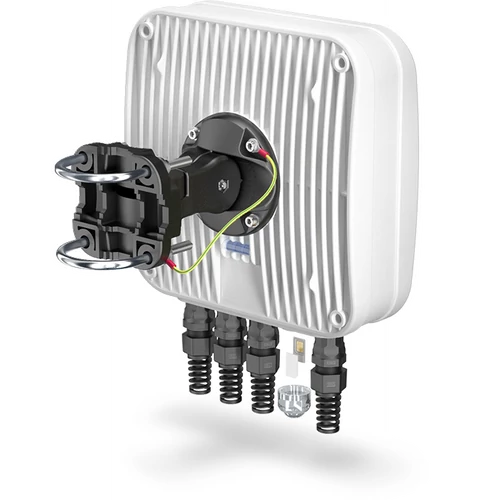

Kültéri CCTV dual SIM LTE PoE átjáró beágyazott PoE switch-el CCTV kamerákhoz (RUT950 LTE router nem tartozék).
Kültéri CCTV dual SIM LTE PoE átjáró beágyazott PoE switch-el CCTV kamerákhoz (RUT950 LTE router nem tartozék).

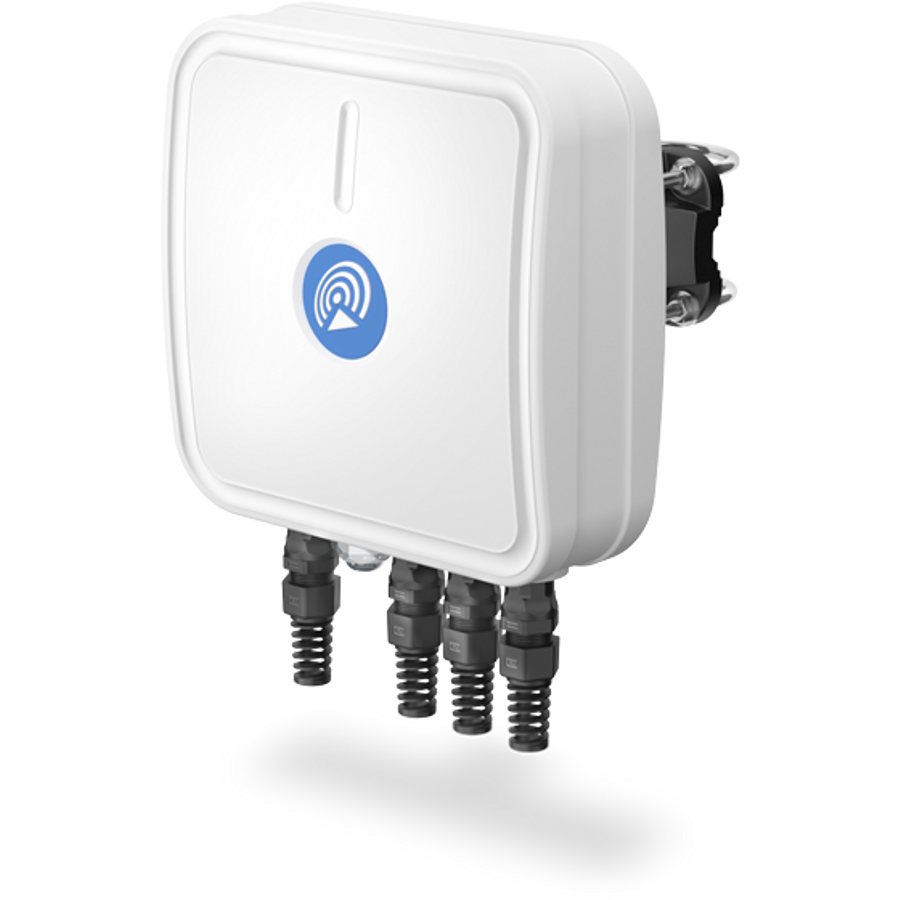

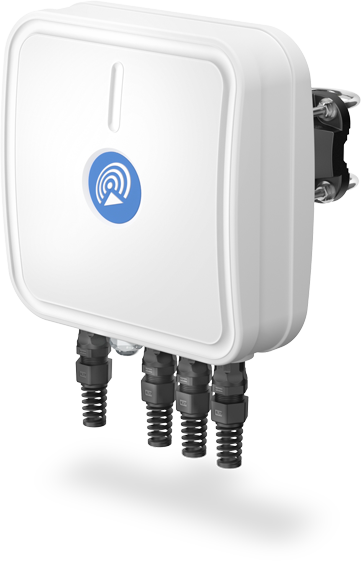

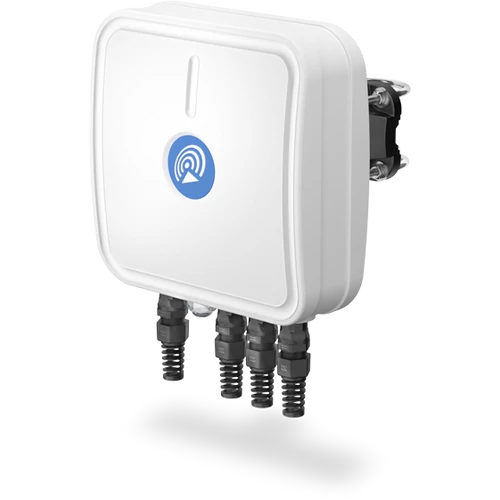

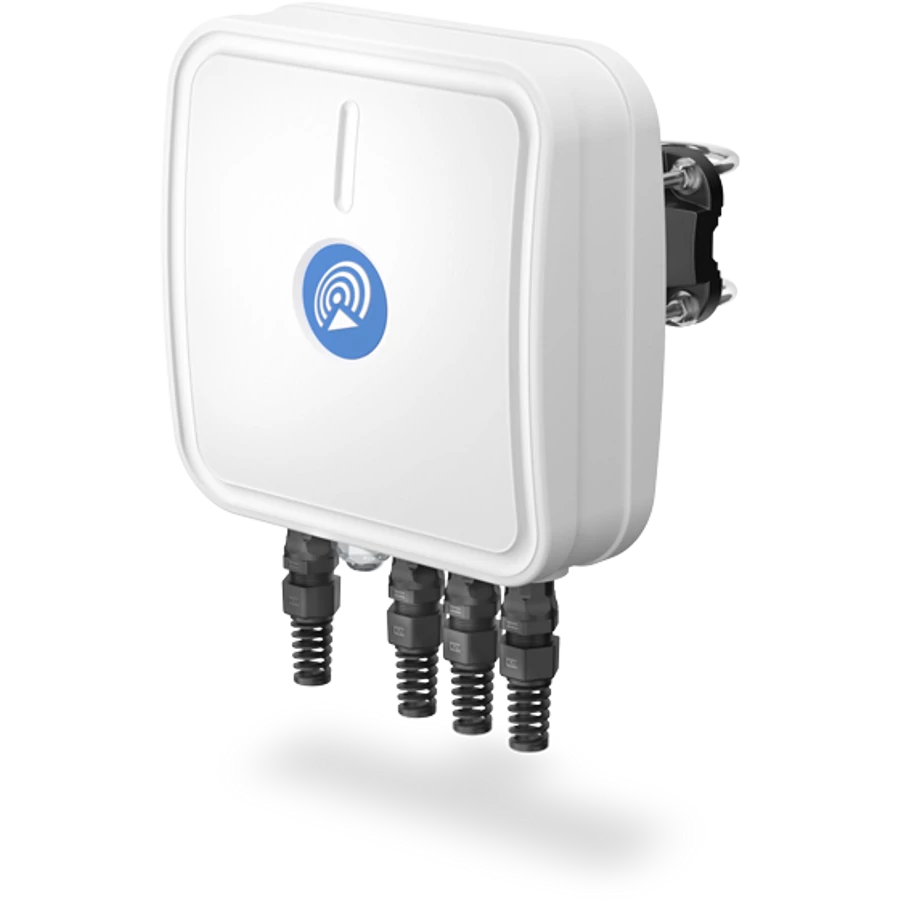

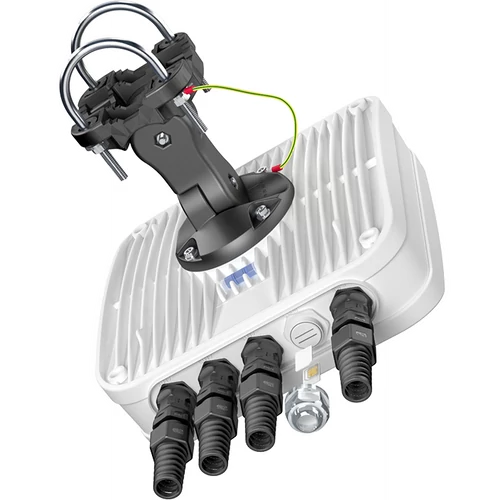

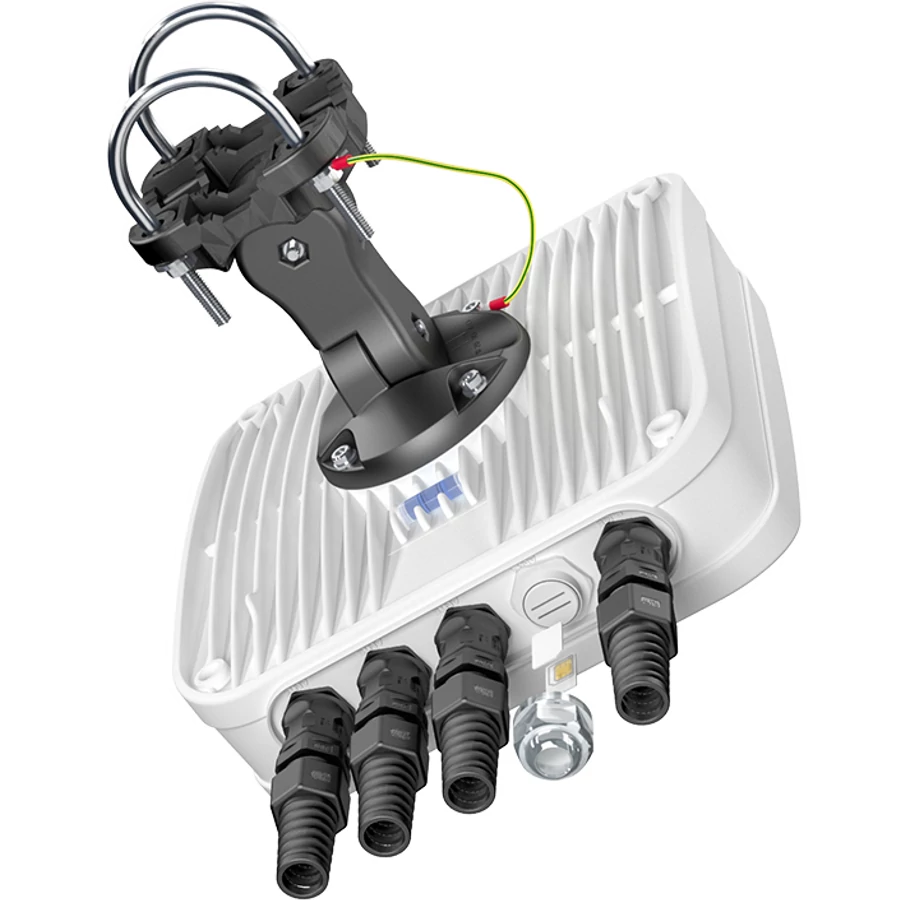

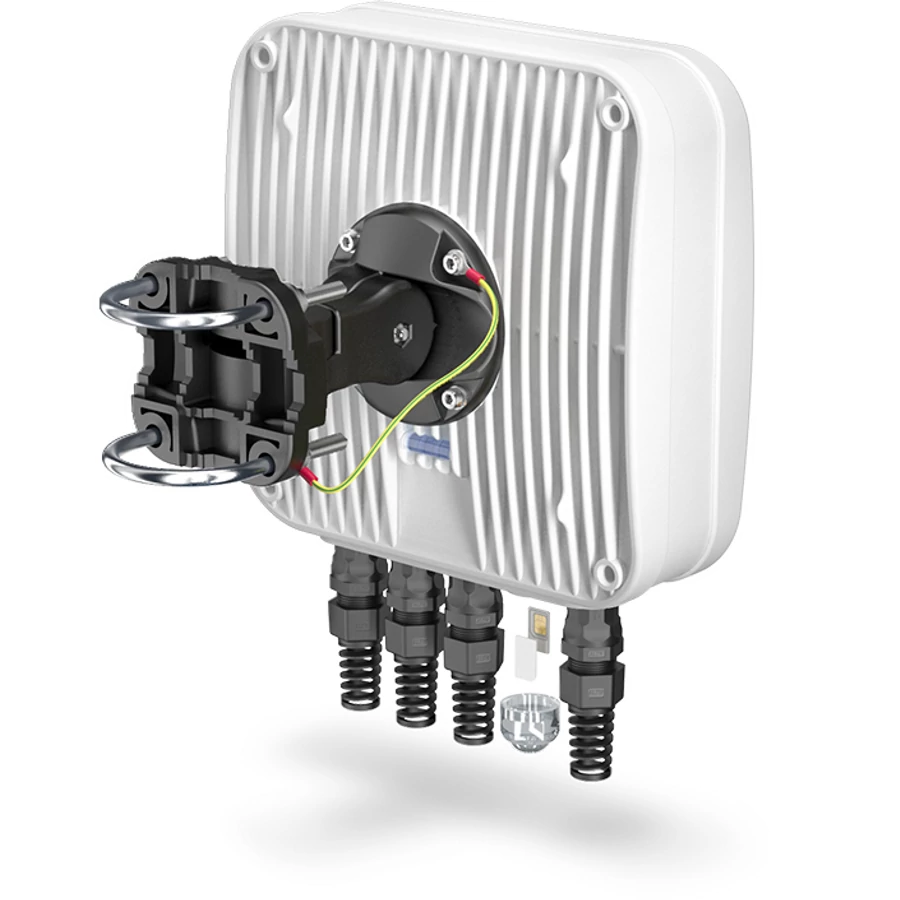

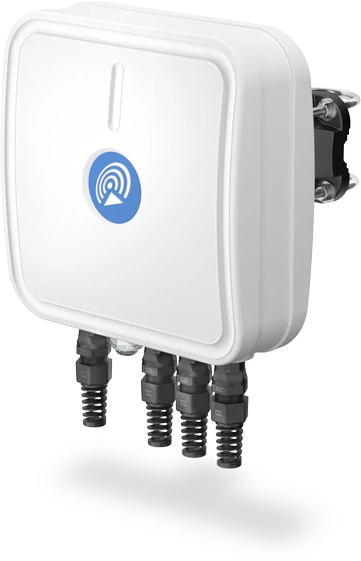

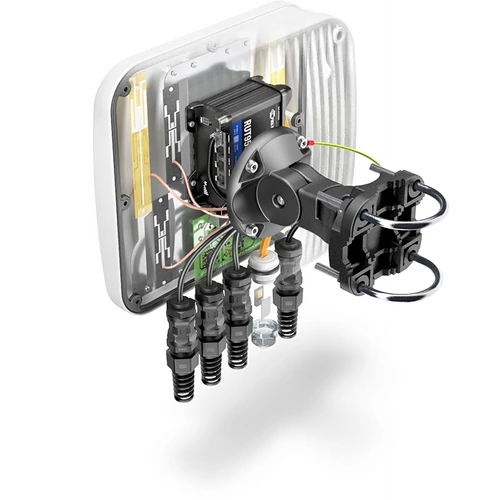

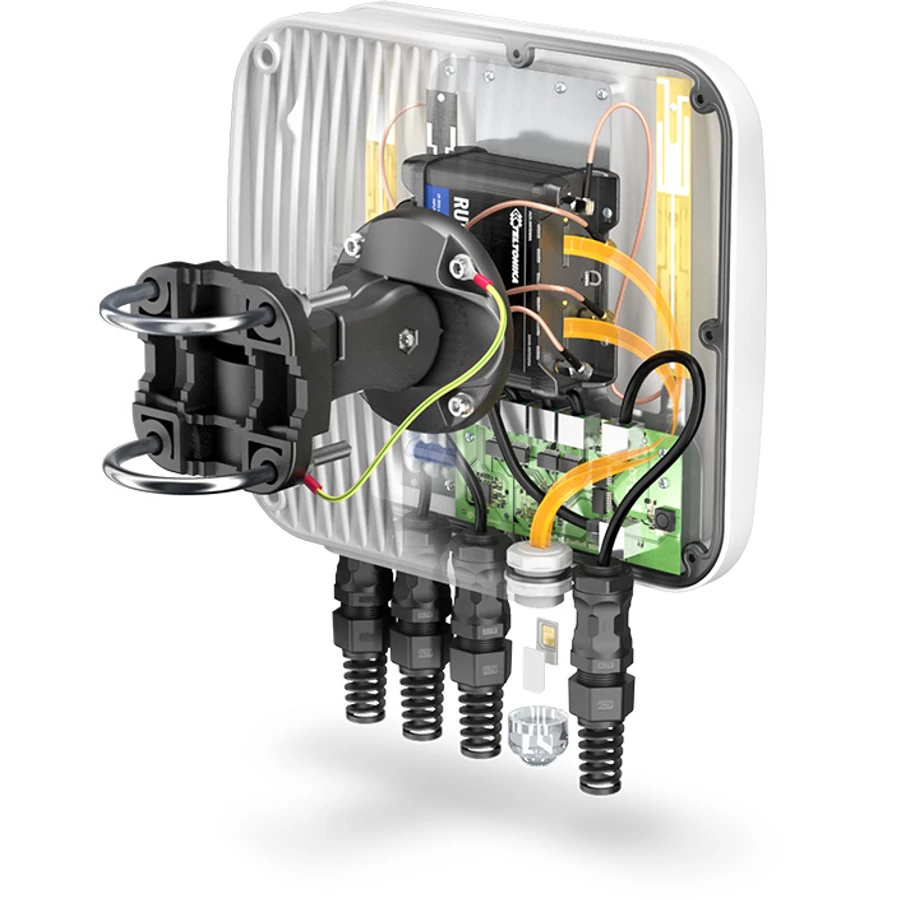

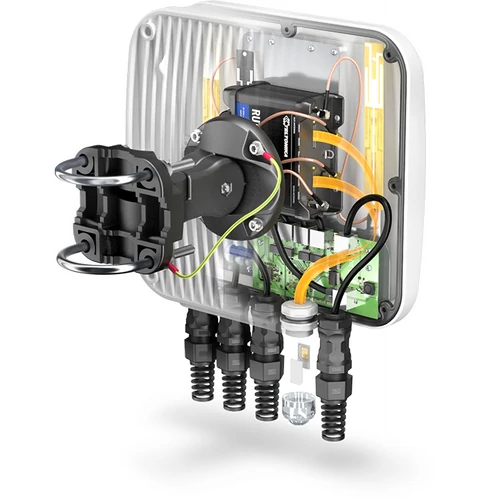

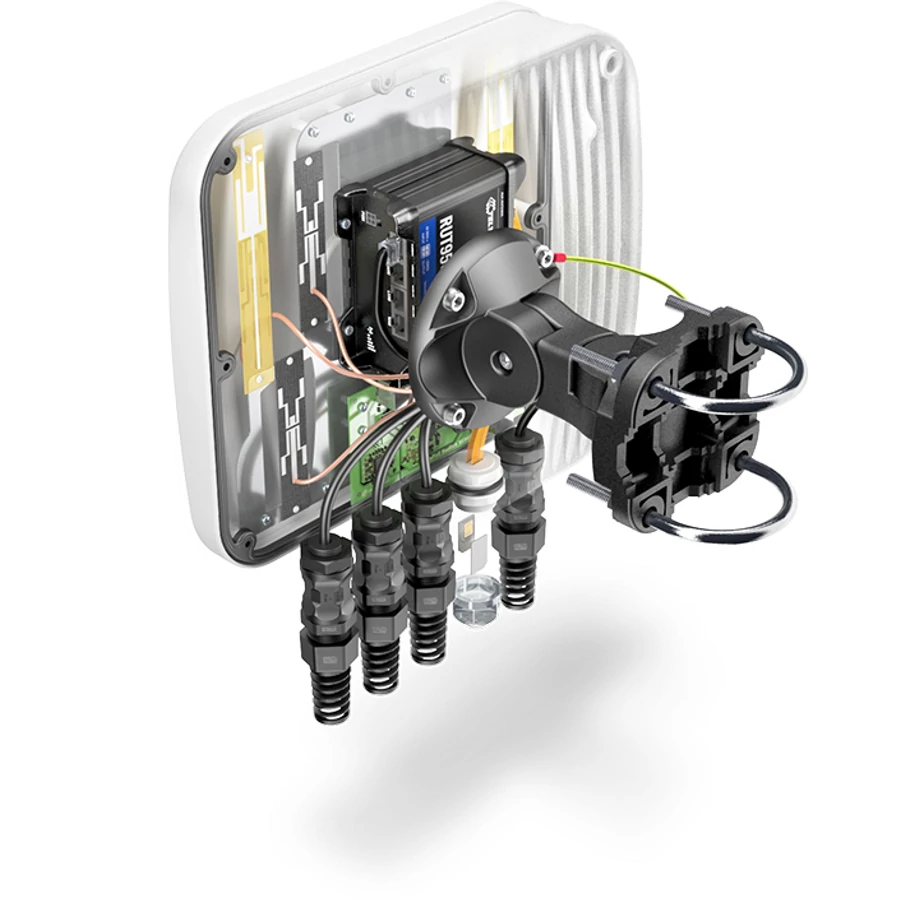

A QuCam RUT950 egy nagy teljesítményű kültéri ipari átjáró professzionális CCTV alkalmazásokhoz, beágyazott PoE switch-el akár 3x CCTV kamerákhoz ésTeltonika RUT950 telepítési hellyel (nem része az átjárókészletnek). A QuCam RUT950 integrált omni LTE és Wi-Fi MIMO 2x2 antennával is rendelkezik. A mobil router nagy teljesítményt nyújt a kritikus cellás kommunikációhoz olyan zord és veszélyes környezetben, ahol széles üzemi hőmérsékletre van szükség. Két külső SIM tartóval felszerelt.
| Tulajdonság | Érték |
|---|---|
| LTE ANTENNA SPECIFICATION | |
| Frequency | 0.694 - 0.96 GHz, 1.7 - 2.2 GHz, 2.5 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95 |
| Gain | 0.694 - 0.96 GHz ; 2 dBi, 1.7 - 2.2 GHz ; 2 dBi, 2.5 - 2.7 GHz ; 4 dBi |
| VSWR | <1.50, max <2.50 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
| Frequency | 2.40 - 2.50 GHz |
| Gain | 3 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | 2x Vertical |
| Impedance | 50 Ω |
| PoE SWITCH SPECIFICATION | |
| LAN Ports | 6x RJ45 10/100Mbps |
| PoE Input | 1x Passive PoE input 44-60V (LAN_5) |
| PoE Output 4x Active PoE 802.3af/at (LAN_1-4), 1x Passive PoE output 24V/7.2W (LAN_6) | |
| PoE Output protection | LAN_1-4; 0.75A, LAN_5; 1.25A (separate resettable fuses) |
| Passive PoE mode | mode B (4,5+) (7,8-) |
| LEDs | 1x Power on (white, on board), 6x Link (orange, on port), 6x Transmit (green, on port) |
| Operating temperature | -10°C … +40°C |
| Installation | 4x holes ⌀2.5mm |
| Dimensions | 73mm x 145mm x 17mm (WxLxH) |
| Weight | 69.5g |
| POWER SUPPLY ELECTRICAL INPUT SPECIFICATION | |
| Input voltage | 110 … 240VAC |
| Input frequency | 50 … 60Hz |
| Input current | max. 2A RMS |
| Inrush current | max. 30A |
| AC leakage current | max. 3.5mA |
| Efficiency | min. 80% @ 100VAC, 84% @ 240VAC |
| Dielectric strength (primary to secondary) | 2kVAC/5mA/1s |
| Input socket | IEC320-C6 |
| AC power cord | 1.5m length, 3 pins EU or UK plug |
| POWER SUPPLY ELECTRICAL OUTPUT SPECIFICATION | |
| Output voltage | 56VDC |
| Min. load | 0A |
| Max. load | 1A |
| Peak load | 1.46A |
| Output power | 56W |
| Line regulation | ± 3% |
| Load regulation | ± 5% |
| Ripple | 560mVpp |
| Turn on delay time | max. 5s |
| Rise time | max. 40ms |
| Hold up time | min. 5ms |
| Overshoot | max. 15% |
| Protecions | Short circuit, over current (110 … 200% of DC output) |
| Ethernet ports | Input (LAN); 1x RJ45 10/100Mbps, Output (PoE); 1x RJ45 10/100Mbps |
| PoE mode | mode B; pins 4,5 + / pins 7,8 - |
| LEDs | Green; Power supply is on, Orange; PoE device connected |
| POWER SUPPLY MECHANICAL SPECIFICATION | |
| MTBF | 30,000 operating hours confidence-level at 80% load, 25°C |
| Operating temperature | -10°C … +45°C |
| Storage temperature | -20°C … +85°C |
| Humidity | 5% @ 0°C, 90% @ 40°C |
| Size | 146 x 59 x 30mm (LxWxH) |
| Safety | CE; EMC/LVD / FCC Part 15 Class B/ EN55022 Class B/ EN55024 |
