Milesight IOT

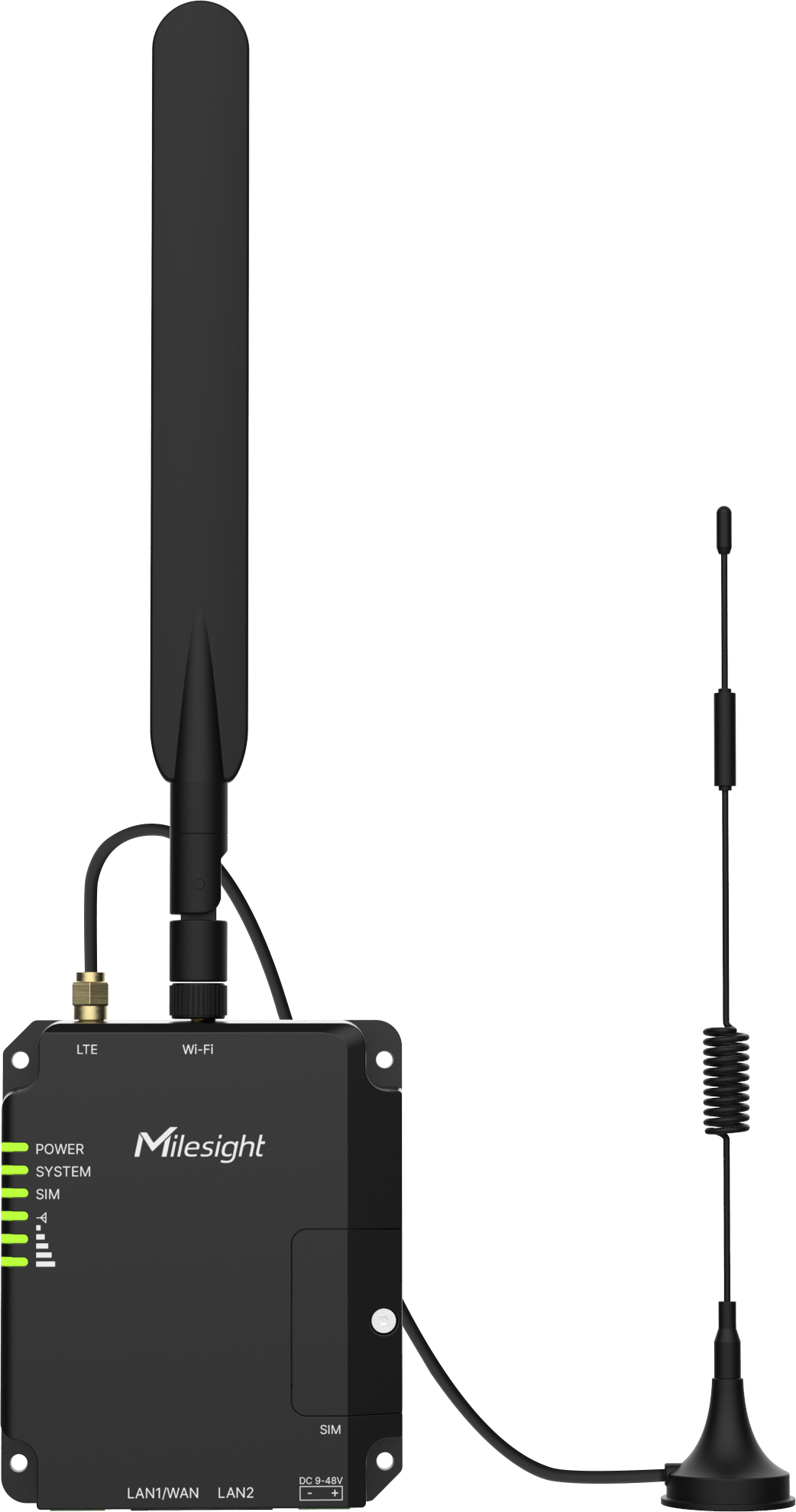

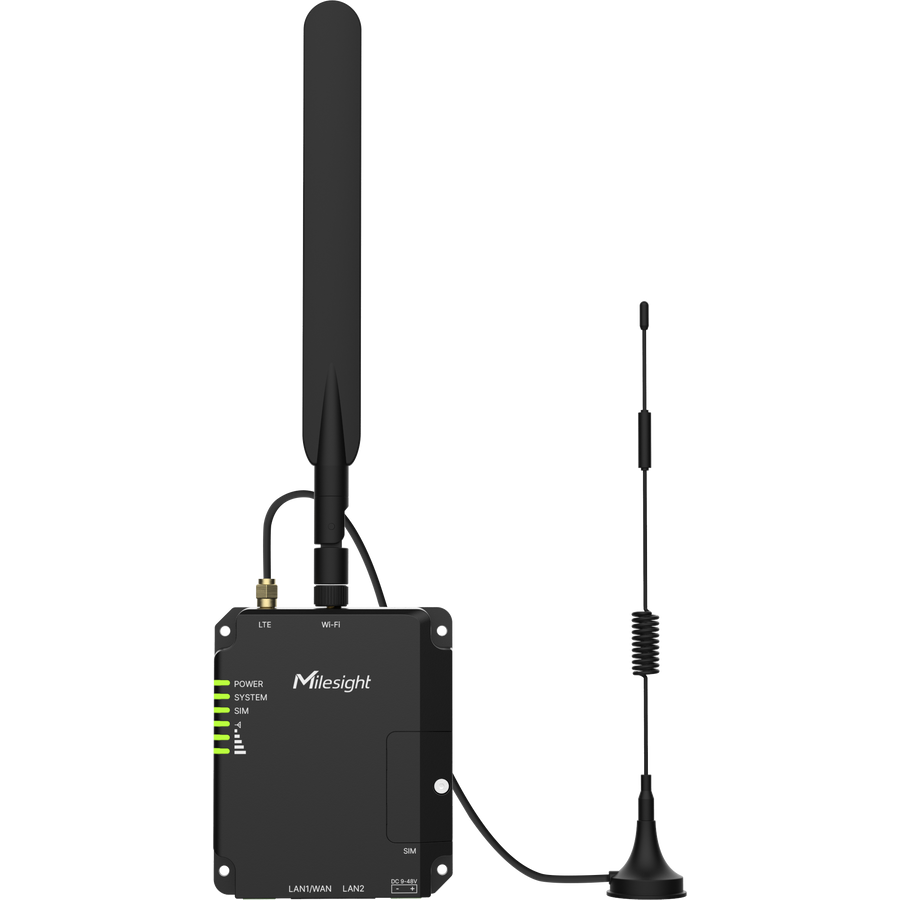

Vadonatúj Milesight IOT UR32S Ipari 4G LTE Router
2 Ethernet porttal és WiFi-vel ellátott UR32S az UR32 Light verziója. Kedvező árának köszönhetően kiváló választás olyan felhasználási helyekre, ahol szükség van WiFi kapcsolatra, de nincs szükség a Digitális KI/Bementekre vagy Dual Sim támogatásra.
Beépített LTE CAT4 modemének köszönhetően150 Mbps Downlink & 50 Mbps Uplink sebesség érhető el.
UR32S főbb paraméterei:
| Tulajdonság | Érték |
|---|---|
| Mobilinternet | 4G/LTE (Cat 4) |
| WiFi | IEEE 802.11b/g/n |
| Ethernet | 2 x 10/100 Mbps 802.3 af/at PoE PSE |
| SIM | 1 x SIM foglalat |
| CPU | 528 MHz, 32-bit ARM Cortex-A7 Built-in Watchdog |
| Flash | 128 MB |
| Memory | 128 MB DDR3 |
| SIM slot | 1db |
| Ethernet Ports | 2 × 10/100 Mbps (1WAN +1LAN or 2×LAN) |
| PoE | 2 × 802.3 af/at PoE PSE on LAN Ports |
| WiFi Antenna Connector | 1×50Ω SMA Connector (Center PIN:RP-SMA Female) |
| WiFi Standards | IEEE 802.11 b/g/n，2.4GHz |
| WiFi Tx Power | 802.11b; 16 dBm +/-1.5 dBm (11 Mbps); 802.11g; 14 dBm +/-1.5 dBm (54 Mbps); 802.11n; 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) |
| WiFi Modes | AP or Client mode |
| WiFi Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Antenna Connectors | 1 x Cellular Connectors, |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH |
| AAA | RADIUS, TACACS+, LDAP, Local Authentication |
| Firewall | Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding |
| Serial Port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master |
| Reliability | VRRP, WAN Fail-over, |
| VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE |
| Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub |
| Multilevel Authority | Multiple Levels of User Authority |
| Power Input | 9-48 VDC, with Surge-Protection and Reverse Polarity Protection |
| Power Connector | 2-pin 5.08 mm Terminal Block |
| Ingress Protection | IP30 |
| Housing | Metal, |
| Dimensions | 108 x 90 x 26 mm |
| Mounting | Desktop, Wall or DIN Rail Mounting |
| Operating Temperature | -40°C to +70°C Reduced cellular performance above 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C |
