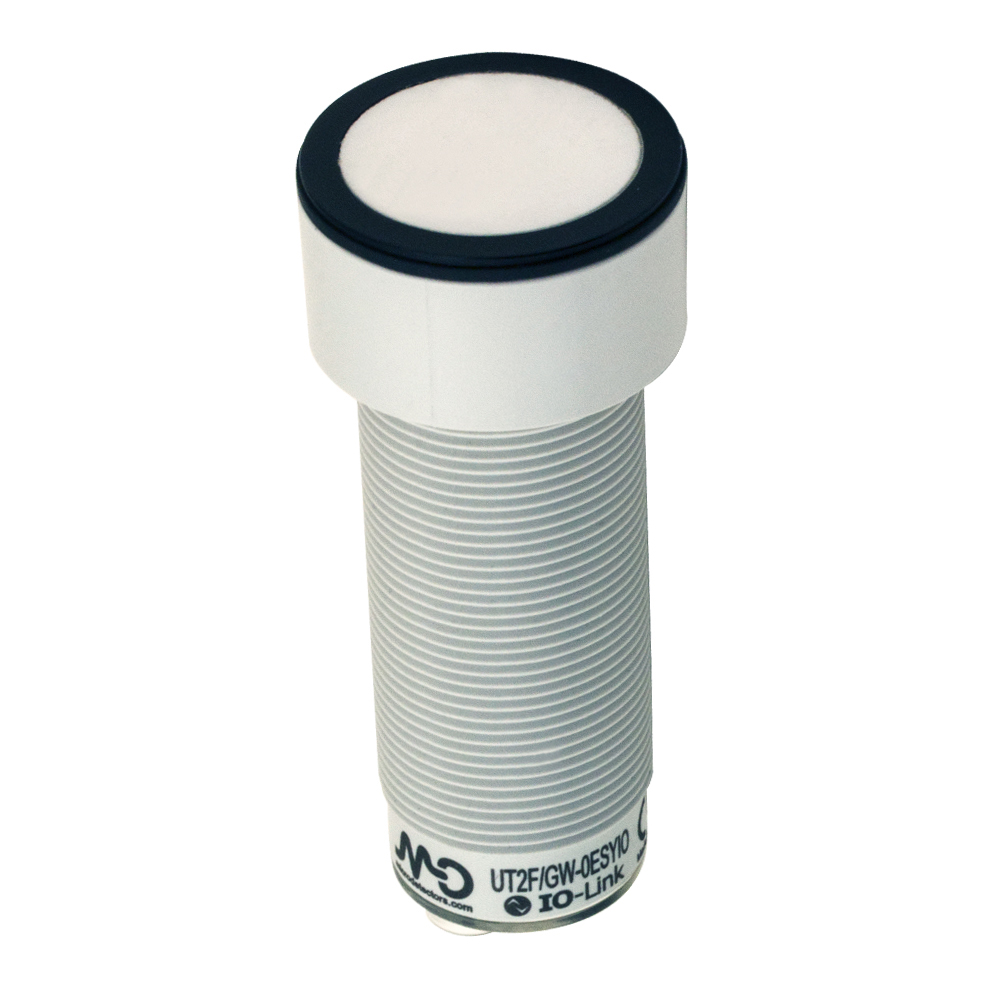

M.D. Micro Detectors
| Tulajdonság | Érték |
|---|---|
| Funkció | Ultrahangos érzékelő |
| Kimenet | 0-10V + PNP NO/NC |
| Nominal sensing distance | 6000mm |
| Minimum sensing distance (blind zone) | 350mm |
| Beam angle | 15° ± 2° |
| Switching frequency | 1Hz |
| Response time | 1s |
| Hysteresis | 1% off full scale value |
| Repeat Accuracy | 0,10% |
| Resolution | 6mm |
| Linearity error. 1% | |
| Operating temperature | - 20°C…+ 70°C |
| thermal compensation | Yes |
| temperature drift | ±5% |
| ripple | 5 % |
| leakage current | ≤ 10 μA @ 30 Vcc |
| output voltage drop | 2.2 V max. (IL = 100 mA) |
| no-load supply current | 25 mA |
| output current (digital output) | 100 mA |
| minimum load resistance (analog voltage output) | 3 k Ω |
| set point adjustment | Remote Teach-in by cable |
| power on delay | ≤ 400 ms (digital output) |
| power on delay | ≤ 9600 ms (analogue output) |
| power supply protections | polarity reversal, transient |
| digital output electrical protection | short circuit (auto reset), overvoltage pulses |
| analog output electrical protections | overvoltage pulses |
| EMC | conforming to EMC Directive, according to EN 60947-5-2 |
| protection degree | IP67 (EN60529); NEMA 4X(4) |
| housing material | PBT |
| active head material | epoxy-glass resin AISI 316L + PBT |
| tightening torque | 1.5 Nm |
| LED | Green:ECHO - Yellow:output |
| weight | 170g |
| storage temperature | - 30°C...+ 80° without freeze |
