DATASENSING

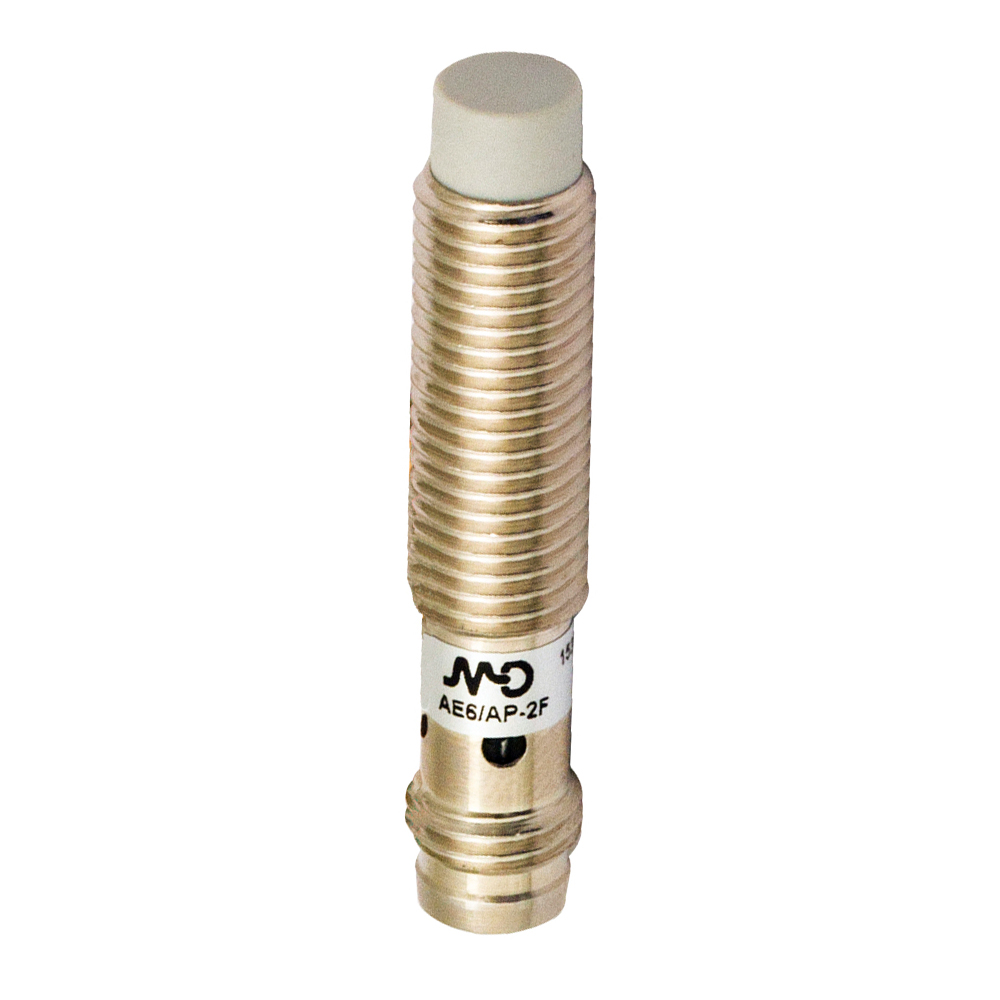

A Datasensing Induktív Érzékelő M8 AE6/CP-2F, nem árnyékolt, Sn.: 2,5 mm, PNP NC, M8 csatlakozó megbízható detektálást kínálnak ott is, ahol az optikai érzékelők nem alkalmazhatóak. Az induktív érzékelőket fém alkatrészek kis távolságú érzékelésére javasoljuk
| Tulajdonság | Érték |
|---|---|
| Funkció | Induktív érzékelő - nem árnyékolt |
| Kimenet | PNP NC |
| Nominal sensing distance | 2,5mm |
| Operanting distance | 0…2,02mm |
| Standard target | 8x8mm FE360 |
| Correction Factor | copper; 0,43 / aluminium; 0,51 / brass; 0,59 / stainless steel; 0,83 |
| Thermal drift of Sr | < 10% |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Hysteresis | 1 … 20% |
| Output type | PNP |
| Output Function | NC |
| Switching frequency | 5kHz |
| Operating Voltage | 10...30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤ 200mA |
| Leakage current | ≤ 10μA |
| Output voltage drop | ≤ 1,8V @200mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow LED output state |
| Time delay before availability | ≤ 50ms |
| Short-circuit protection | Yes (auto-reset) |
| Reverse Polarity Protection | Yes |
| Protection against inductive loads | Yes |
| Mounting | Unshielded |
| Dimensions | M8 x 1 / L = 50mm |
| Weight | 20g |
| Housing Material | Nickel-plated brass |
| Connections | M8 |
| Active Head Material | PBT |
| Tightening torque | 3Nm |
| Operating temperature | -25°C…+70°C |
| Diameter/Dimension | M8 |
| Approvals | CE UR |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | 2 nuts M8x1 |
| Dimensions | M8 x 1 / L = 45,5mm |
| Operating Temperature | -25°C…+70°C |
| Mechanical Protection | IP67 |
