Datalogic

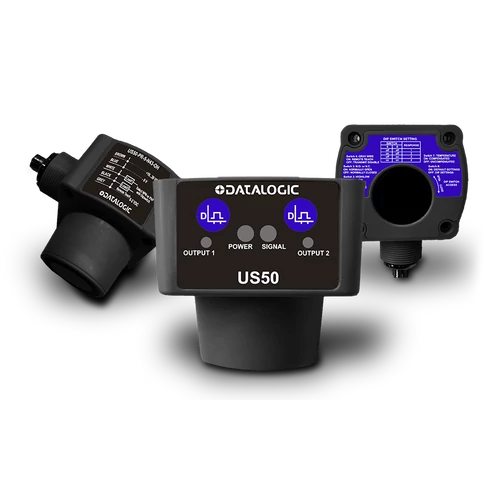

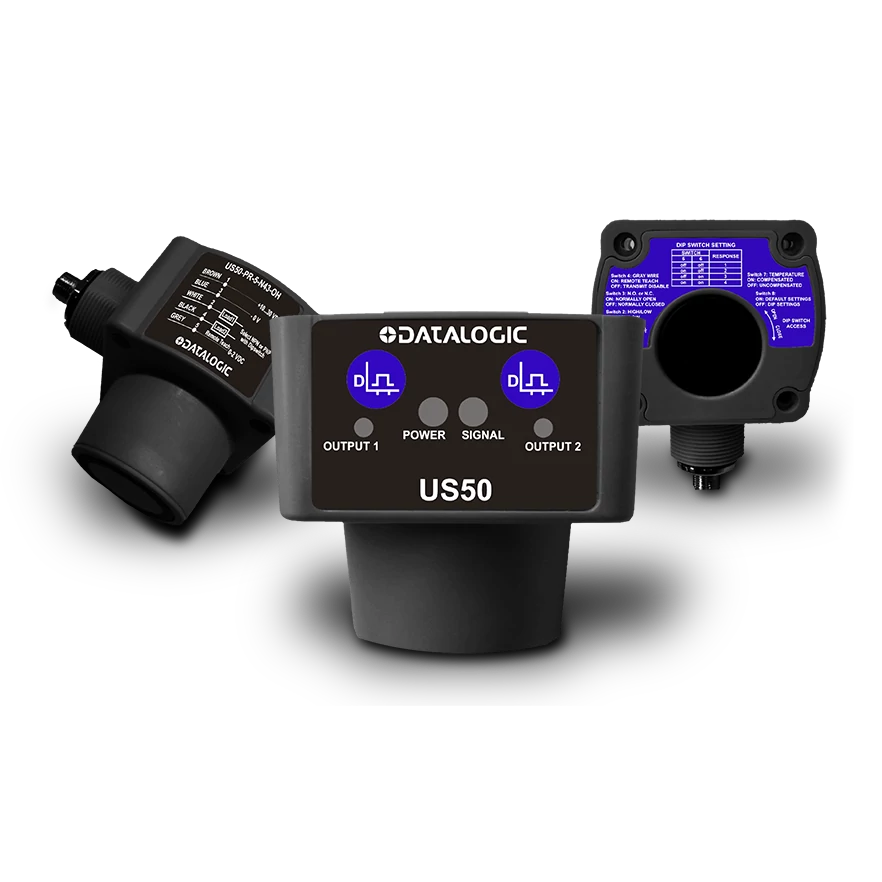

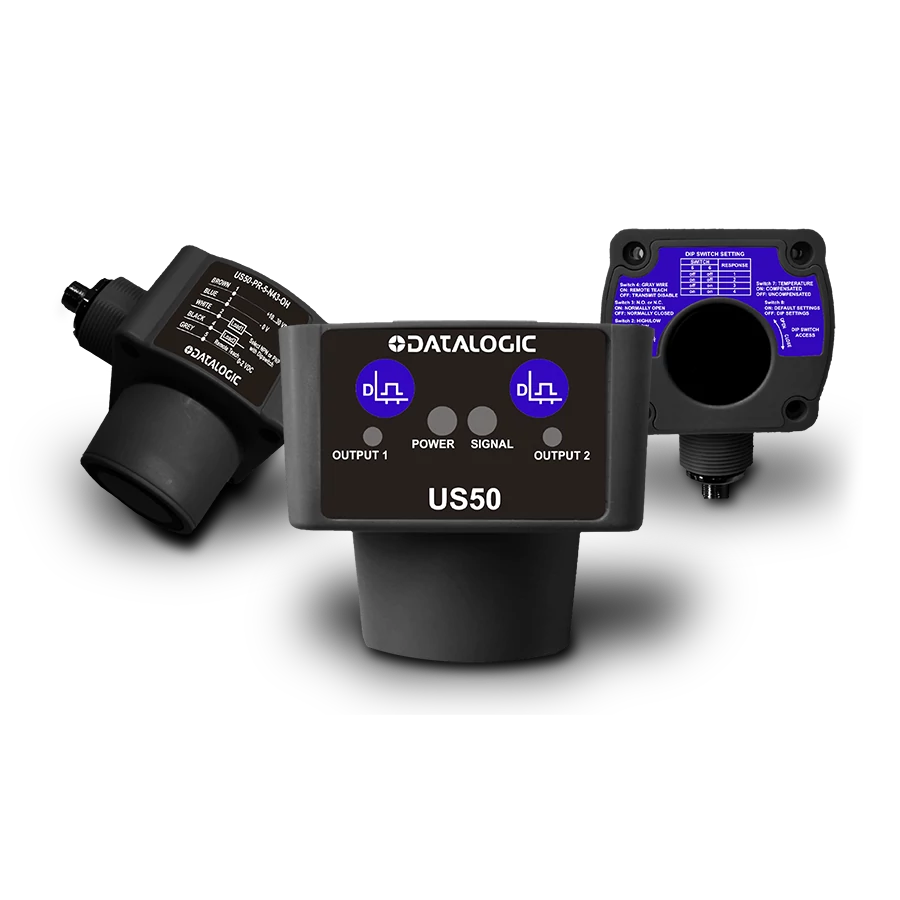

A Datalogic Ultrahangos érzékelő, PNP/NPN, Sn:200...8000mm US50-PR-5-N43-OH mérési tartománya 200 mm és 8 m közötti ezért ideális megoldást jelent minden olyan ipari alkalmazáshoz, ahol a célt az érzékelőtől nagyon távol kell észlelni vagy mérni.
| Tulajdonság | Érték |
|---|---|
| Power supply | 10 … 30 VDC (Class 2 UL508) reverse polarity protection |
| Ripple | <2 Vpp |
| Consumption (load current excluded) | 100mA max. at 10V 40mA max. at 30V |
| Ultrasonic frequency | 75 kHz burst, rep. rate 96 ms |
| Output configuration | NPN or PNP, selectable via DIP switch |
| Response time | 100 ms to 1600 ms |
| Indicators | Power On LED (GREEN), Out LED (YELLOW), Signal LED (RED), Output LED (bicolour YE LLOW /RE D) |
| Setting | Teach-in push-button or remotely via TEACH input (Connect grey wire to 0 to +2 VDC; impedence 12KΏ) |
| Delay at Power On | 1.5 sec |
| Temperature effect | 0.02% of distance /°C |
| Hysteresis | 5 mm |
| Repeatability | 1 mm |
| Minimum reading window size | 20 mm |
| Operating temperature | -20 … 70 °C |
| Storage temperature | -20 … 70 °C |
| Maximum relative humidity | 100% |
| Operating distance (typical values) | 200…8000 mm |
| Vibrations | 0.5 mm amplitude, 10…55 Hz frequency, for every axis(EN60068-2-6) |
| Shock resistance | 11 ms (30 G) shock for every axis (EN60068-2-27) |
| Reference standard | EN60947-5-2 |
| Housing material | ABS polycarbonate |
| Push-button material | Polyester |
| Mechanical protection | IP67 |
| Connections | M12 5-pol connector |
| Weight | 260 g |
