Datalogic
Ultrahangos érzékelő átlátszó vagy áttetsző tárgyak érzékelése vagy folyadékszint mérésére

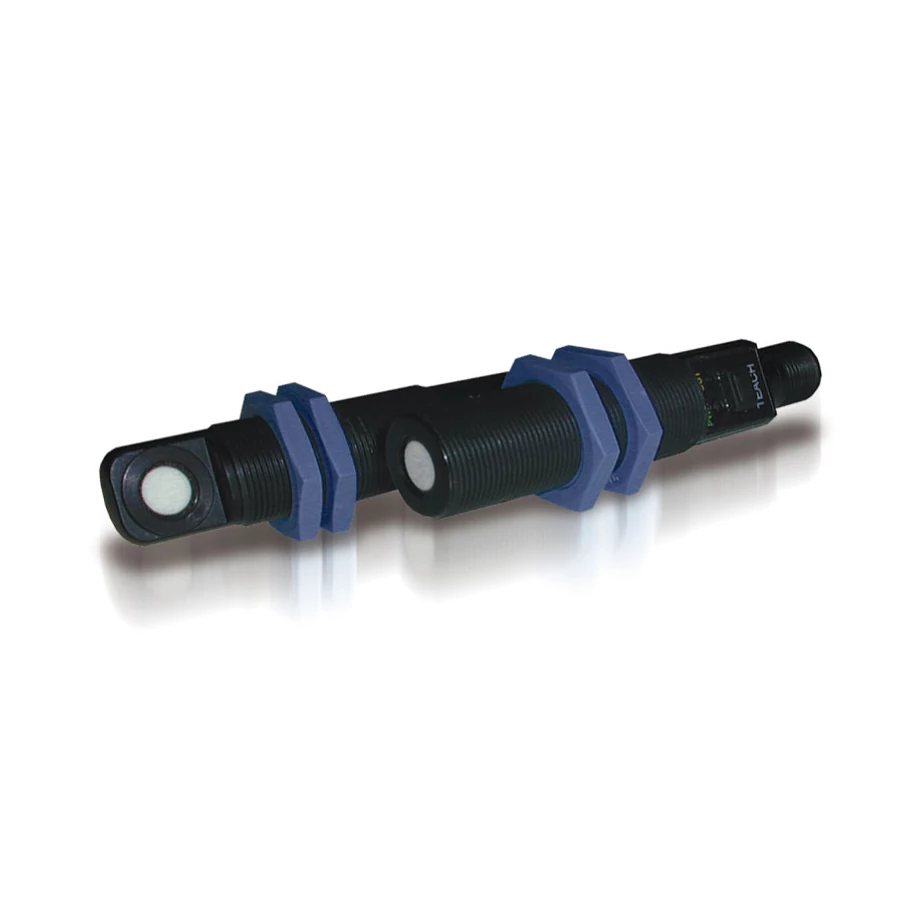

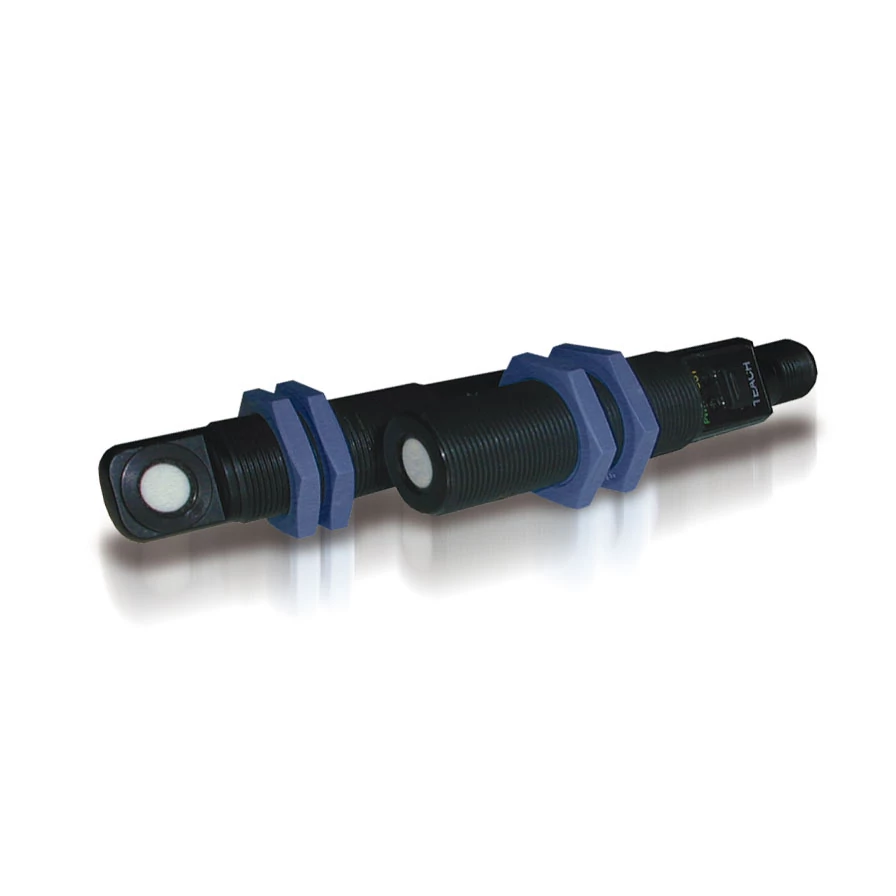

US18 ultrahangos érzékelő
| Tulajdonság | Érték |
|---|---|
| Operating distance | 30...300 mm |
| Housing Type | M18 tubular |
| Power supply | 10...30 Vdc |
| Ripple | 10% max |
| Current consumption | 65 mA max |
| Output current | 100 mA max. |
| Output saturation voltage | 1,6 V max. |
| Output | 0-10V analog output |
| Delay at powering | 300 ms |
| Response time | 2,5 ms (Analog out. FAST mode) 30 ms (Analog out. SLOW mode) |
| Switching frequency | 200 Hz (Analog out. FAST mode) 16 Hz (Analog out. SLOW mode) |
| Repeatibility | 0,5 mm |
| Indicators | yellow/green OUTPUT LED / red POWER LED |
| Setting | Teach-in push-button or remote input |
| Ultrasonic emission frequency | 300 kHz |
| Minimum detection window | 5 mm |
| Operating temperature | -25...+55 °C |
| Vibration | 0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6) |
| Shock resistance | 11 ms (30 G) 6 shock for every axis (EN60068-2-27) |
| Housing material | thermoplastic polyester |
| Protection class | IP67, NEMA 6-P rated |
| Connections | M12 5-pole connector |
