| Tulajdonság |
Érték |
|
Mobile
|
4G/LTE (Cat 1), 3G, 2G |
|
CPU
|
Qualcomm, ARM Cortex A7, 1.2 GHz |
|
Memory
|
512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace) |
|

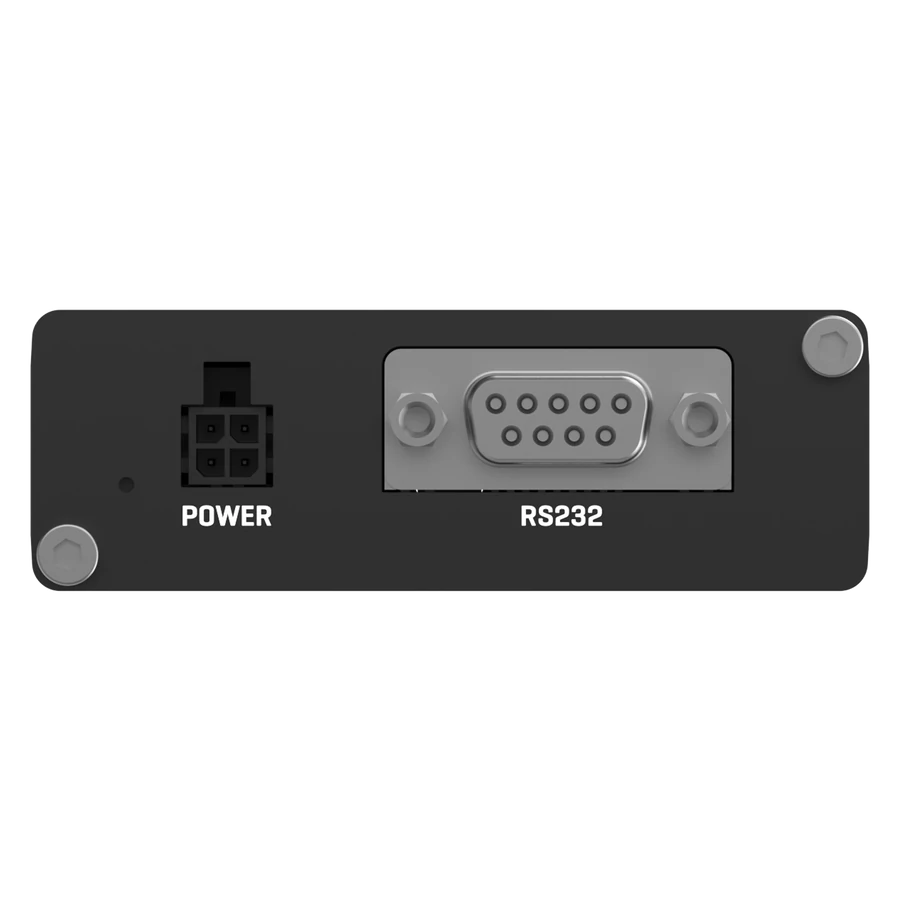

Powering option
|
4pin power socket, 9-30 VDC |
|
SIM
|
1 x Internal SIM holder (2FF) |
|
Antenna connectors
|
1 x SMA for mobile |
|
Inputs/Outputs
|
On 4pin socket:2 x Digital input/Digital open collector output (configurable) |
|

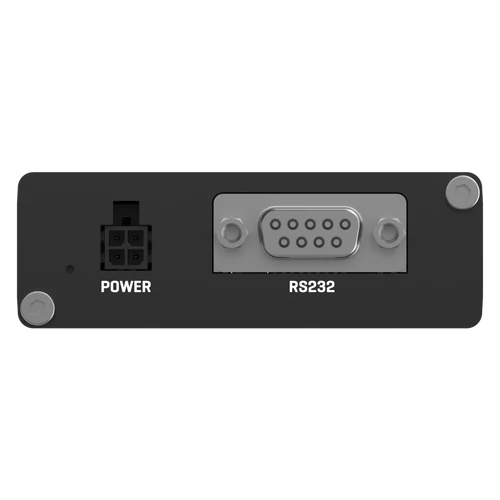

Serial
|
1 x RS232 |
|
Other
|
1 x Micro USB slave |
|

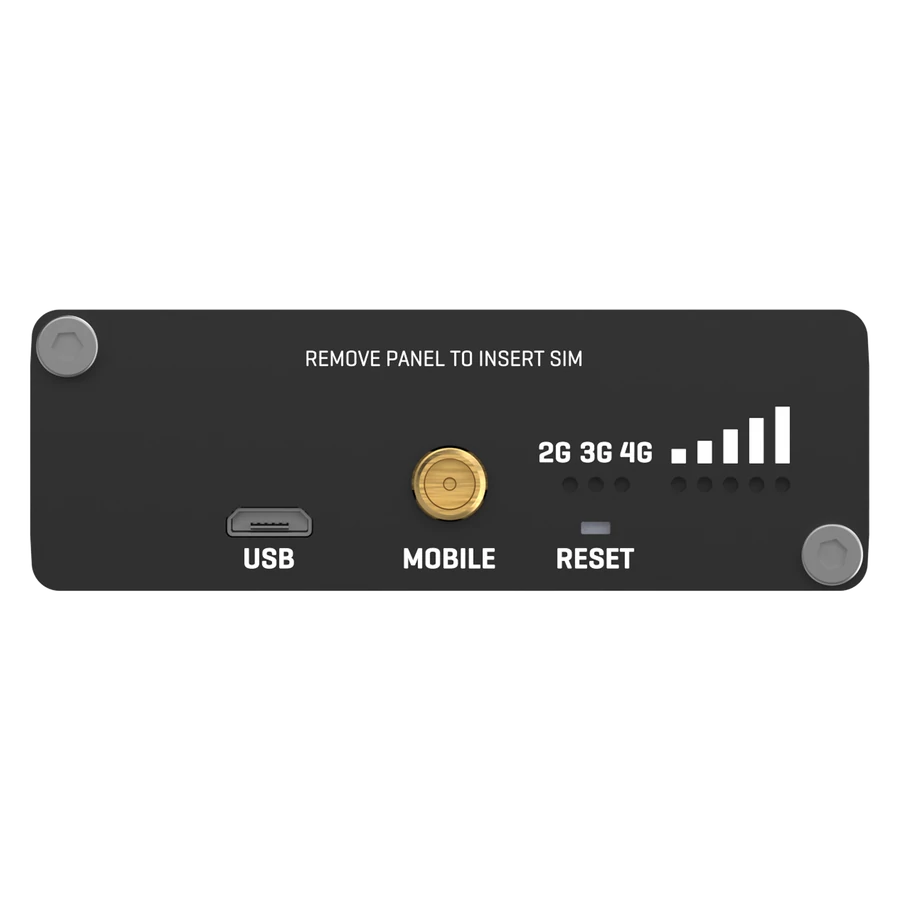

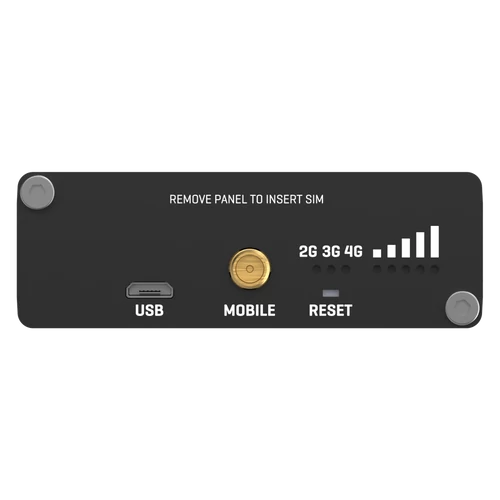

Status LEDs
|
3 x Connection type, 5 x Signal strength, 1 x Power |
|
Operating temperature
|
-40° C to 75° C |
|
Housing
|
Aluminium housing with DIN rail mounting option |
|
Dimensions
|
(W x H x D) 75 x 25 x 65 mm |
|
Weight
|
135 g |
|
Operating system
|
RutOS |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
|
Monitoring and Management
|
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
|
Connection monitoring
|
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Cloud solutions
|
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
|
Modbus
|
TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT |
|
Serial
|
Console, Over IP, Modem, NTRIP, Modbus |
