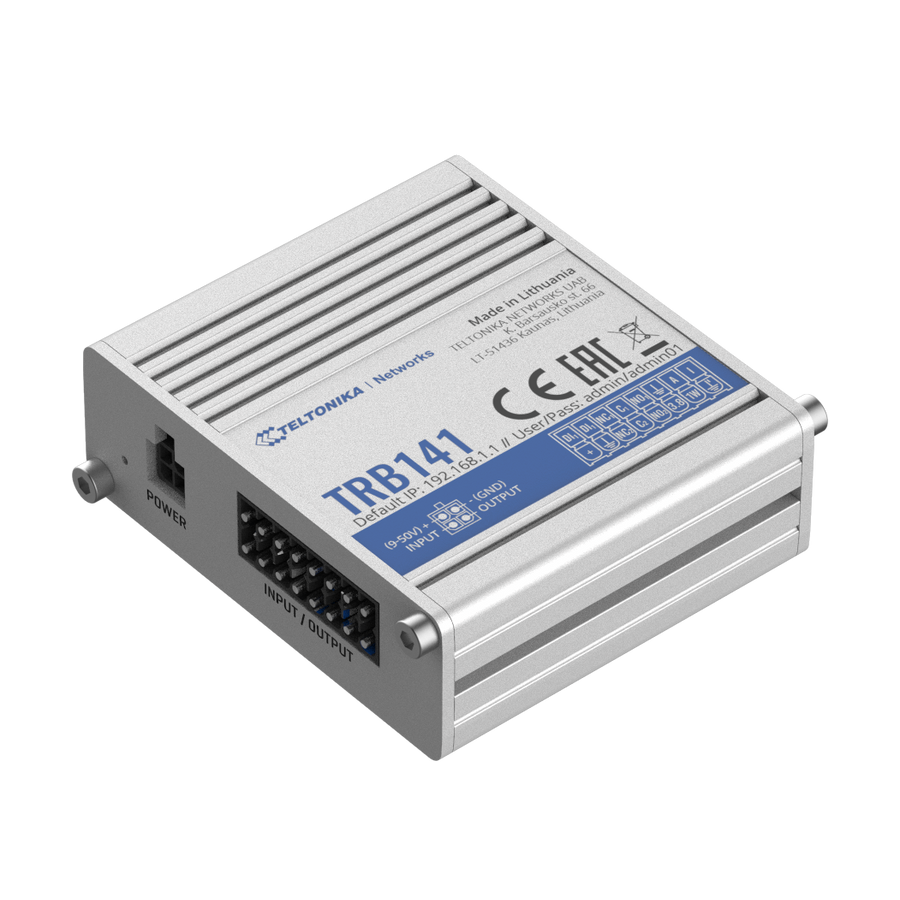

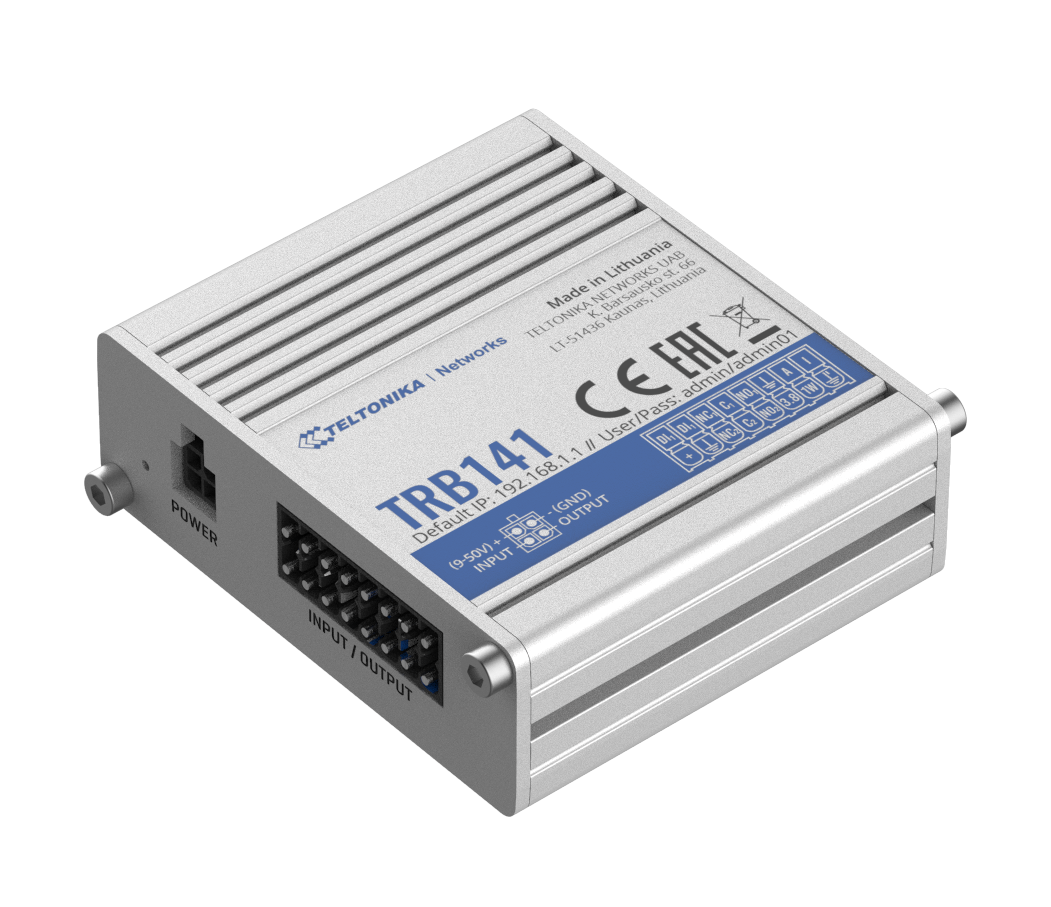

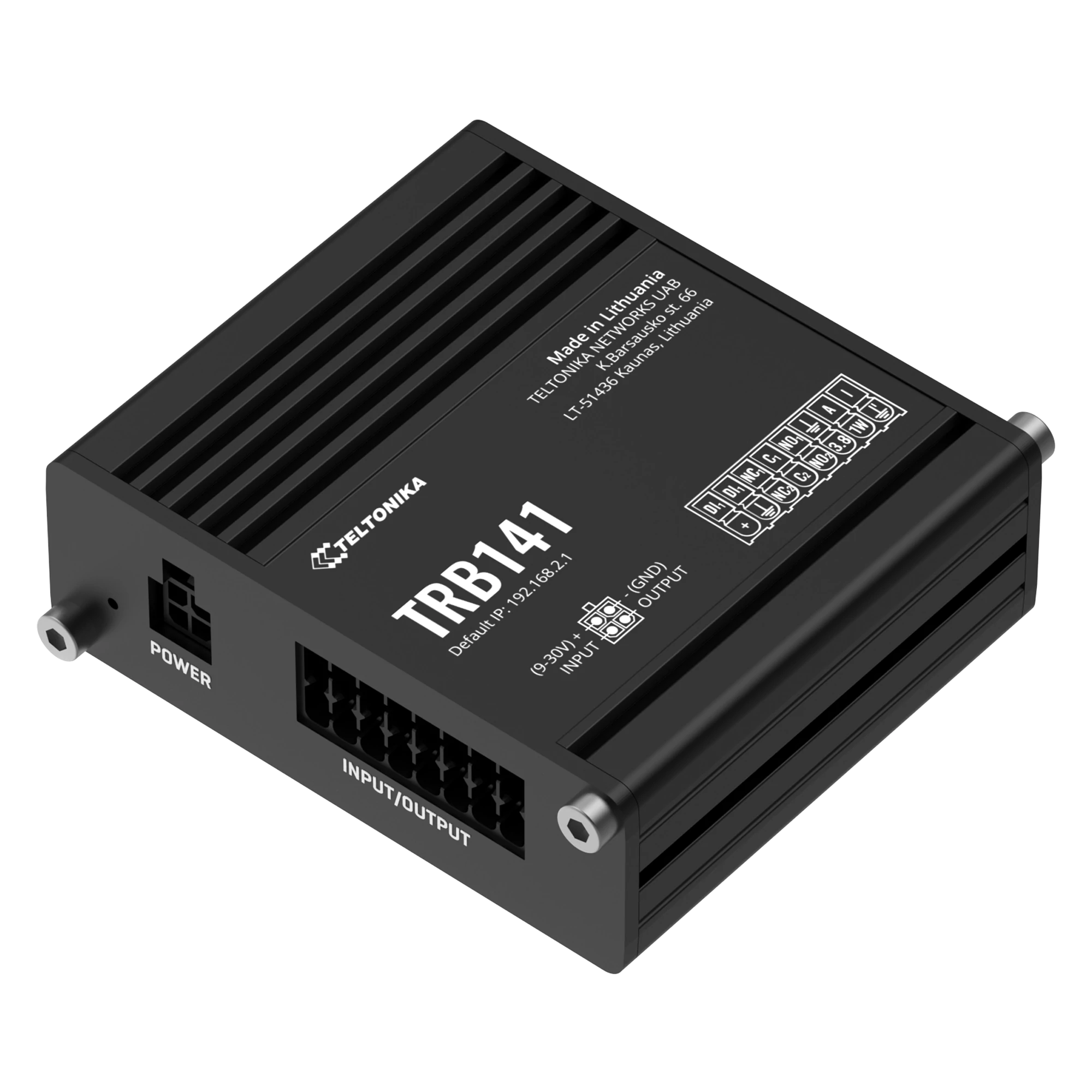

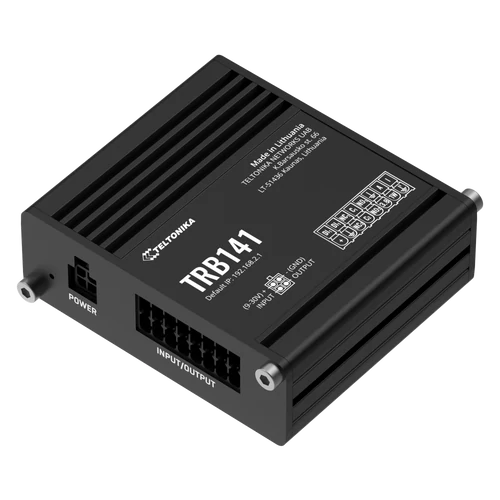

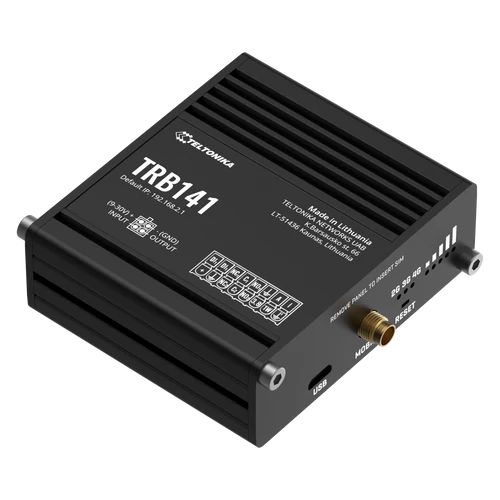

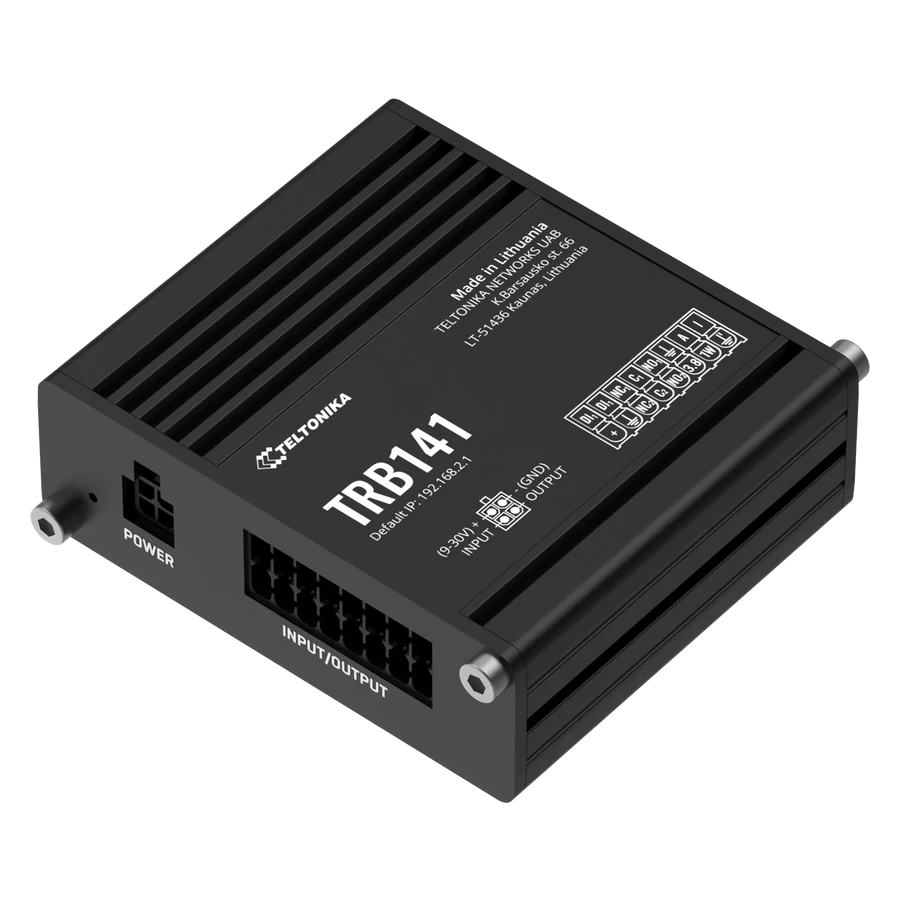

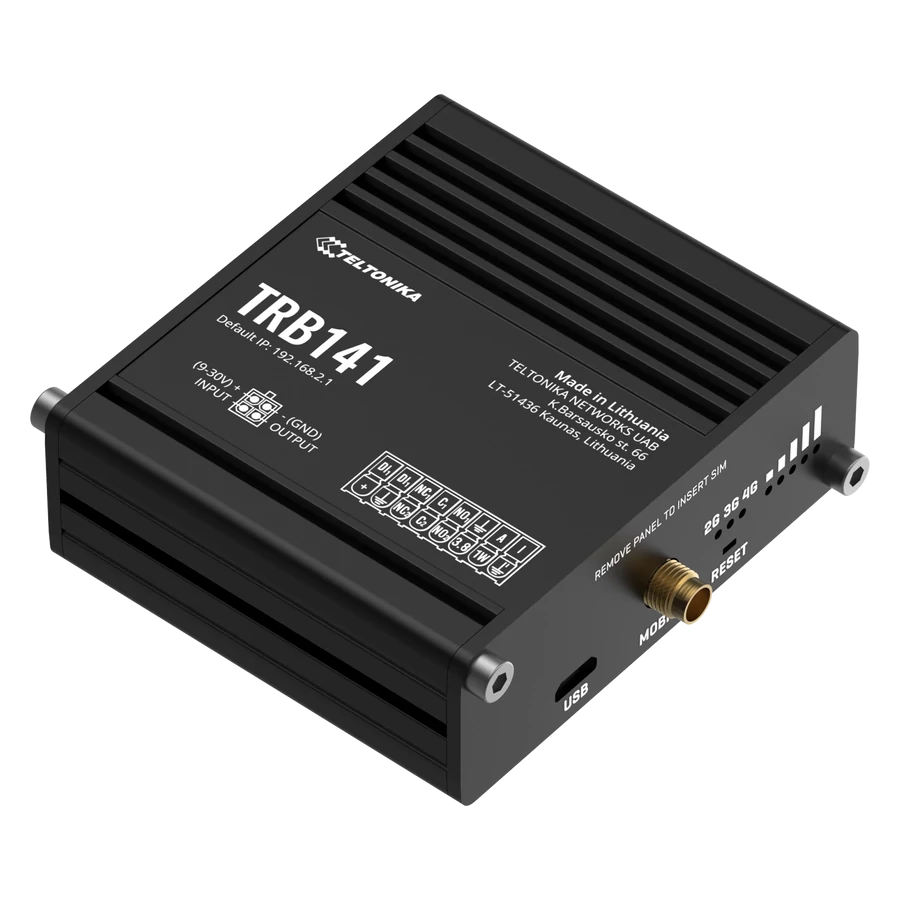

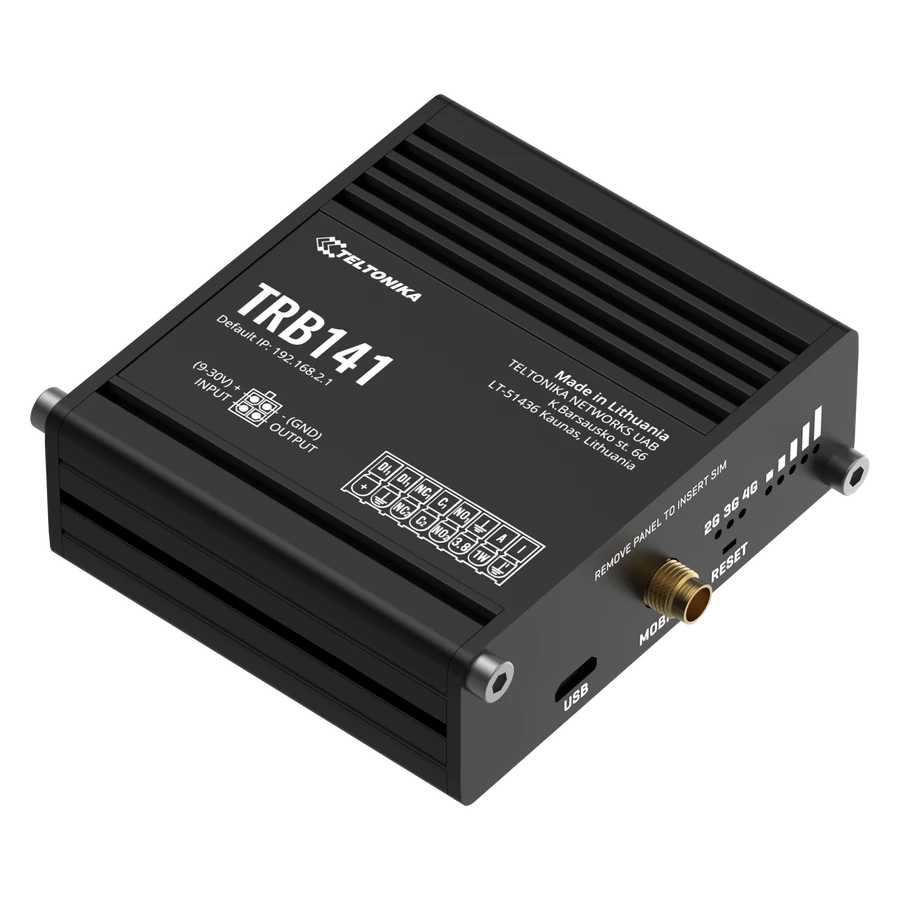

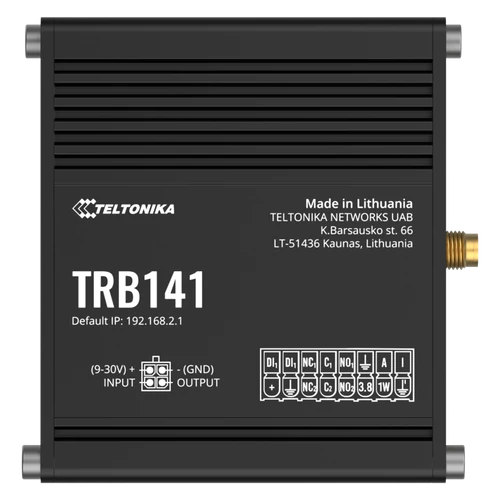

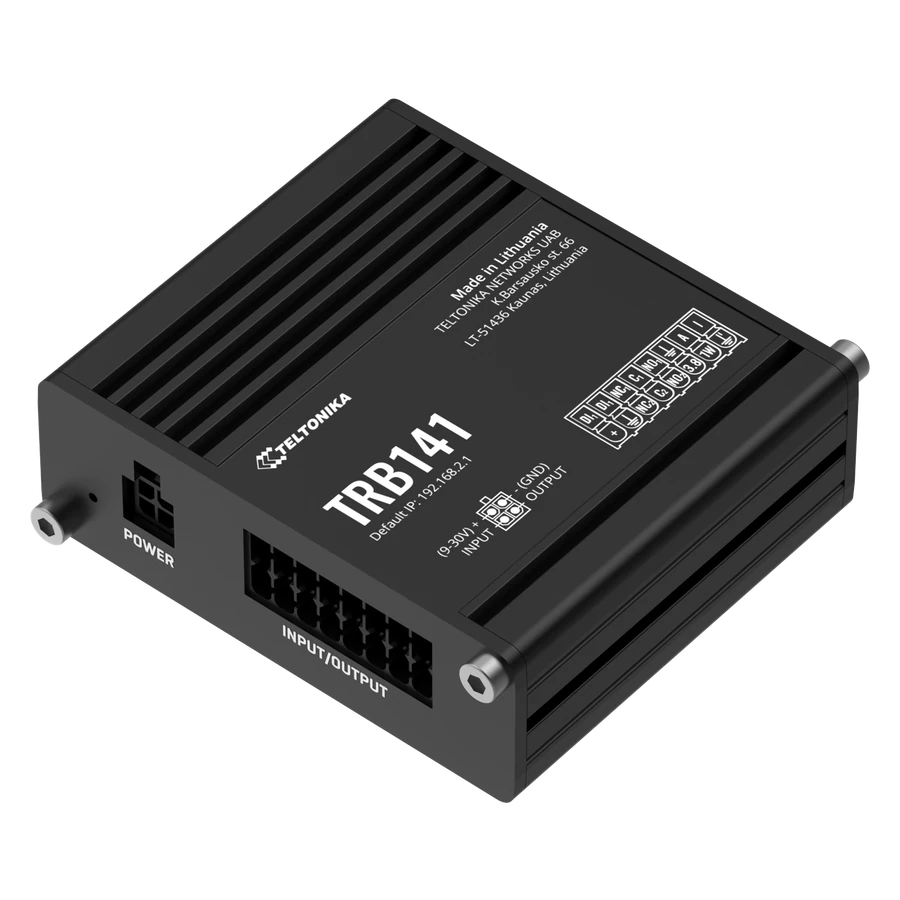

A Teltonika TRB141 egy kisméretű ipari LTE Cat 1 mobilinternet átjáró különféle bemenetekkel/kimenetekkel és Micro USB porttal. Ez az átjáró biztonságos és nagymértékben testreszabható a RutOS rendszernek köszönhetőe és tökéletesen választás olyan alkalmazásokhoz ahol több I/O-t is kezelni kell távoli elérésen keresztül.
| Tulajdonság | Érték |
|---|---|
| Mobile | 4G/LTE (Cat 1), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| Memory | 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace) |

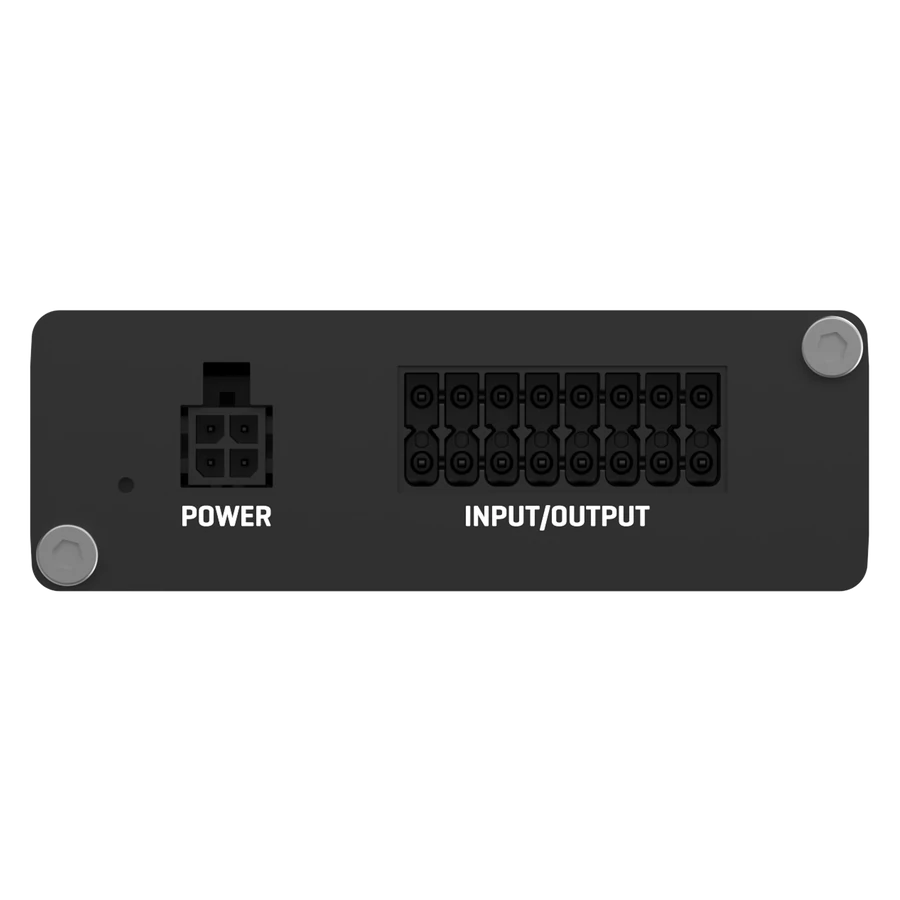

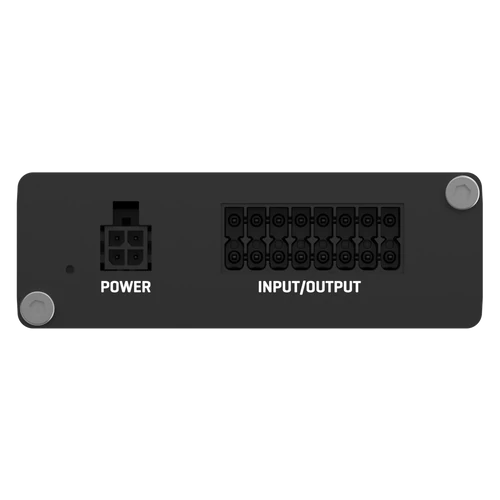

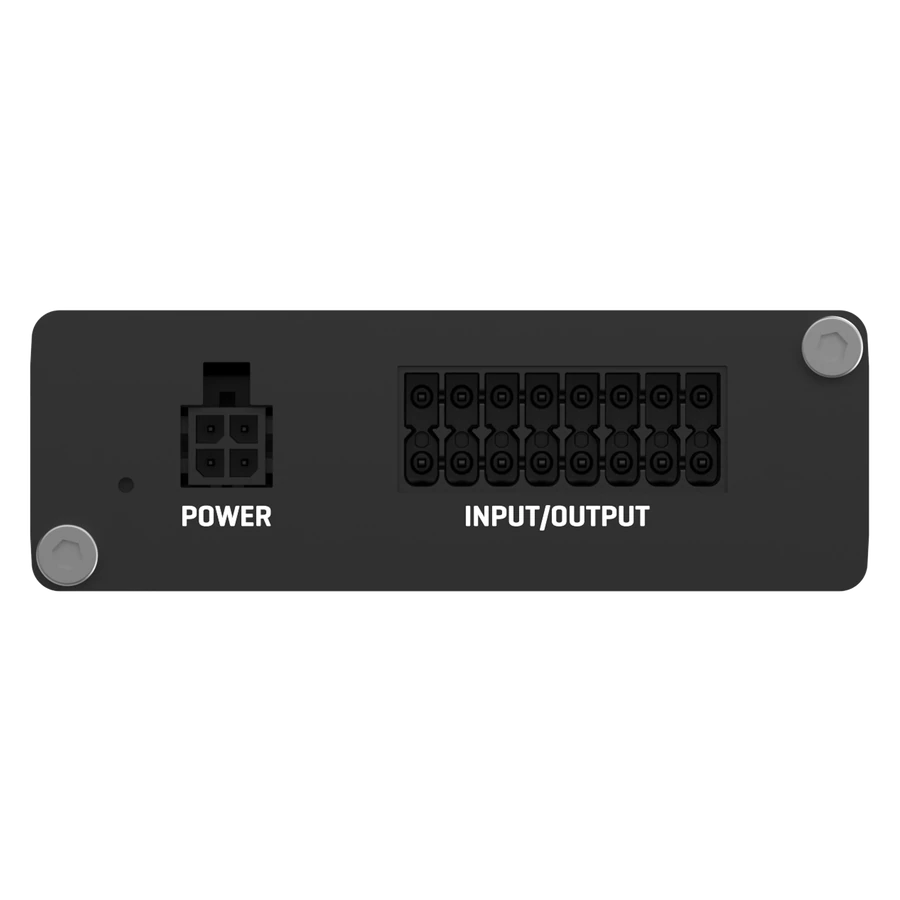

| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x Internal SIM holder (2FF) |
| Antenna connectors | 1 x SMA for mobile |

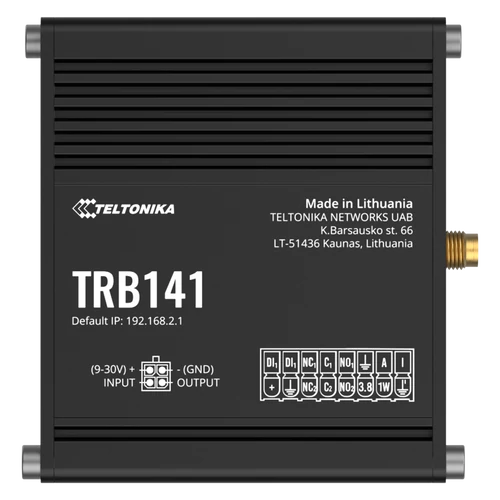

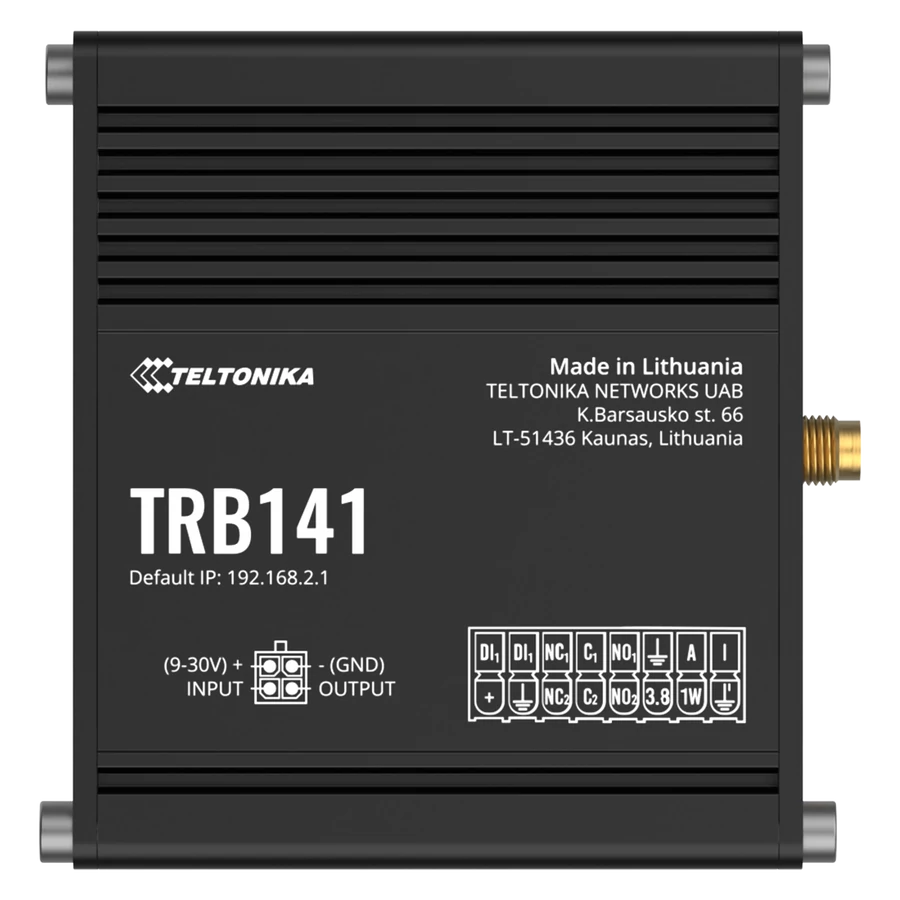

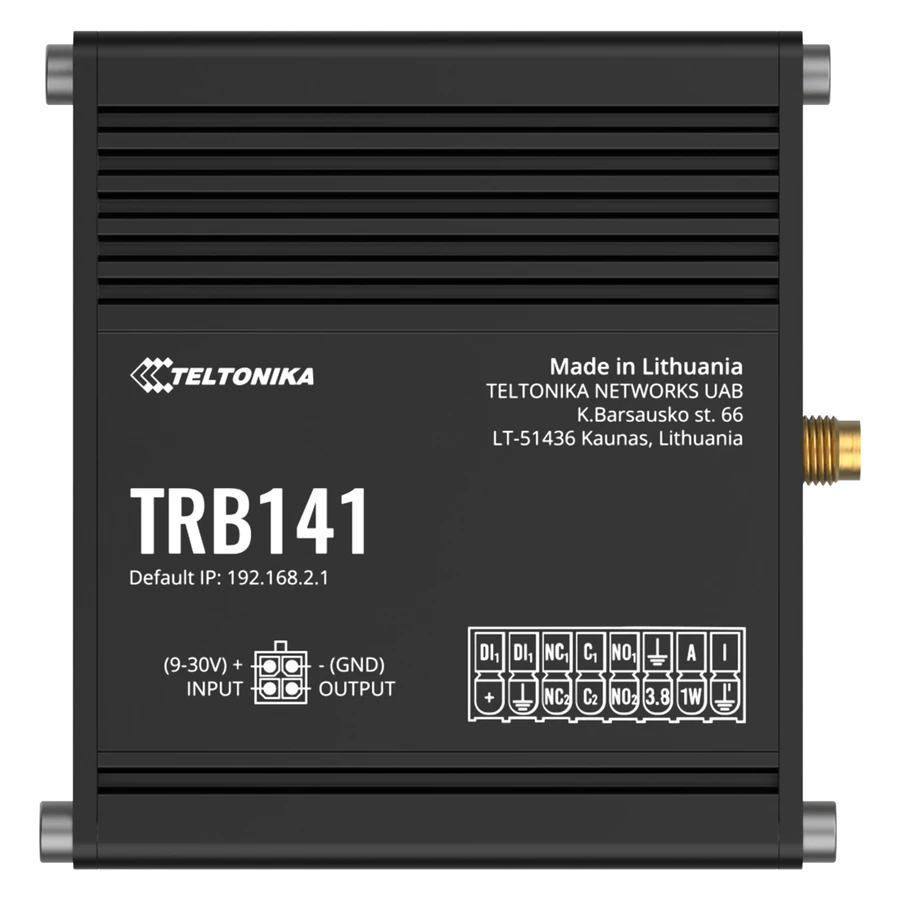

| Inputs/Outputs | On 4pin socket:2 x Digital input/Digital open collector output (configurable) |
| On 16pin socket | 1 x Isolated input, 1 x 1-Wire interface, 1 x Analog input (with 4-20mA capability), 1 x |
| Latching relay output, 1 x Non-latching relay output, 2 x Dry/Wet input (configurable) | |

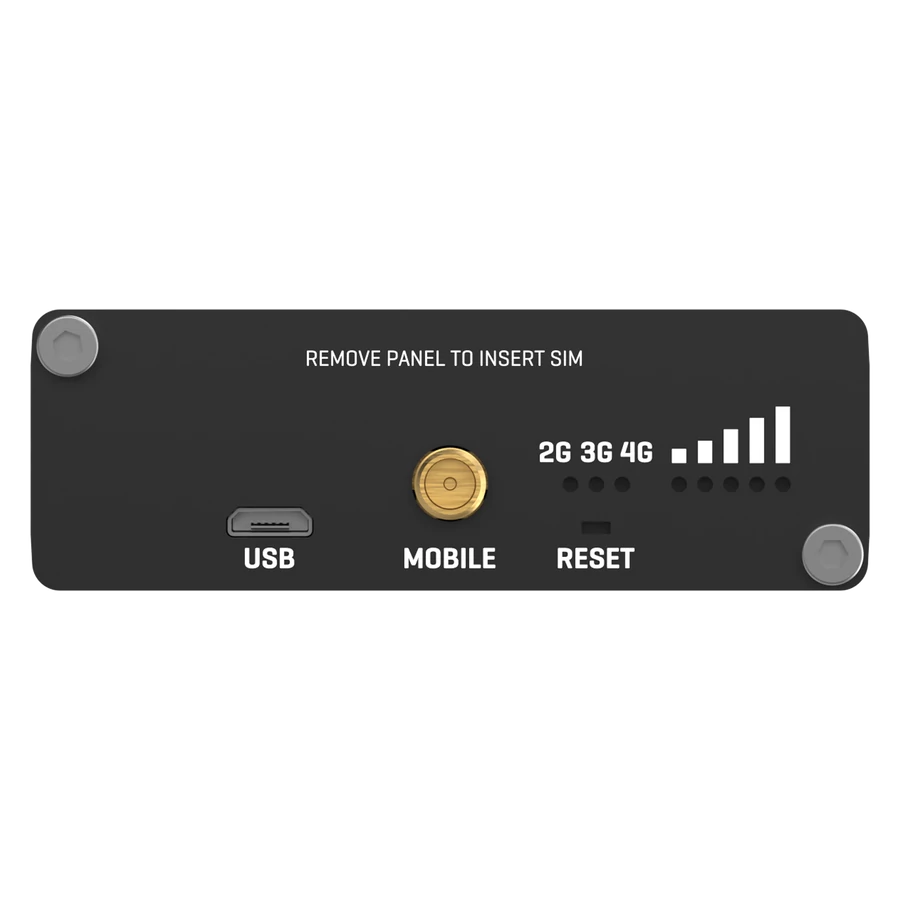

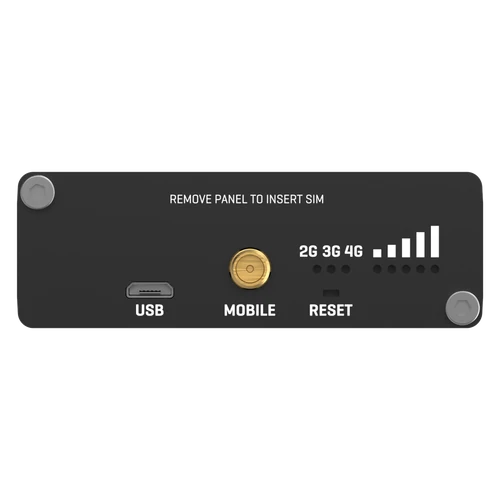

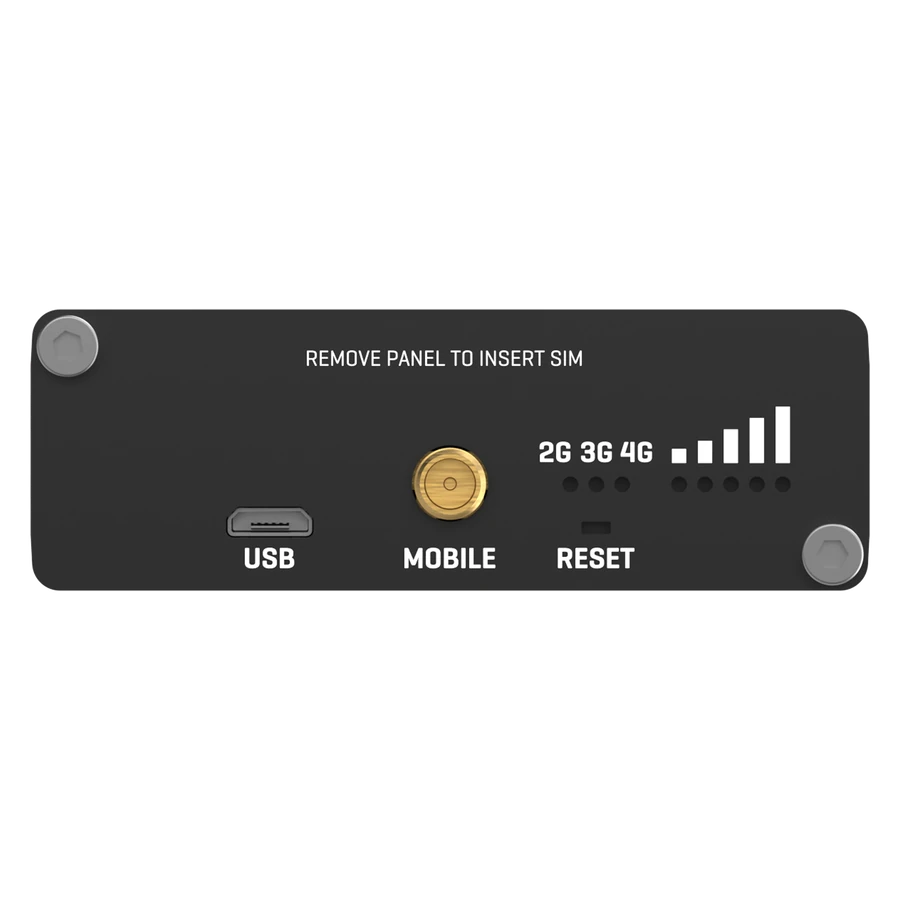

| Other | 1 x Micro USB slave |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) 75 x 25 x 65 mm | |
| Weight | 136 g |
| Operating system | RutOS |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, WEB filter, UPNP, Traffic Logging |
