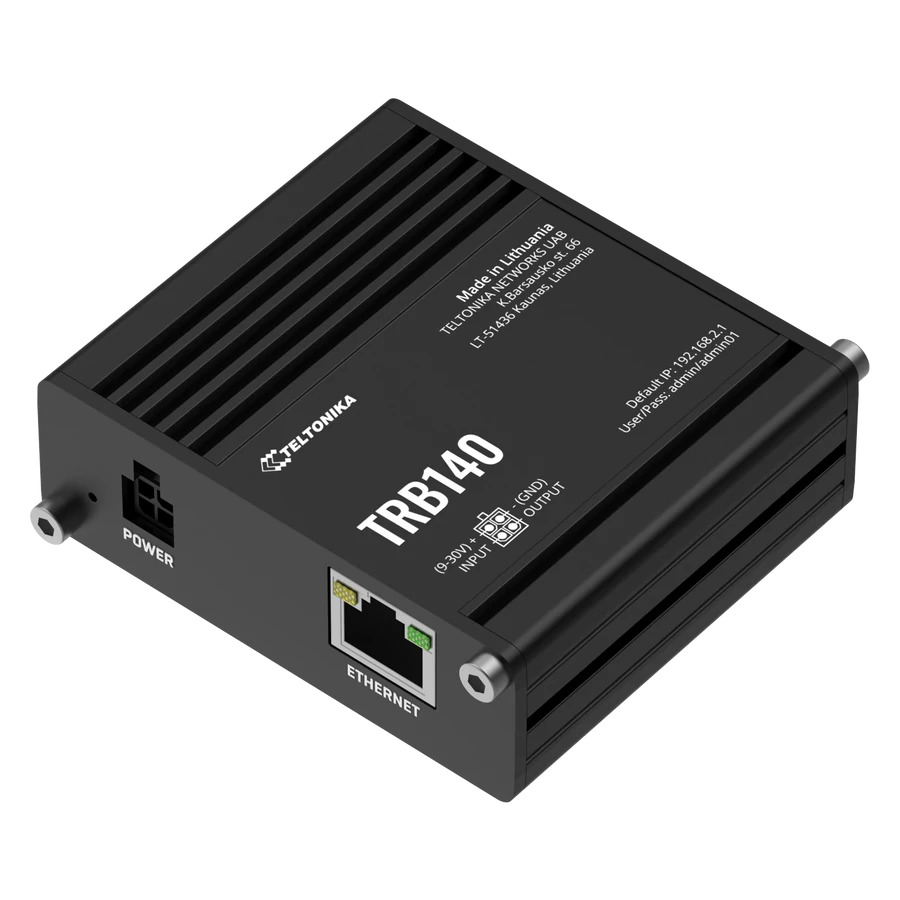

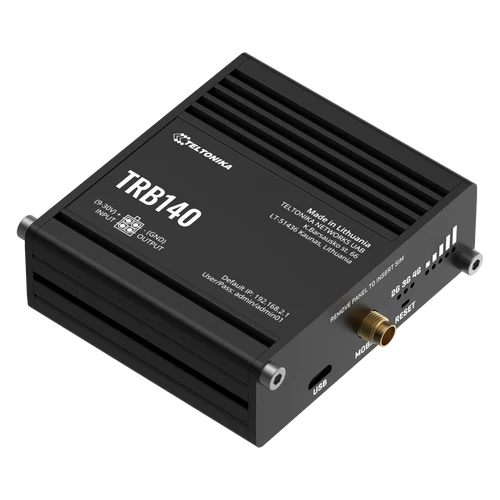

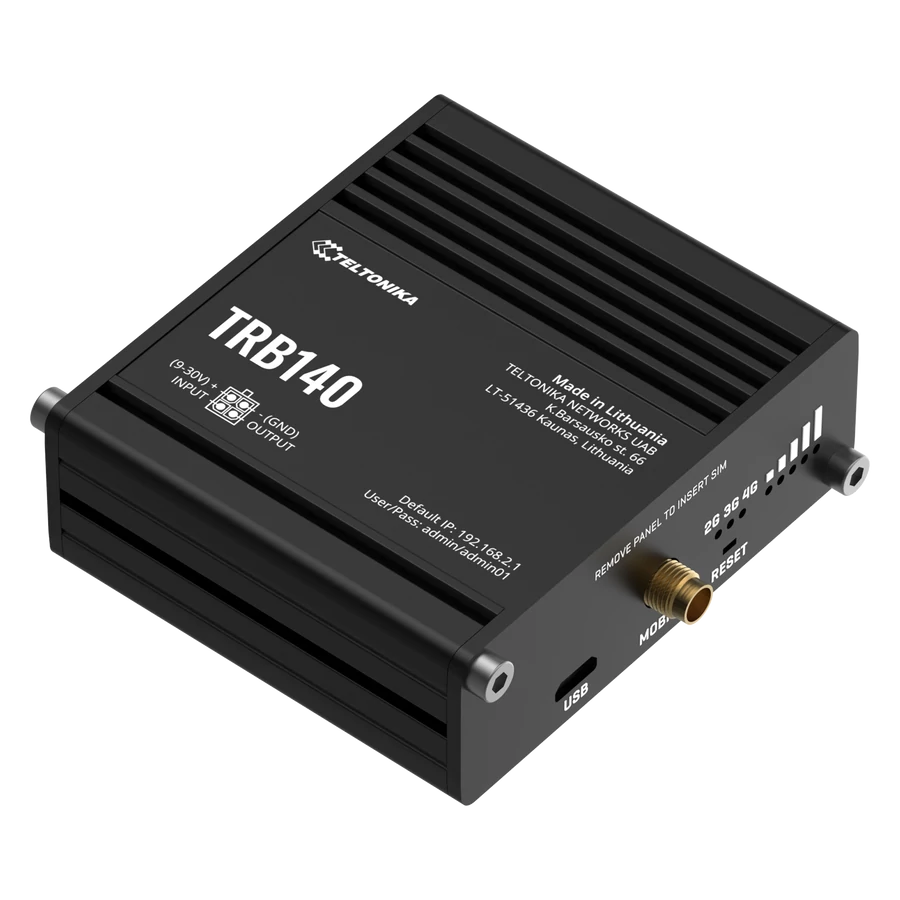

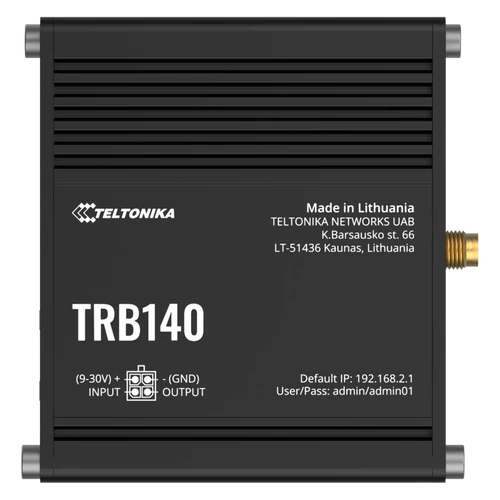

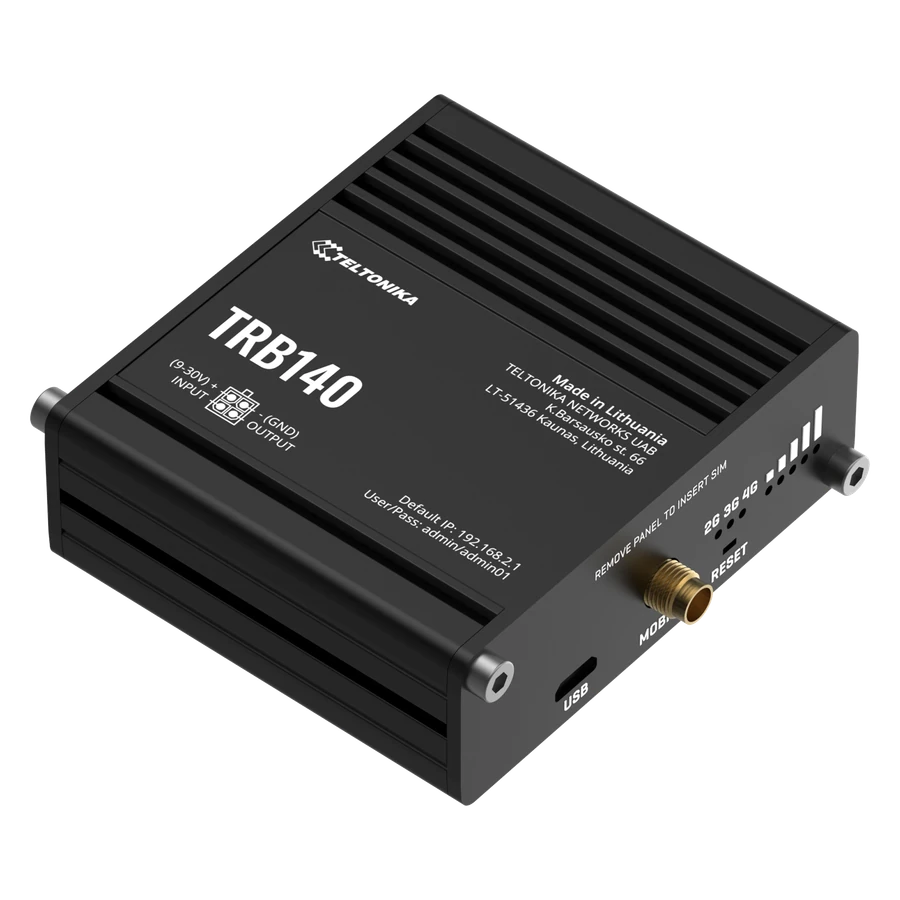

| Tulajdonság |
Érték |
|
Mobile
|
4G/LTE (Cat 4), 3G, 2G |
|
CPU. Qualcomm, ARM Cortex A7, 1.2 GHz
|
|
|
Memory
|
512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace) |
|

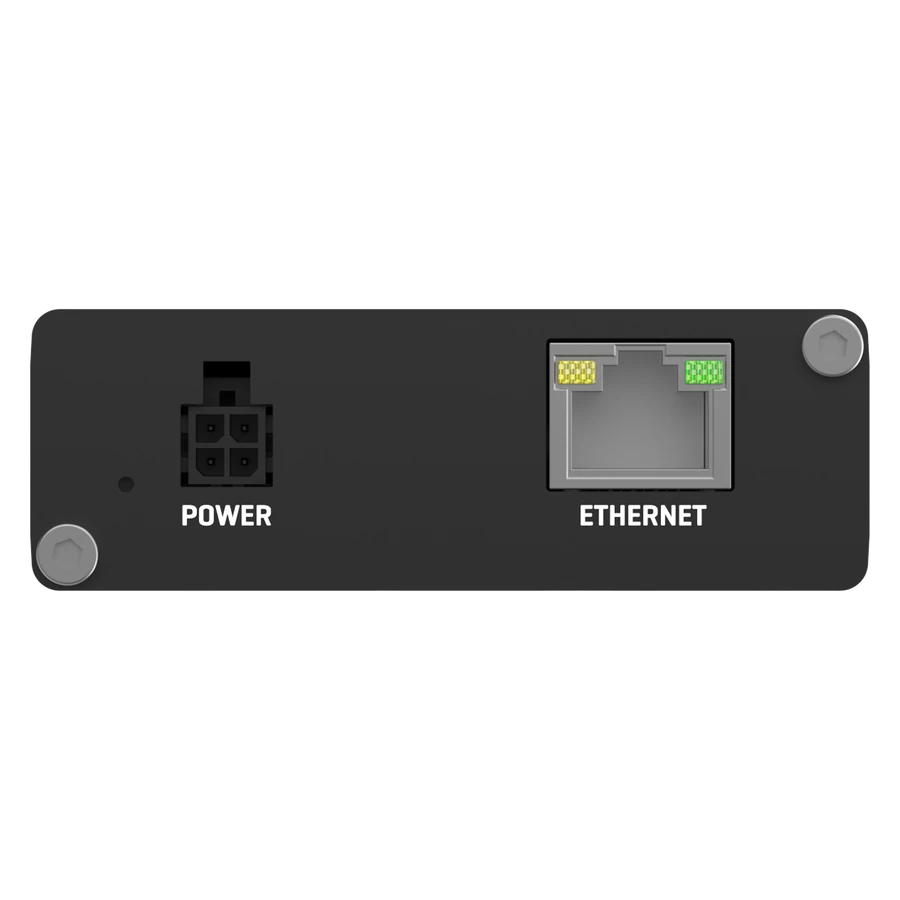

Powering option
|
4pin power socket, 9-30 VDC |
|

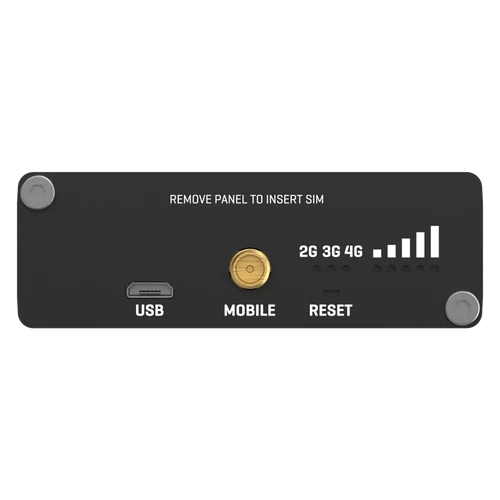

SIM
|
1 x Internal SIM holder (2FF) |
|

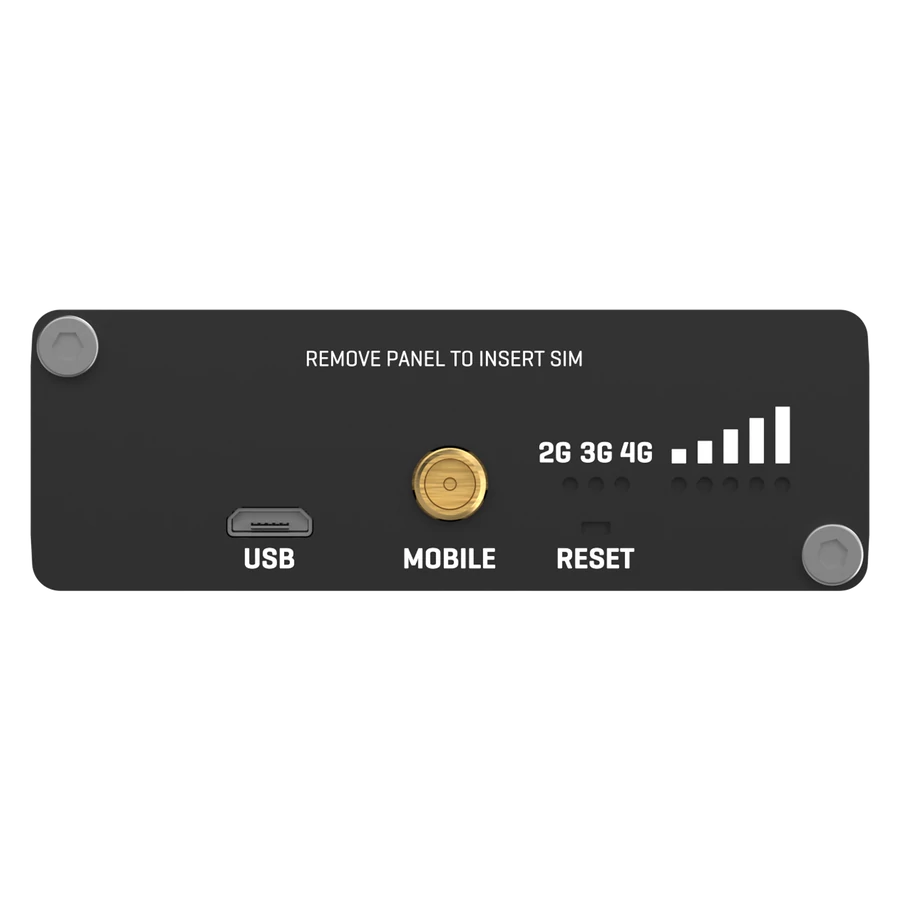

Antenna connectors
|
1 x SMA for mobile |
|

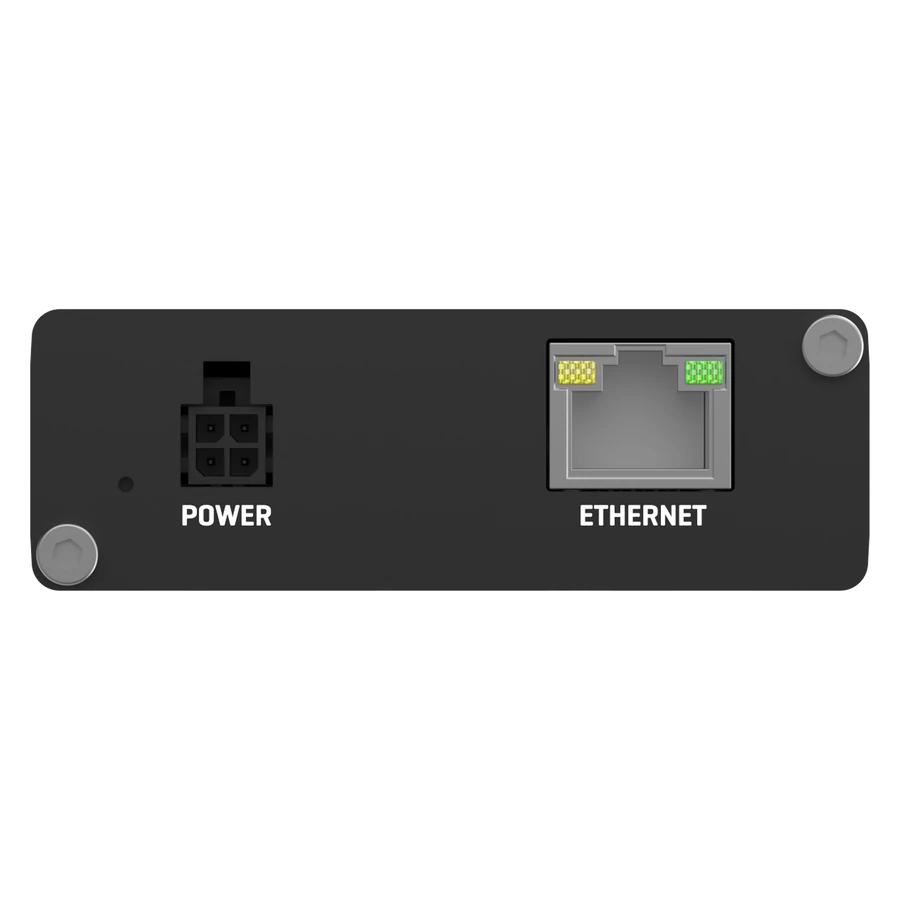

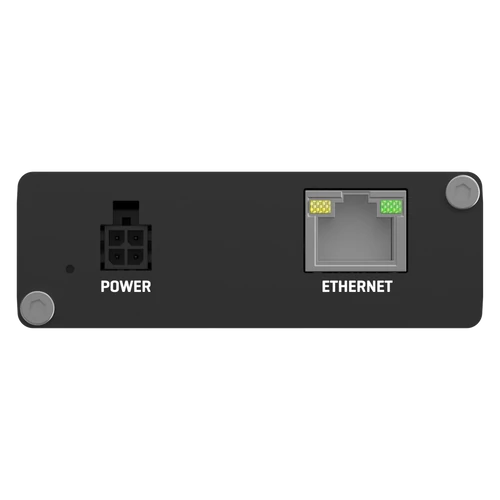

Ethernet
|
1 x 10/100/1000 Ethernet port |
|
Inputs/Outputs
|
On 4pin socket:2 x Digital input/Digital open collector output (configurable) |
|
Other
|
1 x Micro USB slave |
|
Status LEDs
|
3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
|
Operating temperature
|
-40 °C to 75 °C |
|

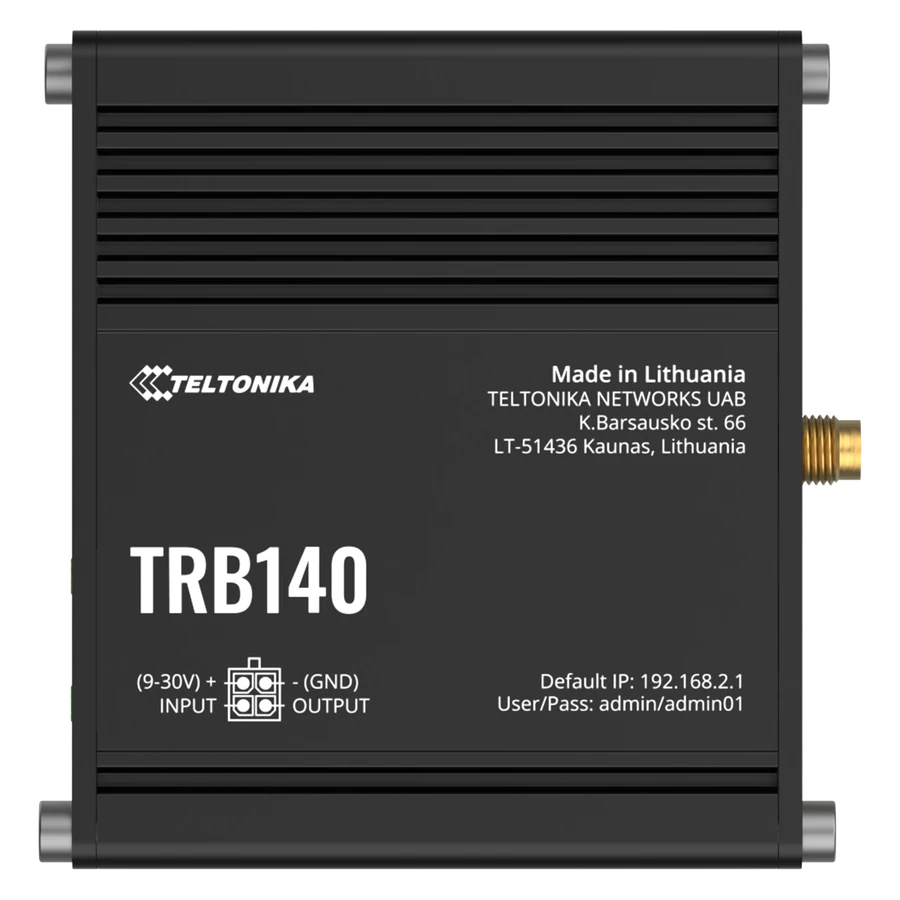

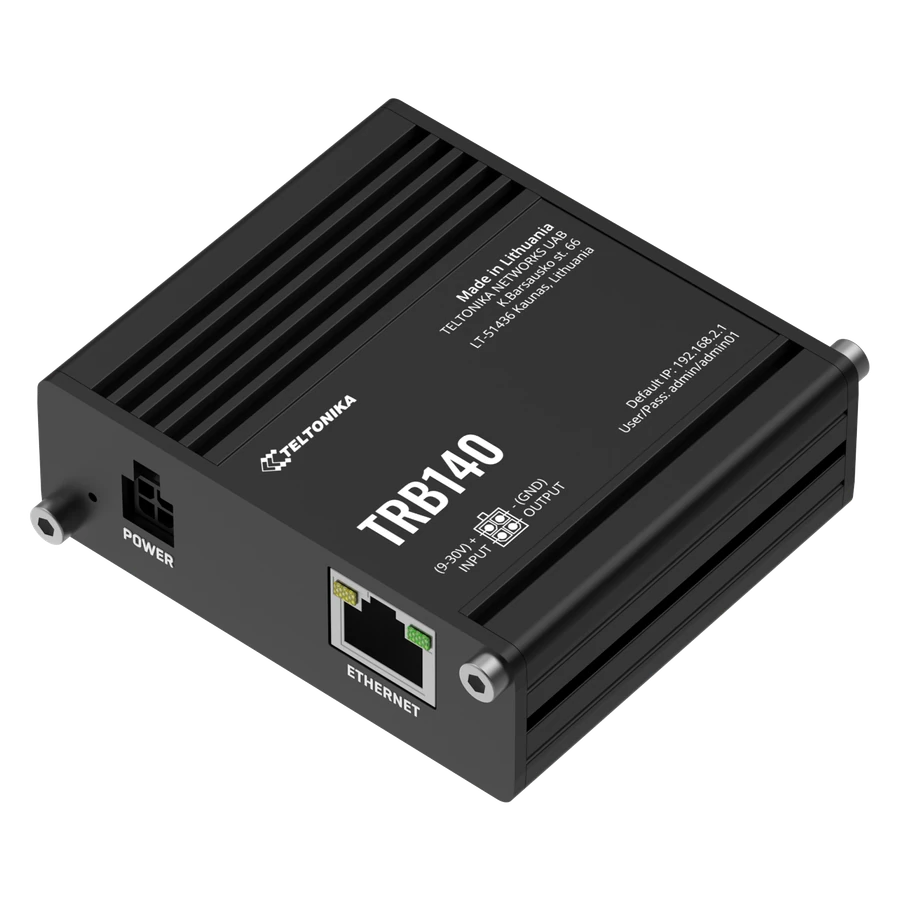

Housing
|
Aluminium housing with DIN rail mounting option |
|
Dimensions
|
(W x H x D) 75 x 25 x 65 mm |
|
Weight
|
134 g |
|
Operating system
|
RutOS |
|
Mobile features
|
Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
|
Firewall
|
Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, |
|
Unlimited firewall configuration via CLI
|
|
|
Security
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port |
|
scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
|
|
|
VPN and tunneling
|
OpenVPN, IPsec, GRE, PPTP, L2TP |
|
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
|
|
|
Connection monitoring
|
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Cloud solutions
|
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
|
SMS features
|
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS |
|
to HTTP, SMS to SMS, scheduled SMS, SMS autoreply
|
|
|
Services
|
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
