Leírás és Paraméterek

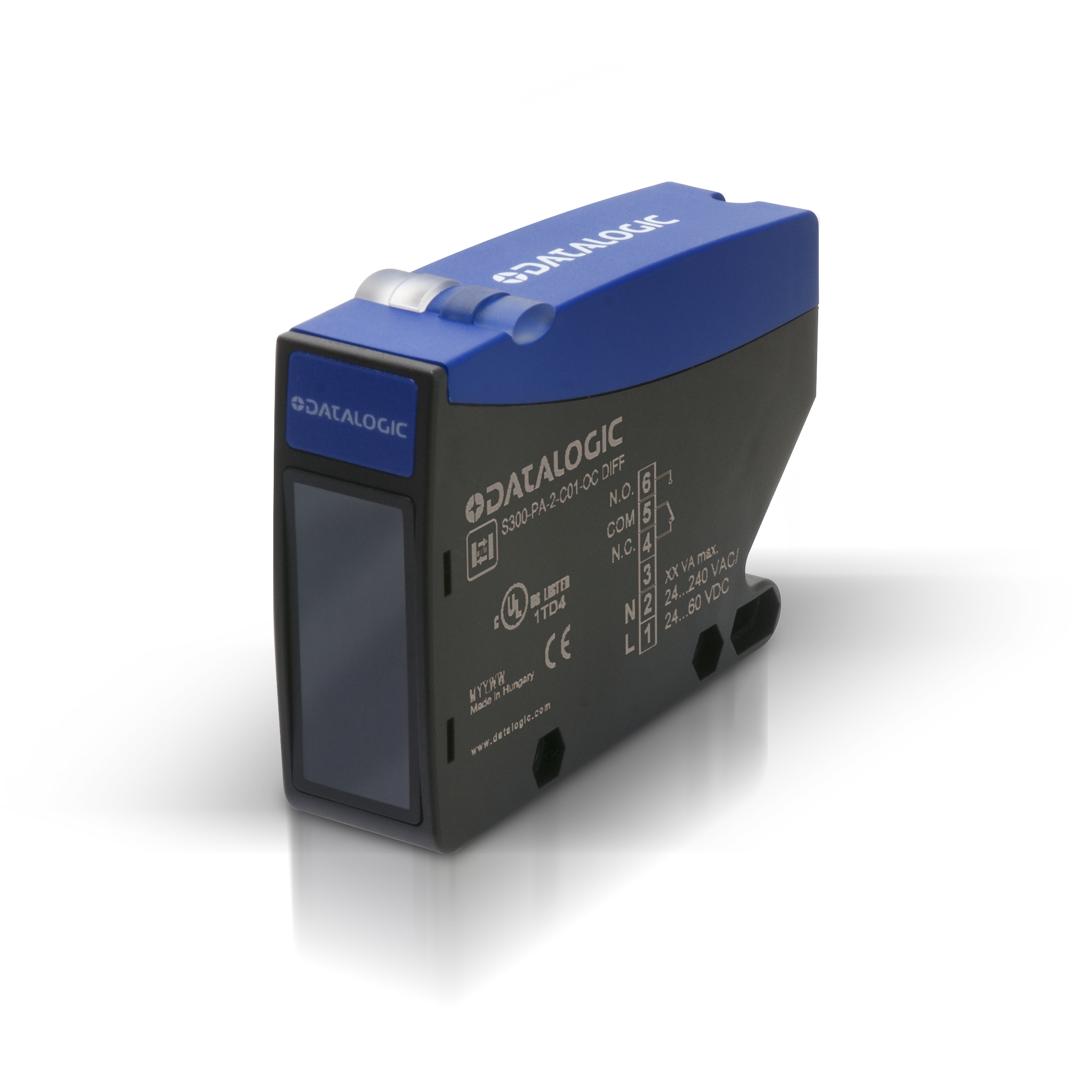

Datalogic S300-PA-1-A01-RX optikai érzékelő
A tengelyirányú optikával ellátott Datalogic 300 PA érzékelők.
- Ipari műanyag ház IP67 mechanikai védelemmel
- Sorkapocs csatlakozás
- Érzékenység-trimmer
- Tápfeszültség: 24...240 Vac/24...60 Vdc
Funkció | Prizmás optikai érzékelő |
Kimenet | Relé |
Retroreflective (on R2 reflector) | 0,1...15 m |
Power supply | 24...240 Vac/24...60 Vdc |
Output | electromechanical SPDT 250 Vac/30 Vdc (mod. S300...1) |
Approximate dimensions | 25x100x70 (mm) |
Housing material | PBT |
Mechanical protection | IP67 |
Ripple | 10% max |
Consumption (output current excluded) | 3 VA max. (mod. S300...1) |
Light emission | IR LED 880 nm |
Setting | sensitivity trimmer (mod. S300...A/B/C/F), DARK/LIGHT dip-switch (mod. S300...A/B/C/F/M) |
Indicators | yellow OUTPUT LED |
Output current | 3 A max |
Saturation voltage | 2,4 V max. |
Response time | 1 ms |
Switching frequency | 500 Hz |
Connection | terminal block |
Dielectric strength | 500 Vac, 1 min between electronics and housing |
Insulating resistance | >20 MΩ, 500 Vdc between electronics and housing |
Electrical protection | class 2 (mod. S300...2) |
Mechanical protection | IP67 (IEC/EN60529) |
Ambient light rejection | according to EN 60947-5-2 |
Vibrations | 0,5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6) |
Shock resistance | 11 ms (30 G) 6 shock for every axis (EN60068-2-27) |
Housing material | PBT 30% glass fiber-reinforced |
Lens material | frontal window and lens in PC |
Operating temperature | -25 ... 55 °C |
Storage temperature | -25 ... 70 °C |
Weight | 120 g (mod. S300...2), 130 g (mod. S300...1) |
