| Tulajdonság |
Érték |
|
Mobilinternet
|
4G/LTE (Cat 6) |
|
WiFi
|
802.11 b/g/n/ac (WiFi 5) |
|
Ethernet
|
5 x 10/100/1000 Mbps + 1 x SFP |
|
SIM
|
2 x SIM foglalat |
|
Mobile
|
4G/LTE (Cat 6), 3G |
|
CPU
|
Qualcomm, 4 x ARM Cortex A7, 717 MHz |
|
Memory
|
256 MBytes Flash, 256 MBytes RAM |
|
Powering option
|
4pin power socket, 9-50 VDC (main) |
|
4pin power socket, 9-50 VDC (redundant)
|
|
|
SIM
|
2 x External SIM holders (2FF) |
|
Antenna connectors
|
2 x SMA for mobile, 2 x RP-SMA for WiFi |
|
Ethernet
|
5 x 10/100/1000 Ethernet ports:1 x WAN (configurable as LAN), 4 x LAN |
|
WiFi
|
IEEE 802.11a/b/g/n/ac 2.4GHz/5GHz, Access point (AP), Station (STA) |
|
Other
|
1 x USB host, 1 x SFP, 1 x RS232 console |
|

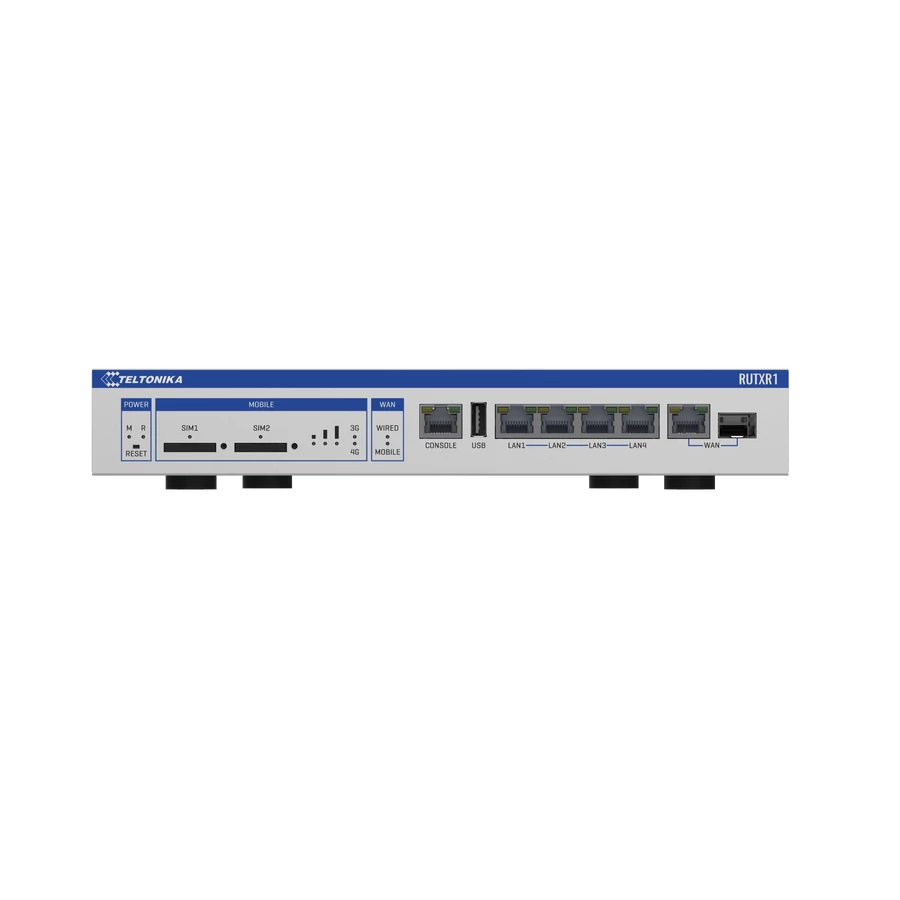

Status LEDs
|
2 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x SIM, 2 x Console, 10 x Ethernet, 2 x Power |
|
Operating temperaturere
|
-40 °C to 75 °C |
|
Housing
|
Full aluminium rack unit housing with grounding capability |
|
Dimensions (W x H x D) 272 x 44 x 123 mm
|
|
|
Weight
|
1050 g |
|
Operating system RutOS (OpenWrt based Linux OS)
|
|
|
Mobile features
|
Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
|
Network
|
Failover (Network backup), VLAN, QoS, Load Balancing |
|
Routing
|
Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules |
|
VPN and tunneling
|
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
|
Monitoring and management
|
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
|
Cloud solutions
|
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
|
Services
|
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
