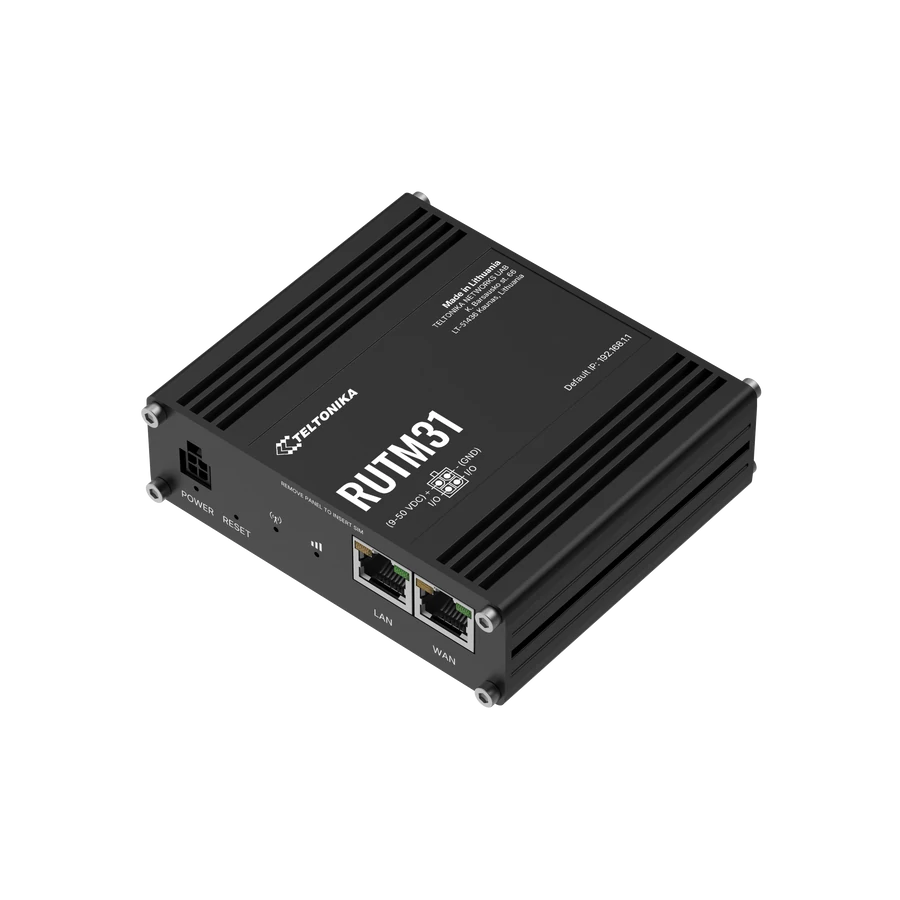

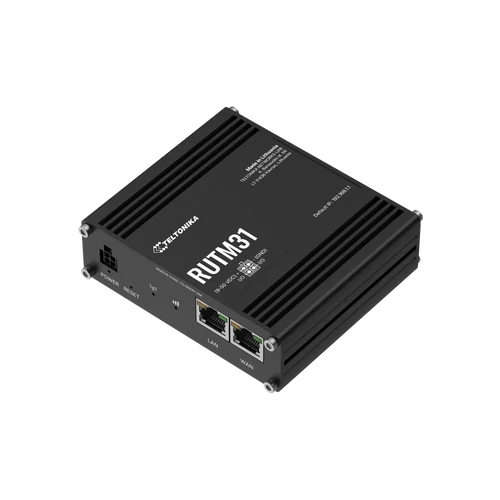

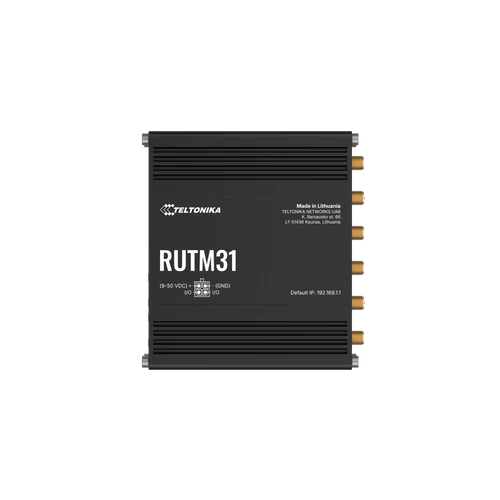

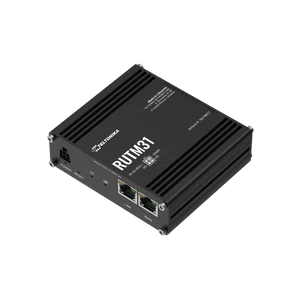

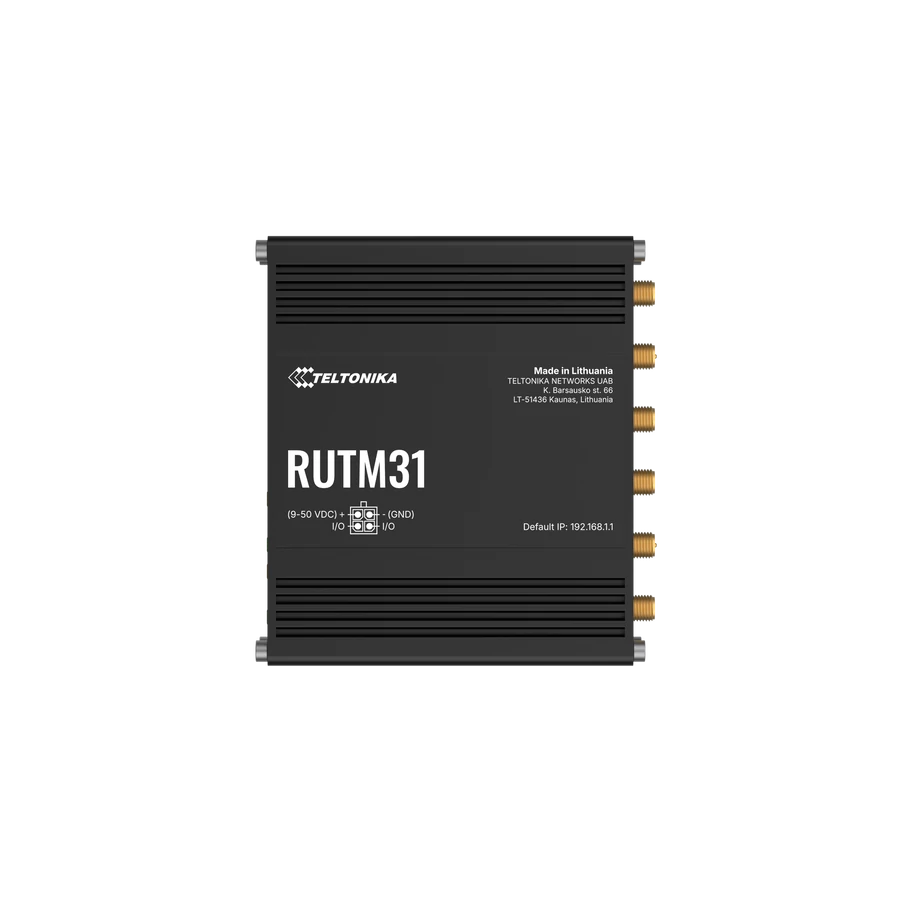

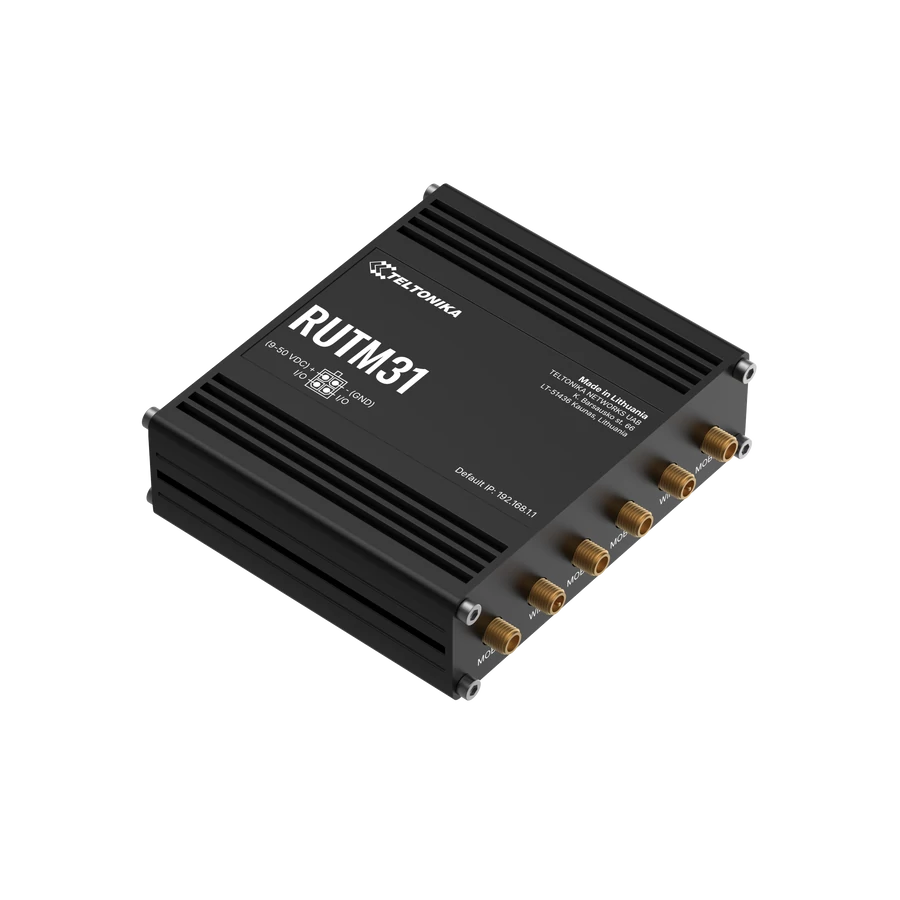

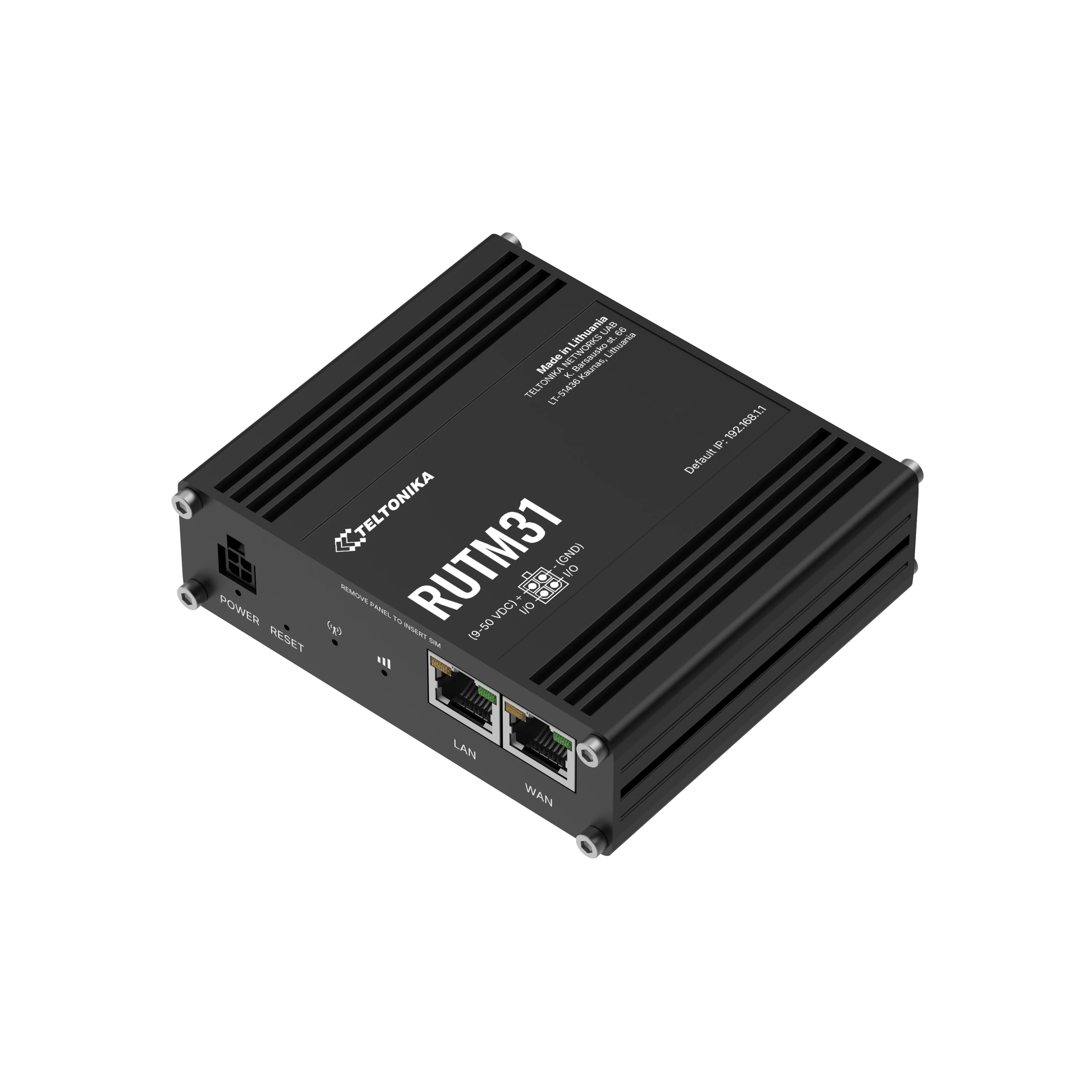

A RUTM31 egy költséghatékony, kompakt, dual-SIM-es, többhálózatos ipari 5G mobil router, amely adatintenzív alkalmazásokhoz biztosít kapcsolódást. Két Gigabit Ethernet porttal, kétsávos Wi-Fi-vel és automatikus átállással zökkenőmentes, megbízható teljesítményt nyújt. A 4G Cat 12-vel való visszamenőleges kompatibilitás teszi a RUTM31 5G routert intelligens, jövőbiztos választássá azoknak a vállalkozásoknak, amelyek nagy sebességű kapcsolódásra vágynak, alacsonyabb áron.
KÖLTSÉGHATÉKONY 5G: Kategóriájában vezető 5G sebesség verhetetlen áron
KAPCSOLÓDÁS: 5G, 4G Cat12, 3G
KÉT SIM KÁRTYA: Automatikus átállással, biztonsági WAN-nal és egyéb átkapcsolási forgatókönyvekkel
SA & NSA: Támogatja mindkét architektúrát az 5G infrastruktúra kihasználásához
Költséghatékony és Jövőbiztos 5G Mobil Router
A Teltonika RUTM31 egy ideális választás azoknak a vállalkozásoknak, akik költséghatékony, de nagy teljesítményű 5G routert keresnek. Ez a kompakt ipari eszköz megbízható kapcsolatot biztosít adatigényes alkalmazások számára, köszönhetően a két SIM-kártyának és a több hálózati támogatásnak.
A Gigabit Ethernet portok és a kétsávos Wi-Fi kiváló adatátviteli sebességet garantálnak. Az automatikus átállás (auto-failover) funkció révén a hálózati stabilitás mindig biztosított. Az LTE Cat 12 szabvánnyal való visszafelé kompatibilitás pedig okos és jövőbiztos befektetéssé teszi a RUTM31 5G routert, hozzáférést biztosítva a legújabb 5G technológiához kedvező áron.
Standard csomag*
RUTM31 router
18 W-os tápegység
4 db mobilantenna (forgatható, SMA male)
2 db Wi-Fi antenna (mágnesezhető, RP-SMA male, 1,5 m kábel)
Ethernet kábel (1,5 m)
SIM-adapter készlet
1 db imbuszkulcs
Gyors üzembe helyezési útmutató (QSG)
Csomagoló doboz
*A standard csomag tartalma az alapértelmezett rendelési kódtól függően eltérhet.
| Tulajdonság | Érték |
|---|---|
| Mobilinternet | 5G(SA/NSA), 4G/LTE (Cat 12) |
| WiFi | 802.11 b/g/n/ac (WiFi 5) |
| Ethernet | 2 x 10/100/1000 Mbps |
| SIM | 2 x SIM foglalat |
| Mobile Connectivity | |
| 5G | |
| Download Speeds | Up to 2/2.6 Gbps (4x4 MIMO) |
| Upload Speeds | Up to 1000/650 Mbps (2x2 MIMO) |
| 4G LTE | |
| Download Speeds | Cat 12, 600 Mbps (2x2 MIMO) |
| Upload Speeds | Cat 13, 150 Mbps |
| 3G | |
| Download Speeds | 42.2 Mbps |
| Upload Speeds | 11 Mbps |
| 3GPP Release | Release 15 |
| SIM Slots | Supports 2 SIM cards, with an optional eSIM requiring different hardware. |
| Automatic SIM Switching | Features include automatic switching for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, and SIM idle protection. |
| Status Monitoring | Comprehensive status details including IMSI, ICCID, operator, connection state, network type, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data usage, and cell information. |
| SMS Functionality | Offers full SMS management, including email to SMS, SMS to email, scheduled SMS, and auto-reply. |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages. |
| Block/Allow List | Allows for operator-based blocking or allowing by country or specific operators. |
| Band Management | Provides band lock and displays used band status. |
| SIM Idle Protection Service | Periodically switches to unused SIMs to prevent them from being blocked. |
| SIM PIN Code Management | Enables setting, changing, or disabling SIM card PINs. |
| APN | Features automatic APN configuration. |
| Bridge Mode | Creates a direct connection between the mobile ISP and a device on the LAN. |
| Passthrough Mode | Assigns the router's mobile WAN IP address to another device on the LAN. |
| Framed Routing | Supports an IP network behind the 5G User Equipment (UE). |
| Wireless (Wi-Fi) | |
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) |
| Data Rates | Up to 867 Mbps (Dual Band, MU-MIMO). |
| Security | Supports WPA2-Enterprise (PEAP, EAP-TLS with PKCS#12 certificates), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, and OWE. Includes AES-CCMP, TKIP, auto-cipher modes, client separation, disable auto-reconnect, and 802.11w Protected Management Frames (PMF). |
| SSID/ESSID | Features ESSID stealth mode. |
| Wi-Fi Users | Supports up to 150 simultaneous connections. |
| Wireless Connectivity Features | Includes Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (820.11v), and radio resource measurement (802.11k). |
| Wireless MAC Filter | Allows for allowlist and blocklist configurations. |
| Wireless QR Code Generator | Enables users to automatically join the network by scanning a QR code. |
| TravelMate | Forwards Wi-Fi hotspot landing pages to subsequent connected devices. |
| Ethernet | |
| WAN Port | 1 x 10/100/1000 Mbps port, compliant with IEEE 802.3, IEEE 802.3u, and 802.3az standards, with auto MDI/MDIX crossover support. |
| LAN Port | 1 x 10/100/1000 Mbps port, compliant with IEEE 802.3, IEEE 82.3u, and 802.3az standards, with auto MDI/MDIX crossover support. |
| Network | |
| Routing | Supports Static routing and Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), as well as Policy-based routing. |
| Network Protocols | Comprehensive support for TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, and Wake On Lan (WOL). |
| VoIP Passthrough Support | Includes H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets. |
| Connection Monitoring | Features Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection. |
| Firewall | Configurable with port forwarding, traffic rules, custom rules, and TTL target customization. |
| Firewall Status Page | Provides a view of all Firewall statistics, rules, and rule counters. |
| Ports Management | Allows viewing, enabling, disabling, auto-configuring, and changing transmission speeds of device ports. |
| Network Topology | Offers a visual representation of the network and connected devices. |
| Hotspot | Includes a captive portal with internal/external Radius server support, Radius MAC authentication, SMS authorization, SSO authentication, customizable landing pages, walled garden, user scripts, URL parameters, user groups, individual or group limitations, and user management. |
| Hotspot 2.0 | A Wi-Fi standard enabling seamless, secure, and automatic connection to trusted wireless networks. |
| DHCP | Supports static and dynamic IP allocation, DHCP relay, DHCP server configuration, and static leases with MAC wildcards. |
| QoS / Smart Queue Management (SQM) | Provides traffic priority queuing by source/destination, service, protocol, or port, along with WMM and 802.11e. |
| DDNS | Supports over 25 service providers, with manual configuration options for others. |
| DNS over HTTPS | Enables secure DNS resolution by routing DNS queries over HTTPS. |
| Network Backup | Offers Wi-Fi WAN, Mobile, VRRP, and Wired options, each usable as an automatic Failover. |
| Load Balancing | Balances Internet traffic across multiple WAN connections. |
| SSHFS | Allows mounting a remote file system via SSH protocol. |
| VRF Support | Provides initial virtual routing and forwarding (VRF) support. |
| Traffic Management | Offers real-time monitoring, wireless signal charts, and traffic usage history. |
| Security | |
| Firewall | Features preconfigured firewall rules (WebUI), unlimited CLI configuration, DMZ, NAT, NAT-T, and NAT64. |
| Attack Prevention | Includes DDOS prevention (SYN flood, SSH, HTTP/HTTPS) and port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks). |
| VLAN | Supports port and tag-based VLAN separation. |
| Mobile Quota Control | Allows for custom data limits for SIM cards. |
| WEB Filter | Provides a blacklist for blocking unwanted websites and a whitelist for specifying allowed sites. |
| Access Control | Offers flexible access control for SSH, Web interface, CLI, and Telnet. |
| TPM | Includes an identification and authentication module compliant with TPM 2.0 standard. |
| SSL Certificate Generation | Supports Let's Encrypt and SCEP certificate generation methods. |
| 802.1x | Functions as a port-based network access control client. |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, with 27 encryption methods available (e.g., DES-CBC 64, AES-256-CBC 256). |
| IPsec | Supports XFRM, IKEv1, and IKEv2, with 14 encryption methods (e.g., 3DES, AES256, AES256GCM16). |
| GRE | Includes GRE tunnel and GRE tunnel over IPsec support. |
| PPTP, L2TP | Client/Server instances can run simultaneously, with L2TPv3 and L2TP over IPsec support. |
| Stunnel | A proxy designed to add TLS encryption functionality to existing clients and servers. |
| DMVPN | A method for building scalable IPsec VPNs, with Phase 2, Phase 3, and Dual Hub support. |
| SSTP | SSTP client instance support. |
| ZeroTier | ZeroTier VPN client support. |
| WireGuard | WireGuard VPN client and server support. |
| Tinc | Offers encryption, authentication, and compression in its tunnels, with client and server support. |
| Tailscale | Provides speed, stability, and simplicity over traditional VPNs through encrypted point-to-point connections using the open-source WireGuard protocol. |
| Industrial Protocols | |
| OPC UA | Supports Client and Server modes with TCP connection type. |
| MODBUS | Supports Server and Client modes with TCP connection type. Includes custom registers for reading/writing to files and supports various data formats (8-bit, 16-bit, 32-bit float, INT, UINT, HEX, ASCII). |
| DATA TO SERVER | Supports HTTP(S), MQTT, and Azure MQTT protocols. Enables extracting parameters from multiple sources and protocols to send to a single server, with custom LUA scripting capability. |
| MQTT Gateway | Allows sending commands and receiving data from a MODBUS Server through an MQTT broker. |
| DNP3 | Supports Station and Outstation modes with TCP connection. |
| DLMS/COSEM | Supports DLMS as a standard protocol for utility meter data exchange, with Client mode and TCP connection type. |
| API | |
| Teltonika Networks Web API (beta) | Provides a set of configurable API endpoints to retrieve or change data. |
| Monitoring & Management | |
| WEB UI | Accessible via HTTP/HTTPS, providing status, configuration, firmware updates, CLI access, troubleshooting, multiple event log servers, firmware update availability notifications, and various system logs. |
| FOTA | Supports firmware updates from a server with automatic notifications. |
| SSH | Supports SSH (v1, v2). |
| SMS | Allows SMS status and configuration management. |
| Call | Enables control actions like reboot, status check, mobile data on/off, output on/off, and Wi-Fi on/off via calls. |
| Allows receiving email message status alerts for various services. | |
| TR-069 | Compatibility with various TR-069 platforms like OpenACS, EasyCwmp, and GenieACS. |
| MQTT | Includes MQTT Broker and MQTT publisher functionalities. |
| SNMP | Supports SNMP (v1, v2, v3), SNMP Trap, and brute force protection. |
| JSON-RPC | Management API over HTTP/HTTPS. |
| MODBUS | MODBUS TCP status/control. |
| RMS | Integrated with Teltonika Remote Management System (RMS). |
| IoT Platforms | |
| ThingWorx | Monitors WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, and Mobile Network Type. |
| Cumulocity - Cloud of Things | Monitors Device Model, Revision, Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, and Signal Strength. Supports reboot and firmware upgrade actions. |
| Azure IoT Hub | Can be configured with Data to Server to send parameters to the cloud. Supports Direct methods for RutOS API calls and Plug and Play integration for zero-touch provisioning. |
| AWS IoT Core | Utility to interact with the AWS cloud platform, with Jobs Support for calling the device's API. |
| System Characteristics | |
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc. |
| RAM | 256 MB, DDR3. |
| FLASH Storage | 16 MB serial NOR flash, 256 MB serial NAND flash. |
| Firmware / Configuration | |
| WEB UI | Allows firmware updates from file, checking firmware on server, configuration profiles, and configuration backup. |
| FOTA | Supports firmware updates. |
| RMS | Enables firmware/configuration updates for multiple devices simultaneously. |
| Keep Settings | Allows firmware updates without losing the current configuration. |
| Factory Settings Reset | Restores all system settings to the default manufacturer's configuration. |
| Firmware Customization | |
| Operating System | RutOS (OpenWrt based Linux OS). |
| Supported Languages | Busybox shell, Lua, C, C++. |
| Development Tools | SDK package with a build environment is provided. |
| GPL Customization | Enables creating custom, branded firmware and web page applications. |
| Input / Output | |
| Configurable I/O | 2 x Configurable digital Inputs/Outputs on a 4-pin power connector. Digital Input:0-6V (logic low), 8-50V (logic high). Digital Output:Open collector, max 30V, 300mA. |
| Events | Can trigger events via Email, RMS, and SMS. |
| I/O Juggler | Allows setting I/O conditions to initiate events. |
| Power | |
| Connector | 4-pin industrial DC power socket. |
| Input Voltage Range | 9 - 50 VDC, with reverse polarity protection and voltage surge/transient protection. |
| PoE (Passive) | Possible to power up through the LAN port (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards), Mode B, 9-50 VDC. |
| Power Consumption | Idle:<3.9 W, Max:<9 W. |
| Physical Interfaces | |

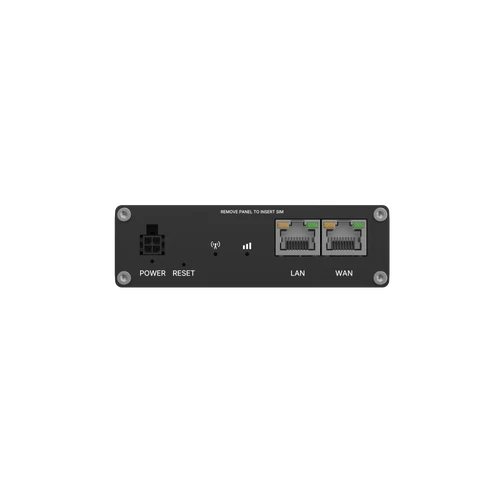

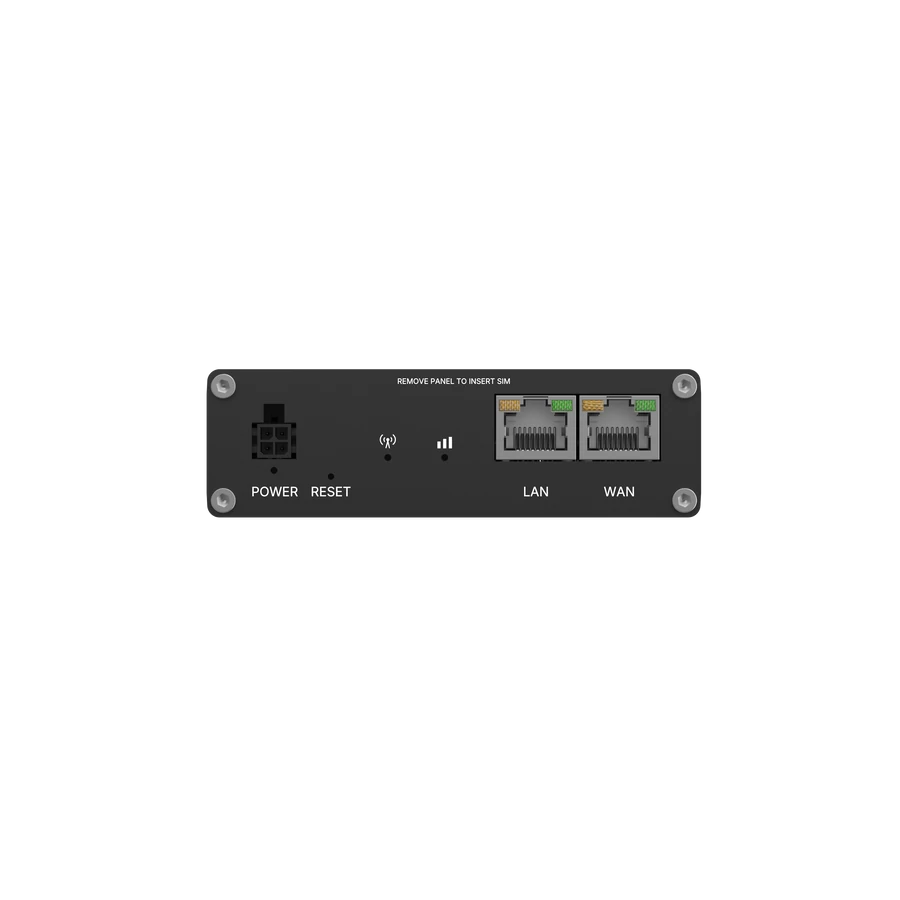

| Ethernet | 2 x RJ45 ports, 10/100/1000 Mbps. |
| I/O’s | 2 x Configurable digital I/O on a 4-pin power connector. |
| Status LEDs | 1 x Mobile connection type (RGB), 1 x Mobile connection strength (RGB), 4 x LAN status, 1 x Power. |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holders; eSIM is optional and requires different hardware. |
| Power | 1 x 4-pin power connector. |

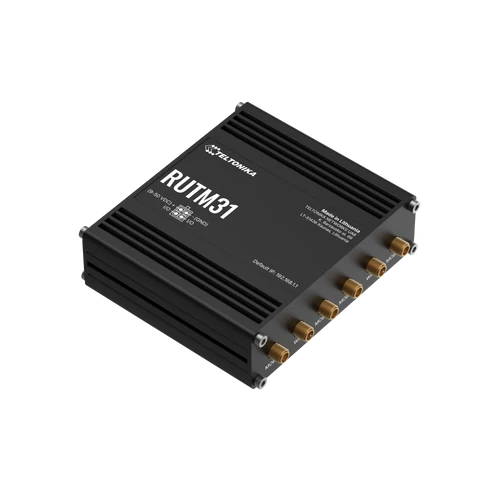

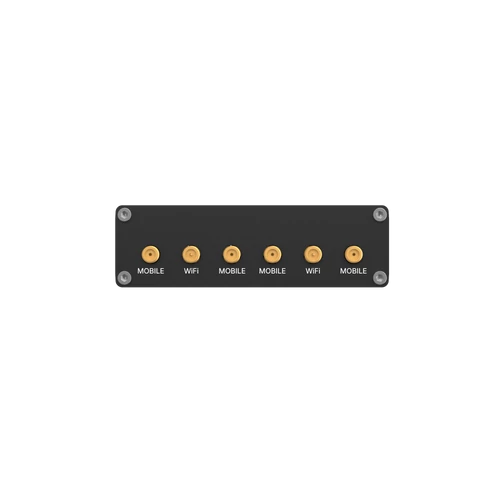

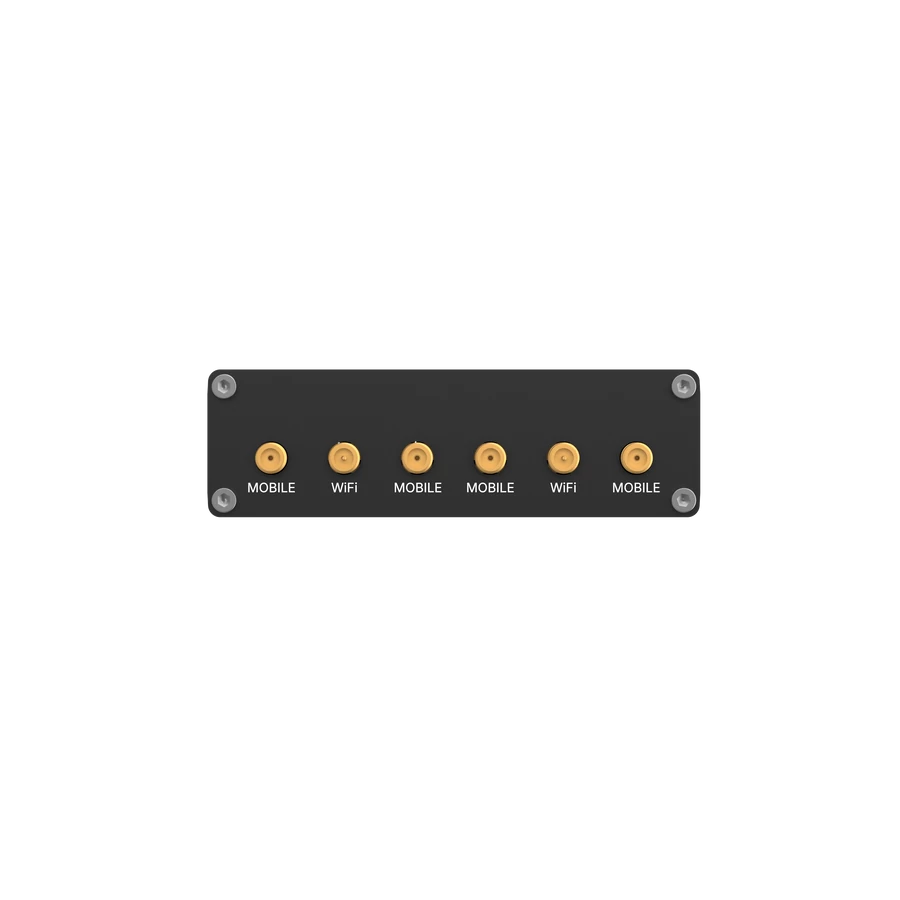

| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi. |
| Reset | Reboot/User default reset/Factory reset button. |
| Physical Specification | |
| Casing Material | Anodized aluminum housing and panels. |
| Dimensions (W x H x D) | 100 x 30 x 93.7 mm. |
| Weight | 319 g. |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit). |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C. |
| Operating Humidity | 10% to 90% non-condensing. |
| Ingress Protection Rating | IP30. |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, CB, EAC, UCRF, RCM, WEEE. |
| EMC Emissions & Immunity Standards | EN 55032:2015+ A11:2020 + A1:2020; EN 55035:2017+A11:2020; EN 61000-3-3:2013+A1:2019+A2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.2.4; EN 301 489-52 V1.2.1; AS/NZS CISPR 32:2015+A1:2020. |
| ESD Standard | EN 61000-4-2:2009. |
| Radiated Immunity Standard | EN IEC 61000-4-3:2020. |
| EFT Standard | EN 61000-4-4:2012. |
| Surge Immunity (AC Mains Power Port) Standard | EN 61000-4-5:2014 + A1:2017. |
| CS Standard | EN 61000-4-6:2014. |
| DIP Standard | EN 61000-4-11:2020. |
| RF Exposure Standards | EN 300 328 V2.2.2; EN 300 440 V2.2.1; EN 301 893 V2.1.1; EN 301 908-1 V15.2.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.2.1; EN 301 908-25 V15.1.1; AS/NZS 4268:2017+A1:2021; AS/CA S042.1:2022; AS/CA S042.4:2022; AS/CA S042.5:2022+A1:2022. |
| Safety Standards | CE:EN IEC 62311:2020; RCM:AS/NZS 62368.1:2022; CB:EN IEC 62368-1:2020+A11:2020. |
