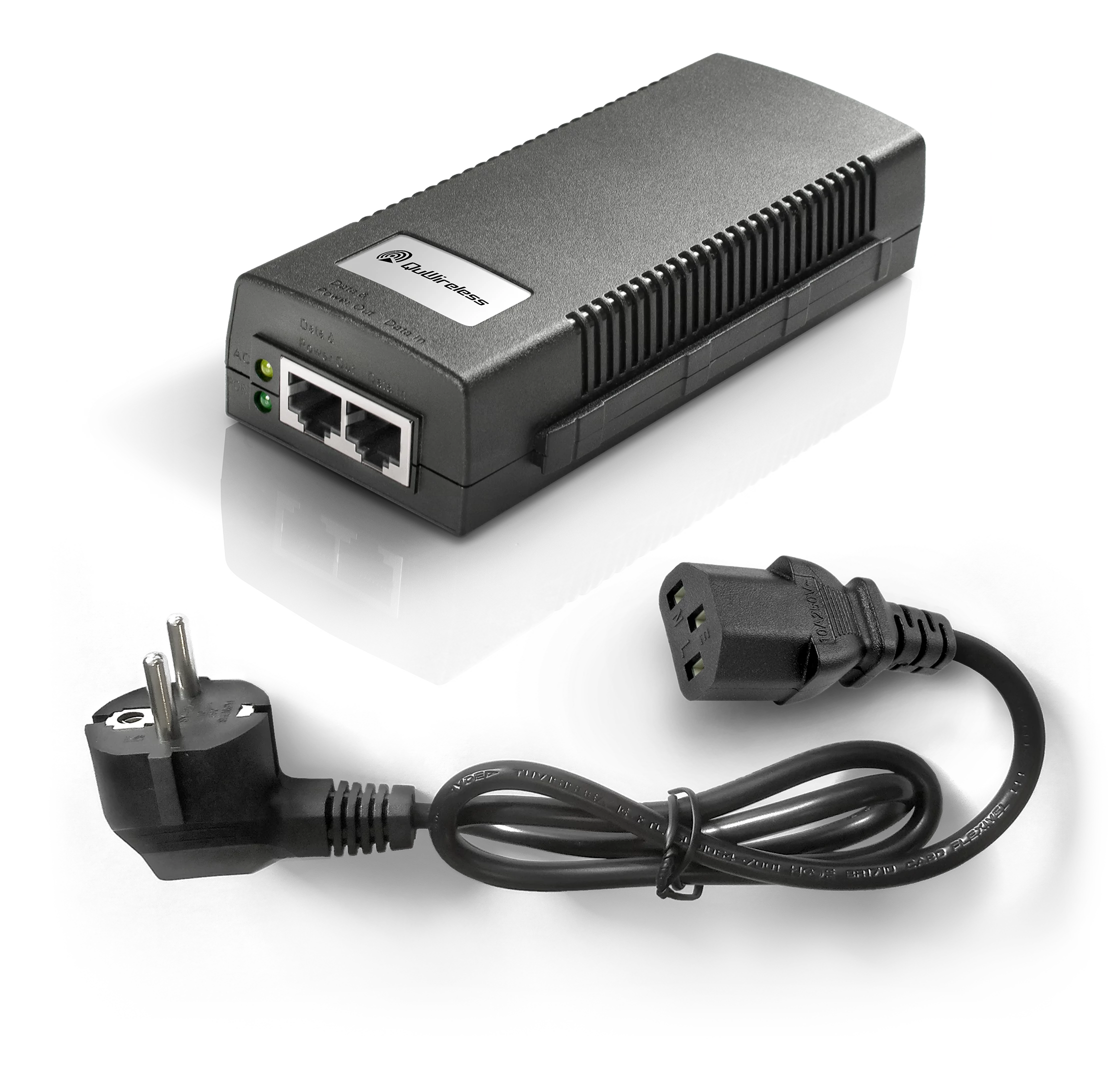

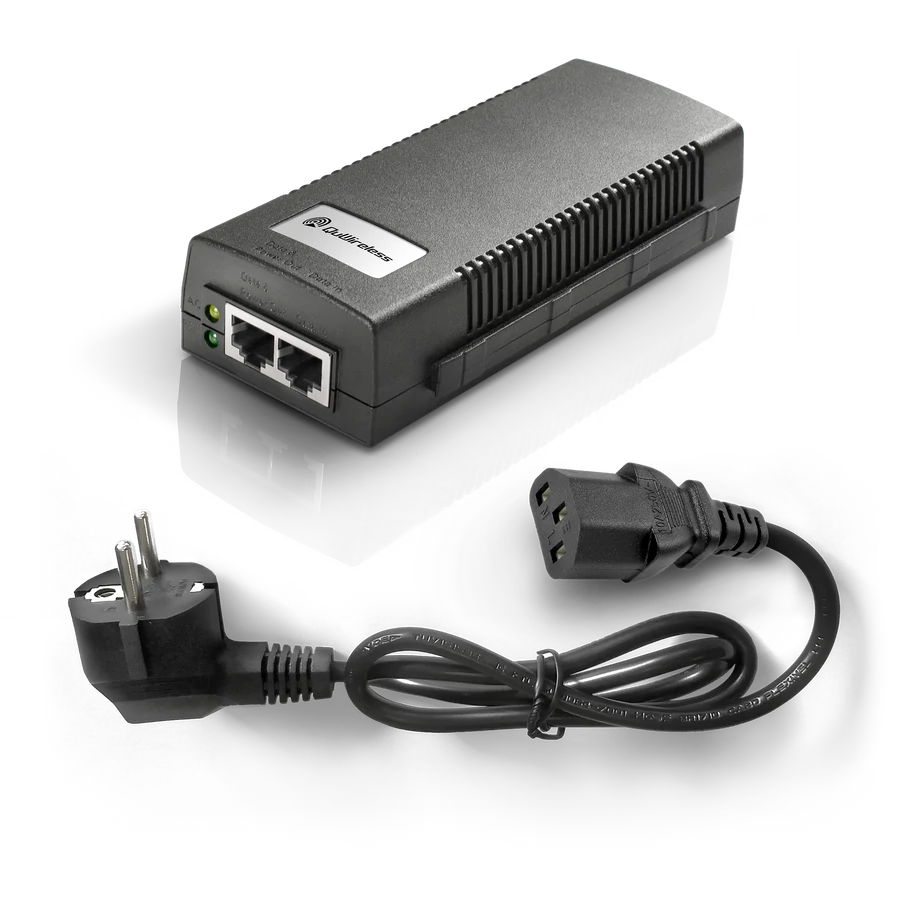

PoE tápegység QuCam, QuPoE Switch SCA6Ei megtáplálására, A QuCam/QuPoE kapcsolón keresztüli áramellátásra szolgál a következő eszközökhöz:
1. 1x Teltonika RUT230/RUT240/RUT900/RUT950/RUT955
2. 4x CCTV kamera aktív PoE 802.3af/at
- Passzív PoE tápegység EU
- Kimenet: 56V, 1A
- Bemenet: AC100-240V 0.8A Max 50/60Hz
- EU tápkábel
- CE
- Figyelem: Csak beltéri használatra
| Tulajdonság | Érték |
|---|---|
| ELECTRICAL INPUT SPECIFICATION | |
| Input voltage | 110 … 240VAC |
| Input frequency | 50 … 60Hz |
| Input current | max. 2A RMS |
| Inrush current | max. 30A |
| AC leakage current | max. 3.5mA |
| Efficiency | min. 80% @ 100VAC, 84% @ 240VAC |
| Dielectric strength (primary to secondary) | 2kVAC/5mA/1s |
| Input socket | IEC320-C6 |
| AC power cord | 1.5m length, 3 pins EU or UK plug |
| ELECTRICAL OUTPUT SPECIFICATION | |
| Output voltage | 56VDC |
| Min. load | 0A |
| Max. load | 1A |
| Peak load | 1.46A |
| Output power | 56W |
| Line regulation | ± 3% |
| Load regulation | ± 5% |
| Ripple | 560mVpp |
| Turn on delay time | max. 5s |
| Rise time | max. 40ms |
| Hold up time | min. 5ms |
| Overshoot | max. 15% |
| Protections Short circuit, over current (110 … 200% of DC output) | |
| Ethernet ports | |
| Input (LAN) | 1x RJ45 10/100Mbps |
| Output (PoE) | 1x RJ45 10/100Mbps |
| PoE mode | mode B:pins 4,5 + / pins 7,8 - |
| LEDs | Green:Power supply is on, Orange:PoE device connected |
| OTHER | |
| MTBF | 30,000 operating hours confidence-level at 80% load, 25°C |
| Operating temperature | -10°C … +45°C |
| Storage temperature | -20°C … +85°C |
| Humidity | 5% @ 0°C, 90% @ 40°C |
| Size | 146 x 59 x 30mm (LxWxH) |
| Safety | CE EMC/LVD / FCC Part 15 Class B/ EN55022 Class B/ EN55024 |
