QuWireless

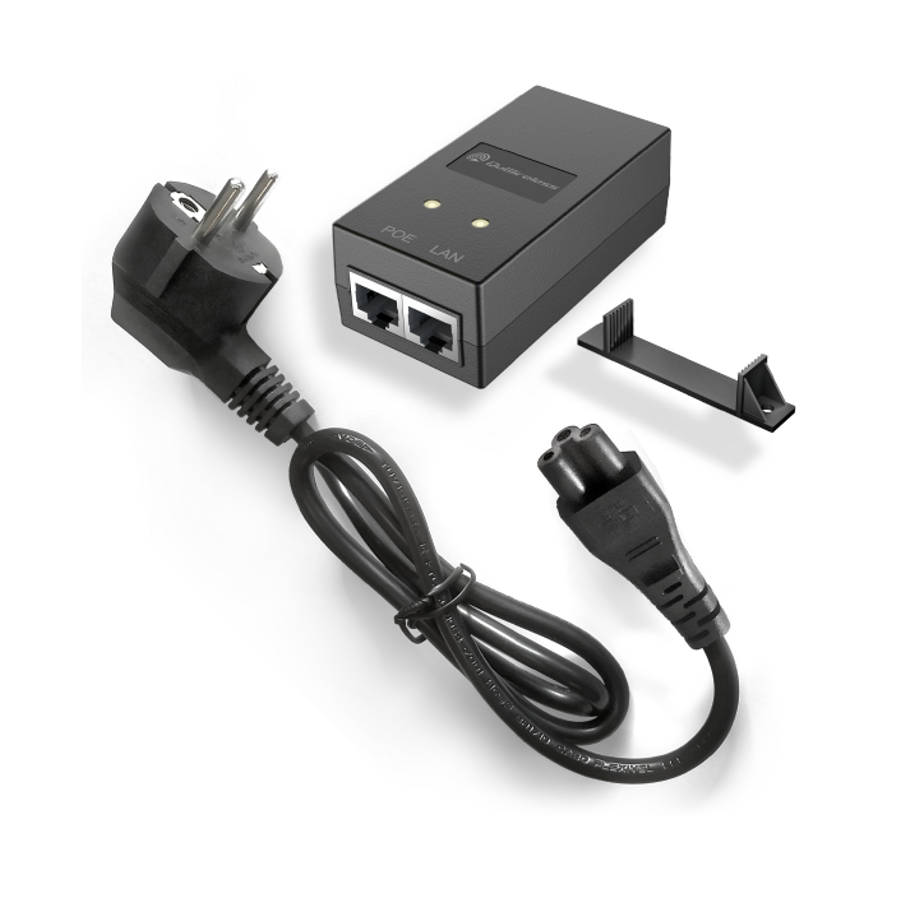

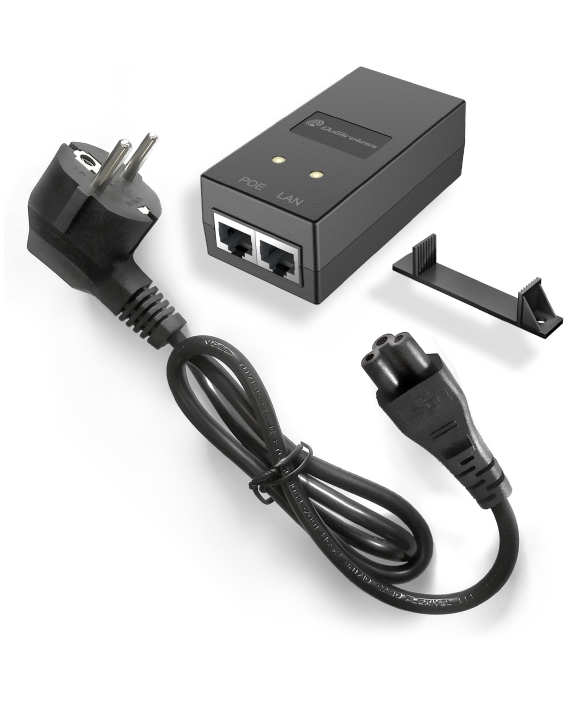

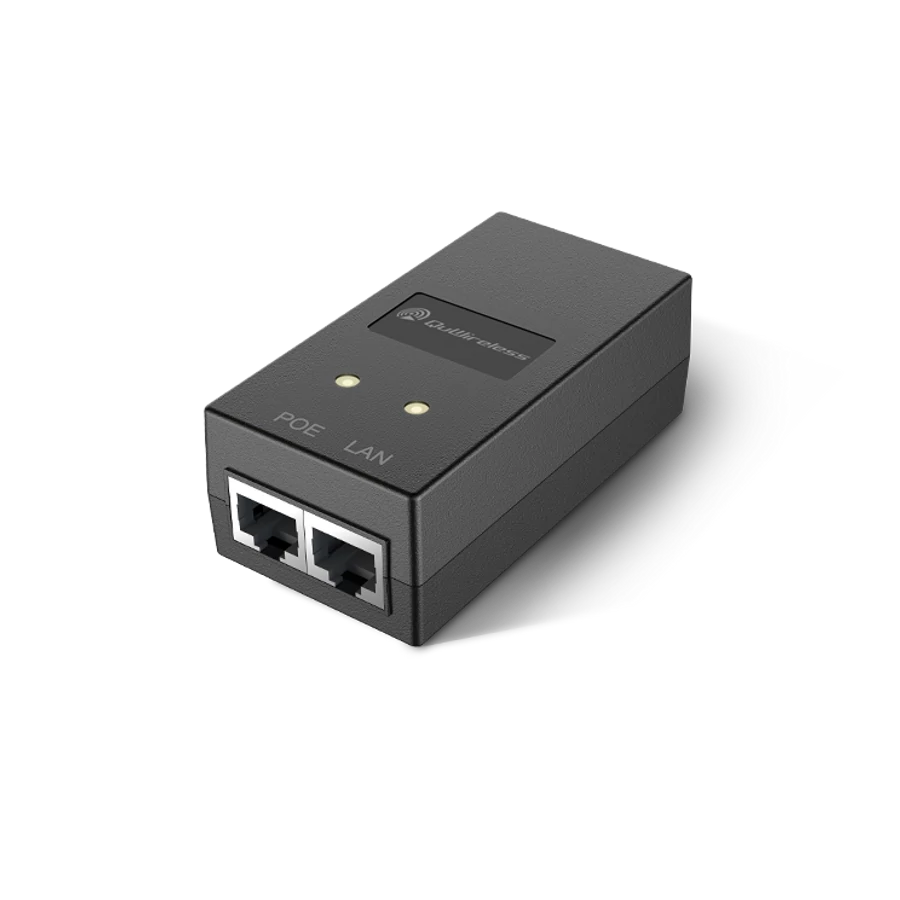

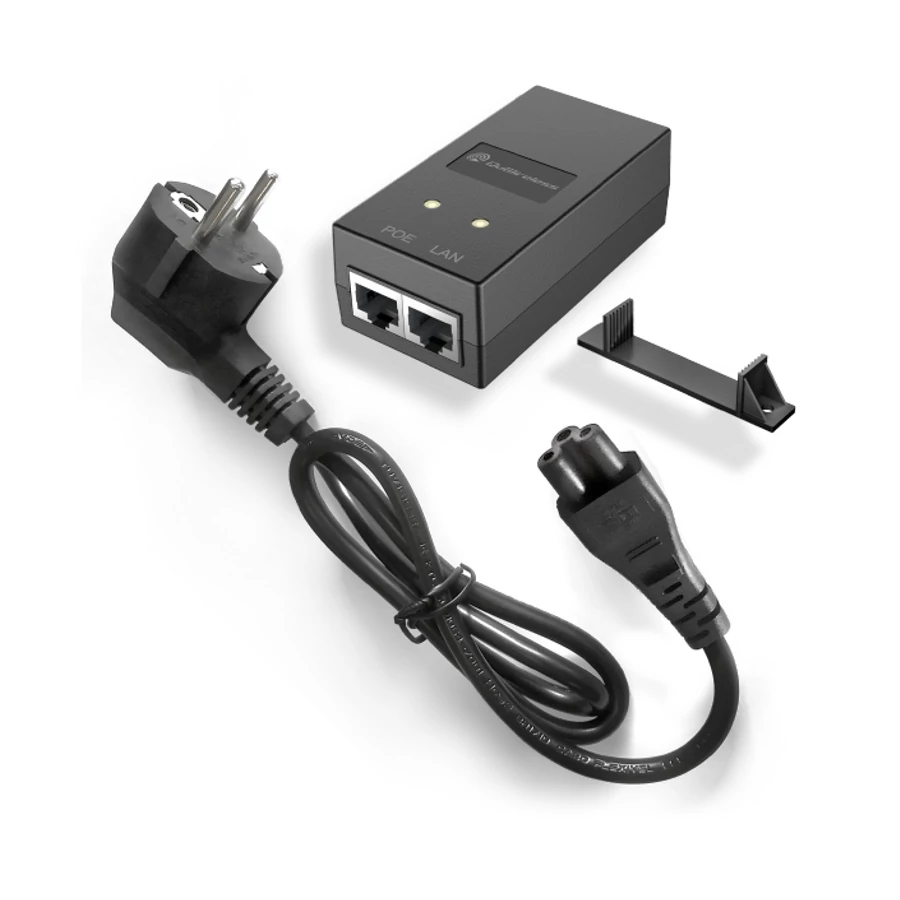

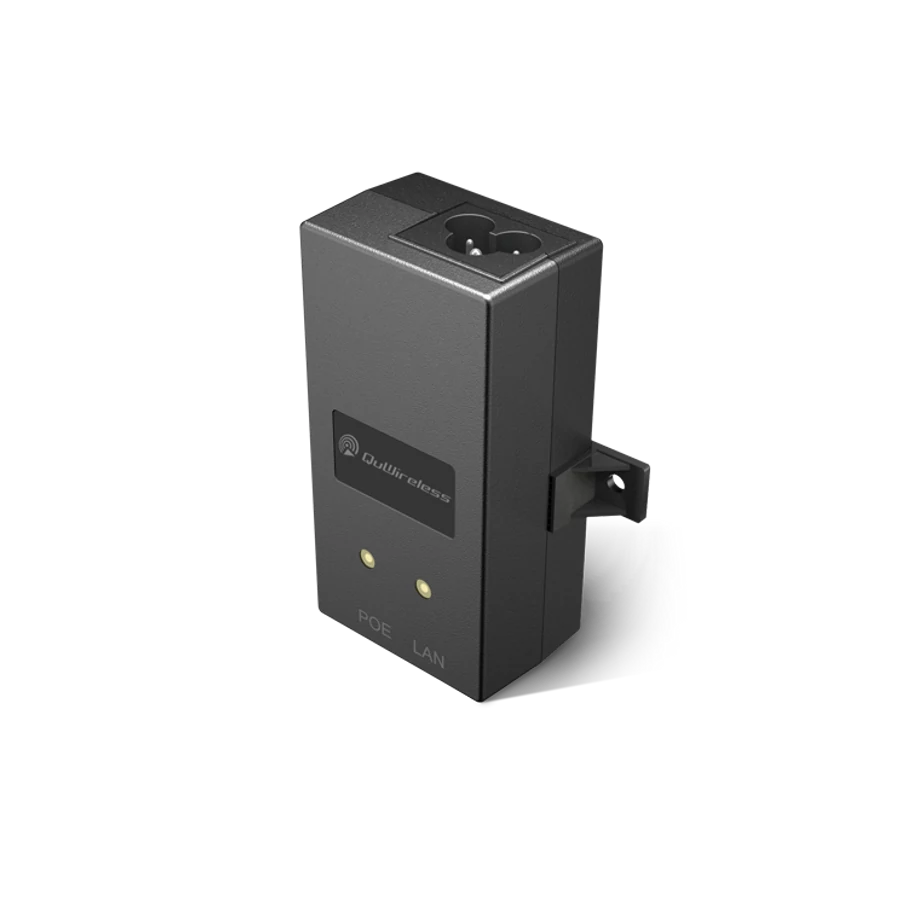

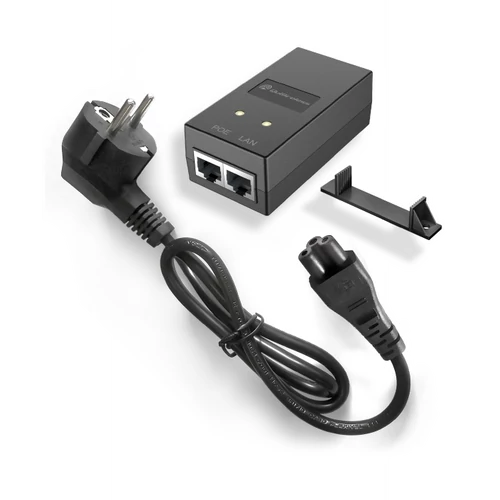

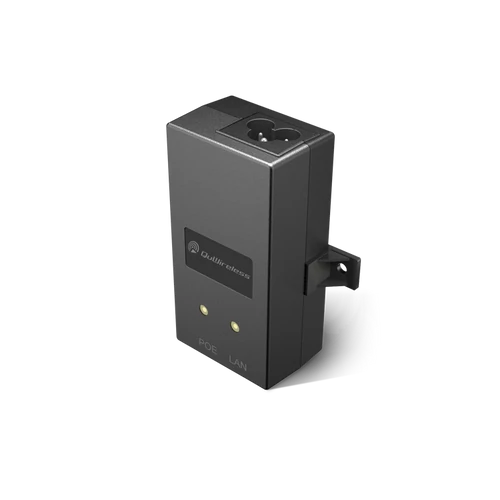

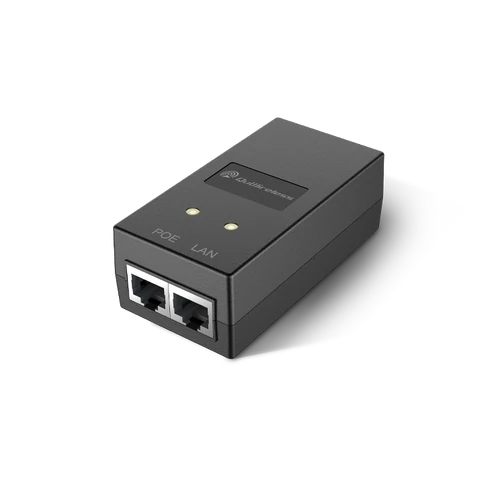

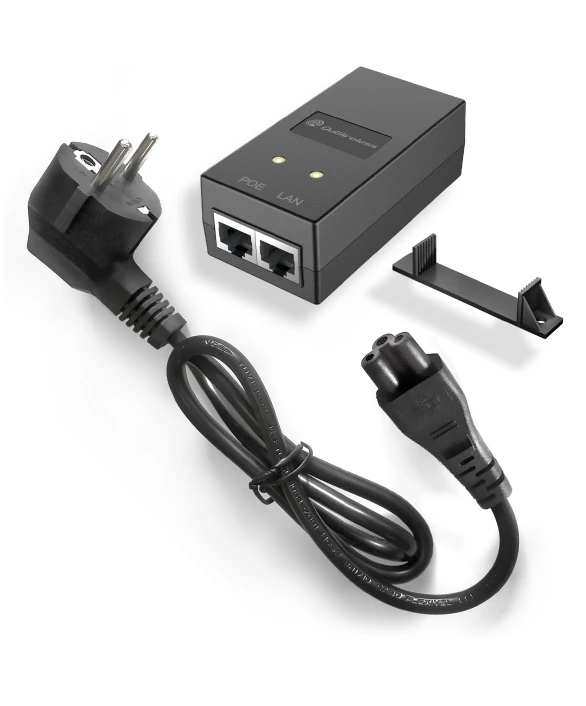

Gigabit PoE tápegység az összes QuSpot, QuMax és QuMini antennához, valamint a benne található Teltonika Routerhez
- Passzív PoE tápegység EU
- Kimenet: 24V, 1A
- Bemenet: AC100-240V 50/60Hz
- EU tápkábel
- Fali tartó tartozék
- CE, ATE, HIPOT
- Figyelem: Csak beltéri használatra
| Tulajdonság | Érték |
|---|---|
| ELECTRICAL INPUT SPECIFICATION | |
| Input voltage | 110 … 240VAC |
| Input frequency | 50 … 60Hz |
| Input current | max. 2A RMS |
| Inrush current | max. 30A |
| AC leakage current | max. 3.5mA |
| Efficiency | min. 80% @ 100VAC, 84% @ 240VAC |
| Dielectric strength (primary to secondary) | 3kVAC/5mA/1s |
| Input socket | IEC320-C6 |
| AC power cord | 0.75m length, 3 pins EU plug |
| ELECTRICAL OUTPUT SPECIFICATION | |
| Output voltage | 24VDC |
| Min. load | 0A |
| Max. load | 1A |
| Output power | 24W |
| Line regulation | ± 3% |
| Load regulation | ± 5% |
| Ripple | 240mVpp |
| Turn on delay time | max. 5s |
| Rise time | max. 40ms |
| Hold up time | min. 5ms |
| Overshoot | max. 15% |
| Protections Short circuit, over current | (110 … 200% of DC output) |
| Ethernet ports | |
| Input (LAN) | x RJ45 10/100/1000Mbps |
| Output (PoE) | 1x RJ45 10/100/1000Mbps |
| PoE mode | mode B:pins 4,5 + / pins 7,8 - |
| LEDs | Green:Power supply is on, Blue:PoE device connected |
| OTHER | |
| MTBF | 30,000 operating hours confidence-level at 80% load, 25°C |
| Operating temperature | -10°C … +45°C |
| Storage temperature | -20°C … +85°C |
| Humidity | 5% @ 0°C, 90% @ 40°C |
| Size | 84 x 44 x 30mm (LxWxH) |
| Safety | CE; EMC/LVD / FCC Part 15 Class B/ EN55022 Class B/ EN55024 |
