Leírás és Paraméterek

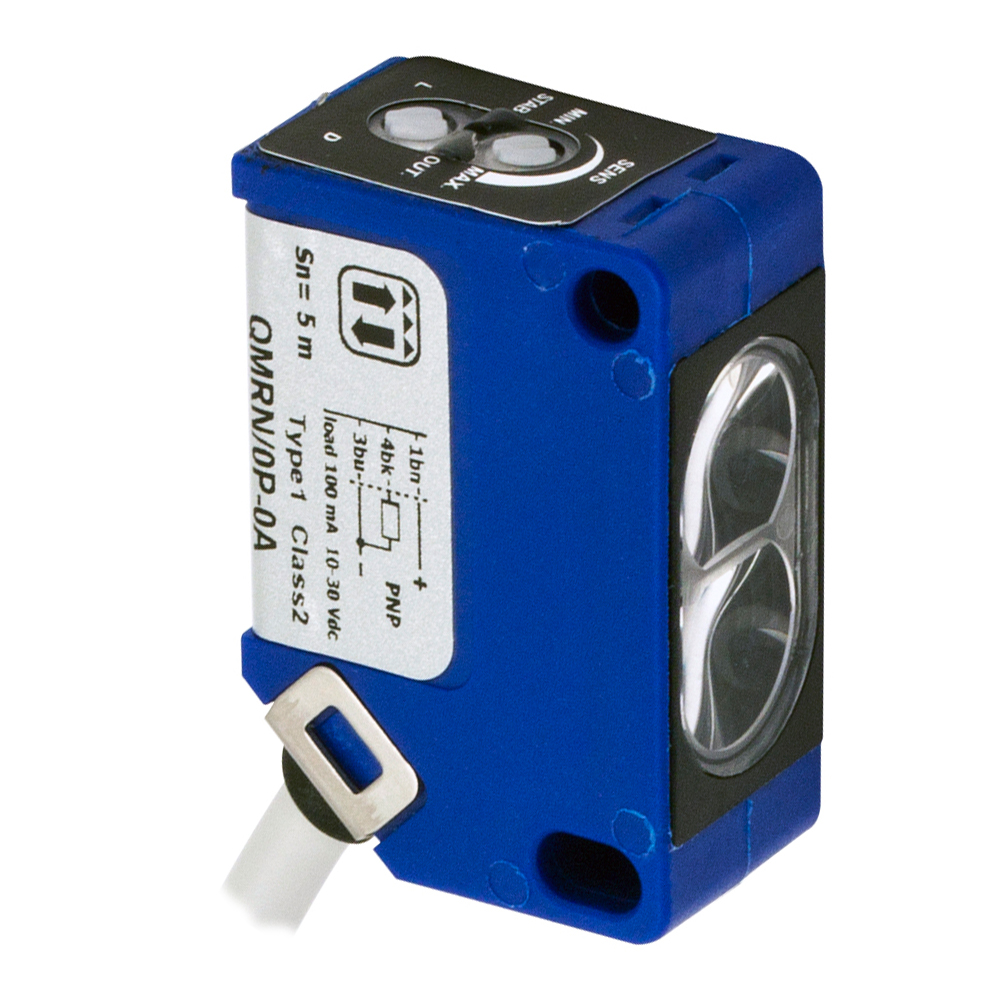

| Funkció | Tárgyreflexiós optikai érzékelő |
| Kimenet | PNP - Dark/Light sel. |
| Nominal sensing distance | 1,5m white target 90% Kodak 400x400mm |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Trimmer |
| Function Principle | Diffuse reflection (long distance, >600mm) |
| Optic position | 90° |
| Output type | PNP |
| Output Function | Lon/Don selectable |
| Switching frequency | 1kHz |
| Operating Voltage | 10…30Vdc |
| No-Load supply current | ≤30mA |
| Load current | ≤100mA |
| Leakage current | ≤10μA |
| Output voltage drop | 2V max. IL =100 mA |
| Max ripple content | 10% |
| LED indicators | Yellow (status output) , green (excess gain) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | Infrared (850 nm) |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) |
| Impulsive Overvoltage Protection | Yes |
| Dimensions | 40,6x21x13mm |
| Weight | 52g |
| Housing Material | PA66 |
| Connections | PVC 2m cable |
| Active Head Material | PMMA |
| Tightening torque | 1Nm |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Storage temperature | - 30°C…+ 80° C (Without freeze) |
| Diameter/Dimension | Cubic |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
