Leírás és Paraméterek

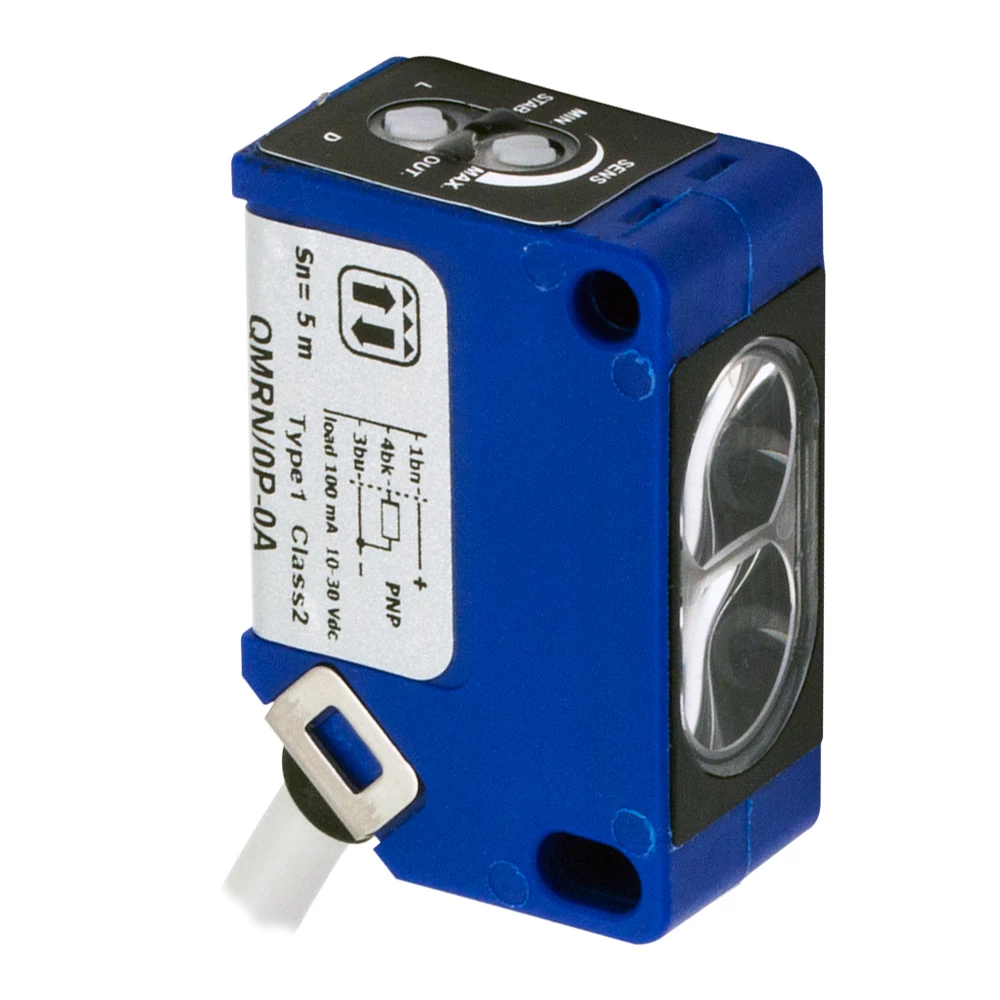

Funkció | Tárgyreflexiós optikai érzékelő |
Kimenet | PNP - Dark/Light sel. |
Nominal sensing distance | 400mm white target 90% Kodak 200x200mm |
Thermal drift of Sr | ≤10% Sr |
Repeat Accuracy | 5% |
Sensitivity adjustment | Trimmer |
Function Principle | Diffuse reflection (long distance, >600mm) |
Optic position | 90° |
Output type | PNP |
Output Function | Lon/Don selectable |
Switching frequency | 2kHz |
Operating Voltage | 10…30Vdc |
No-Load supply current | ≤30mA |
Load current | ≤100mA |
Leakage current | ≤10μA |
Output voltage drop | 2V max. IL =100 mA |
Max ripple content | 10% |
LED indicators | Yellow (status output) , green (excess gain) |
Time delay before availability | ≤200ms |
Short-circuit protection | Yes |
Reverse Polarity Protection | Yes |
Emission | Infrared (850 nm) |
Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) |
Impulsive Overvoltage Protection | Yes |
Dimensions | 40,6x21x13mm |
Weight | 52g |
Housing Material | PA66 |
Connections | PVC 2m cable |
Active Head Material | PMMA |
Tightening torque | 1Nm |
Operating temperature | - 25°C…+ 70° C (Without freeze) |
Storage temperature | - 30°C…+ 80° C (Without freeze) |
Diameter/Dimension | Cubic |
Approvals | CE cULus |
EMC compatibility | EN 60947-5-2 |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
Degree of protection | IP67 |
