Leírás és Paraméterek

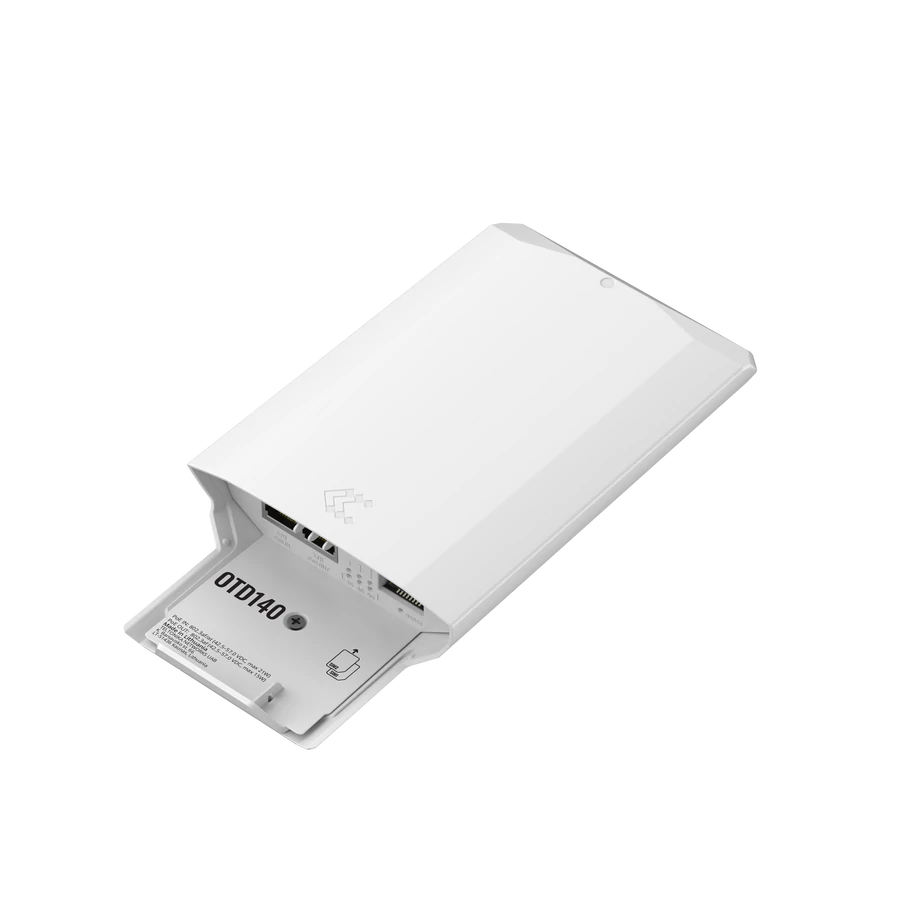

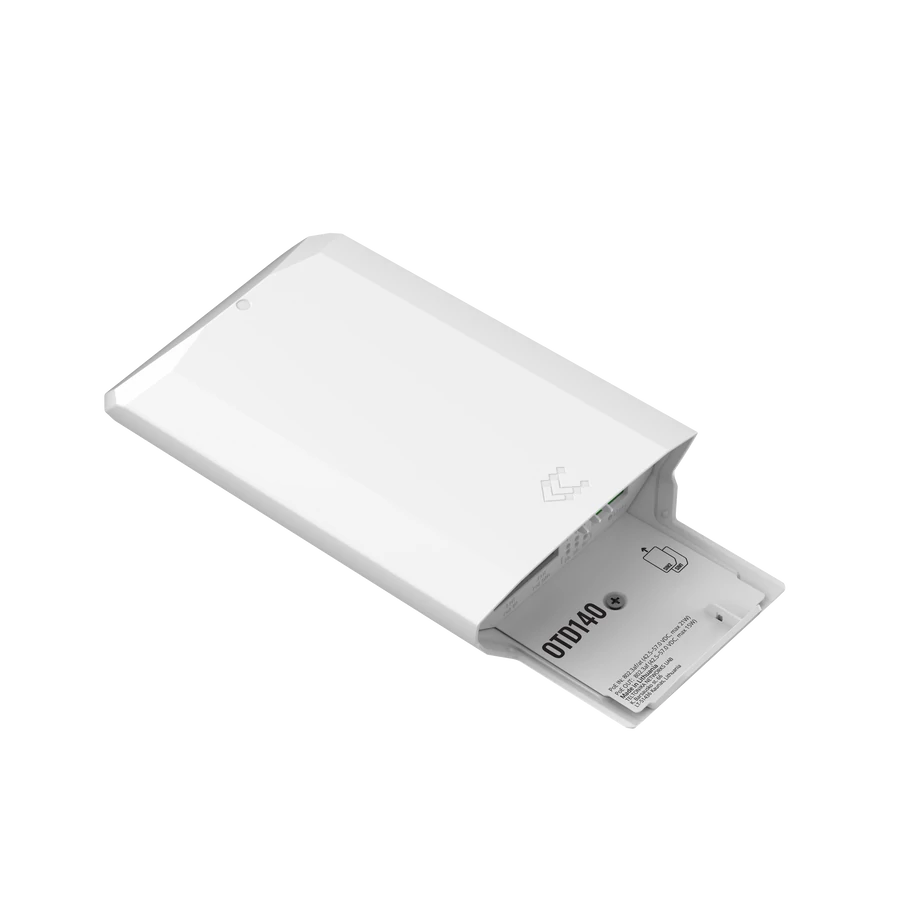

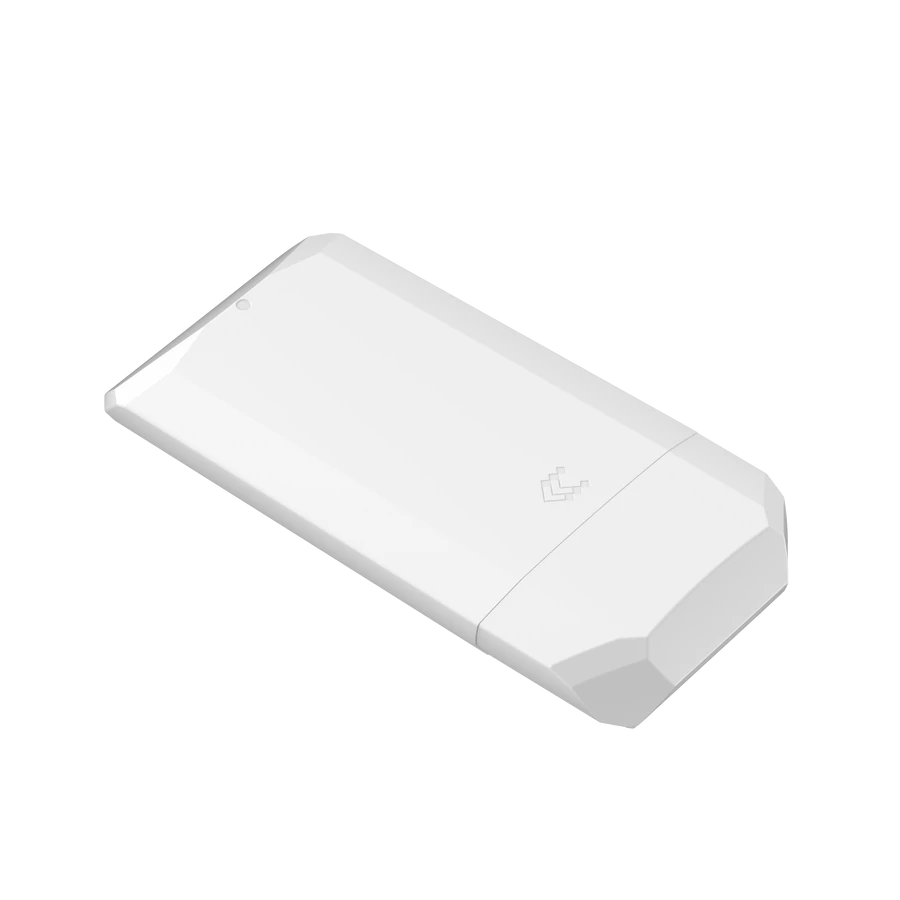

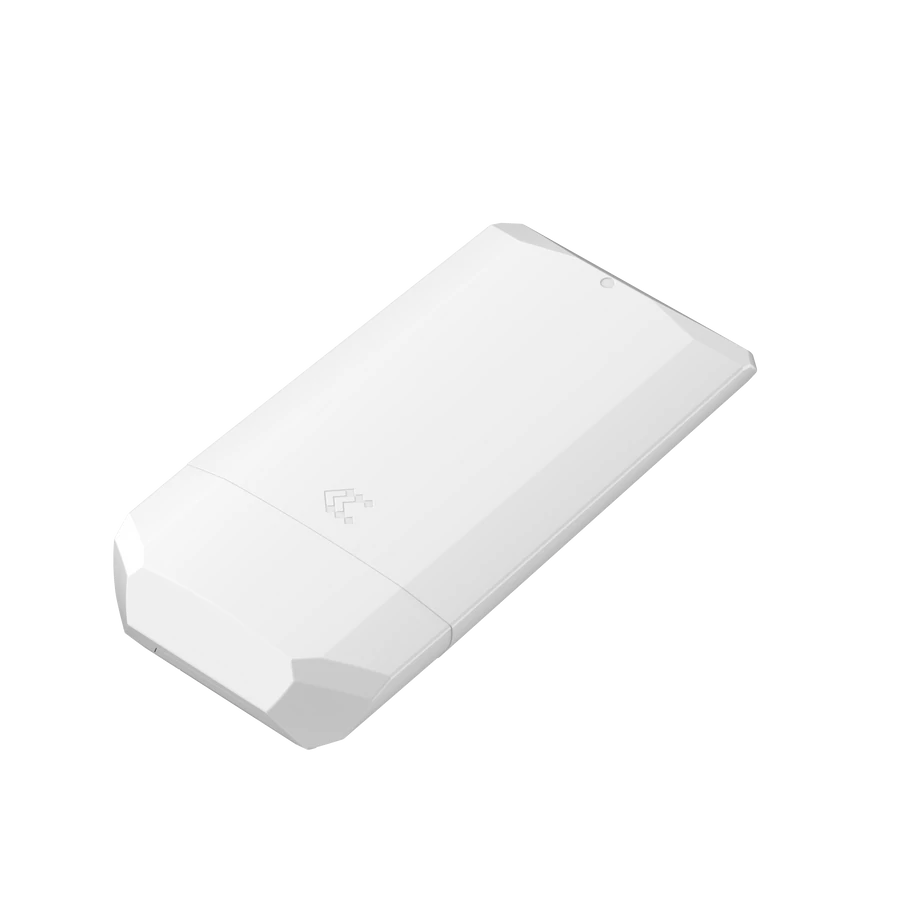

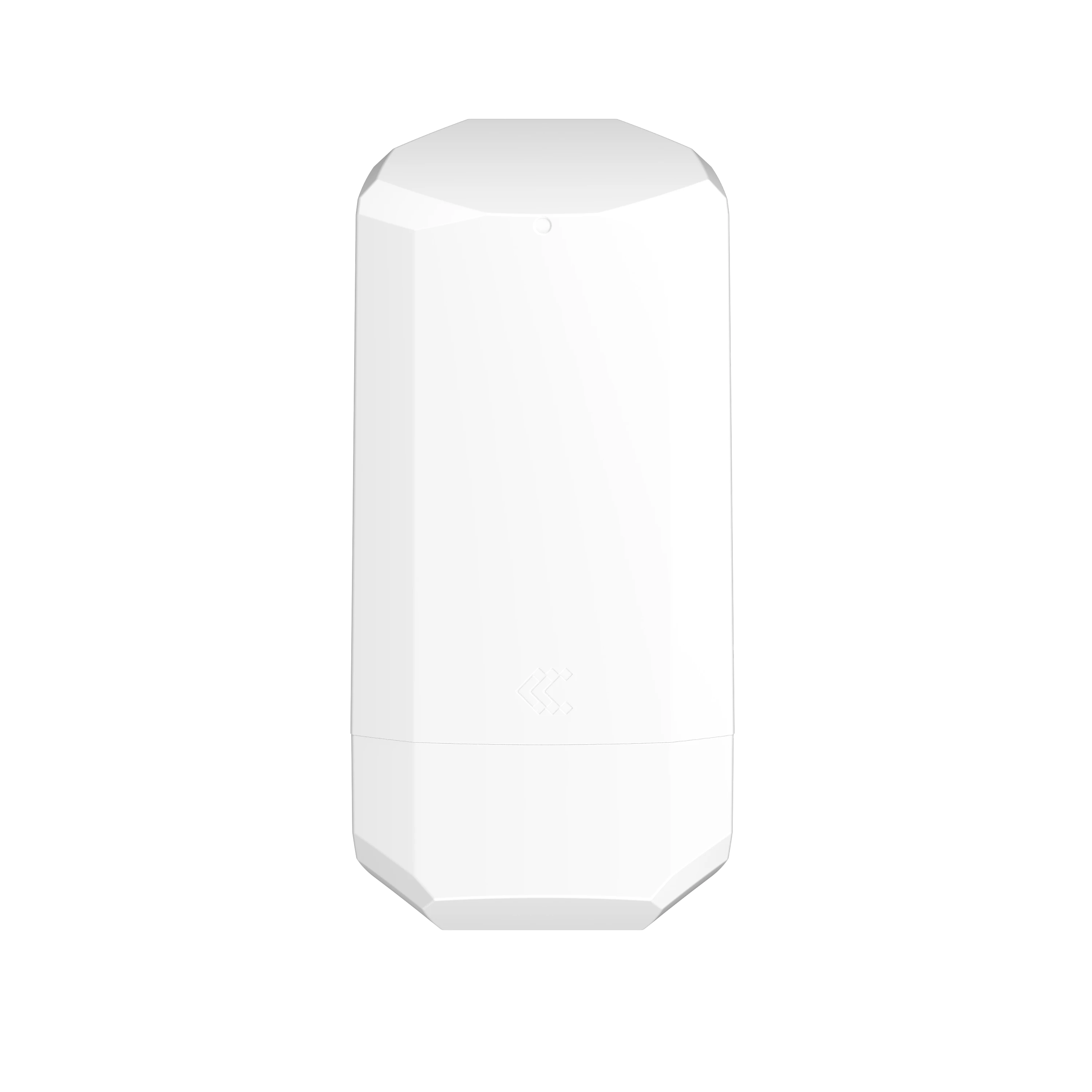

OTD140 Kültéri 4G LTE Mobilnet Router IP55
-
IP55 - kültéri felhasználást is lehetővé tevő masszív és tartós burkolat
-
4G LTE (Cat 4), 3G, 2G - Adatkapcsolat
-
DUAL SIM - Automatikus feladatátvétellel, tartalék WAN-nal és egyéb átkapcsolási lehetőségekkel
-
POE-IN/OUT - 1 x PoE bement és 1 x PoE kimenet
-
RMS - Kompatibilis a Teltonika Remote Management System rendszerre
A Teltonika OTD140 egy kültéri mobilinternet router strapabíró IP55-ös műanyag házzal és beépített szerelőkonzollal rendelkezik, így kültéri felhasználás esetén is könnyedén telepíthető, és képes ellenállni a kültéri környezeti feltételeknek. Ezen túlmenően ez a kültéri útválasztó fel van szerelve LTE Cat 4 csatlakozással és két PoE-in/out Ethernet porttal. Ez azt jelenti, hogy a Teltonika OTD140 egy időben képes más eszközöket táplálni, és más eszközöktől áramot kapni , így a kábelezés sokkal egyszerűbb! A készülék 802.3af/at kompatibilis 42.5–57.0 VDC bementi feszültségtartománnyal.
Az OTD140 a már bizonyított RutOS rendszerrel érkezik, amely fejlett biztonsági funkciókat és speciális ipari protokollokat biztosít a professzionális alkalmazások széles skálájához, kompatibilis a távoli felügyeleti rendszerünkkel (RMS), amely lehetővé teszi a távfelügyeletet és a nagy eszközparkok optimalizált monitorozását.
Az egyedi programozás, a távfelügyelet és a biztonsági funkciók még magasabb szintre lettek tökéletesítve így az OTD140 kiváló választás IoT és az M2M alkalmazásokhoz ahol kültéri telepítés az elvárás.
Tápegységet a csomag nem tartalmaz! A tápegység külön rendelendő!
| Mobilinternet | 4G/LTE (Cat 4) |
| WiFi | Nem támogatott |
| Ethernet | 2 x 10/100 Mbps 802.3 af/at PoE PSE |
| SIM | 2 x SIM foglalat |
| Mobilinternet | 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL |
| SIM | 2 SIM-kártya, automatikus kapcsolótok:gyenge jel, adatkorlát, SMS-korlát, roaming, nincs hálózat, hálózat megtagadva, adatkapcsolati hiba, SIM tétlenségi védelem |
| Status | Jel erősség (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| LAN | 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports LAN auto MDI/MDIX crossover |
| PoE ports | 1 x PoE In + 1 x PoE Out (PoE Max Power per Port (at PSE) 24 W Max (power supply unit dependent)) |
| PoE standards | 802.3af/at |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| Firewall status page | View all your Firewall statistics, rules, and rule counters |
| Ports management | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices |
| DHCP | Static and dynamic IP allocation, DHCP Relay |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Network backup | VRRP, Wired options, each of which can be used as an automatic Failover |
| Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes |
| SSHFS | Possibility to mount remote file system via SSH protoco |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, |
| BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 | |
| IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. |
| OPC UA | Client, Server (planned) TCP |
| MODBUS | |
| Supported modes | Server, Client |
| Supported connection types | TCP |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
| Supported data formats | 8-bit:INT, UINT; 16-bit:INT, UINT (MSB or LSB first); 32-bit:float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| DATA TO SERVER Protocol | HTTP(S), MQTT, Azure MQTT Extract parameters from multiple sources and different protocols, and send them all to a single server |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Master through MQTT broker |
| DNP3 Supported modes | Station, Outstation |
| DNP3 Supported connection | TCP |
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| Cloud of Things | Allows monitoring of:Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of:WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of:Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
| Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| FLASH storage | 16 MB |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| GPL customization | You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs. |
| Input / Output Events | Email, RMS, SMS |
| Power Connector | RJ45 Socket |
| Input voltage range | 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
| Input voltage range for PoE | 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection |
| Power consumption | Idle:< 2.5 W / Max:< 6 W / PoE Max < 21 W |

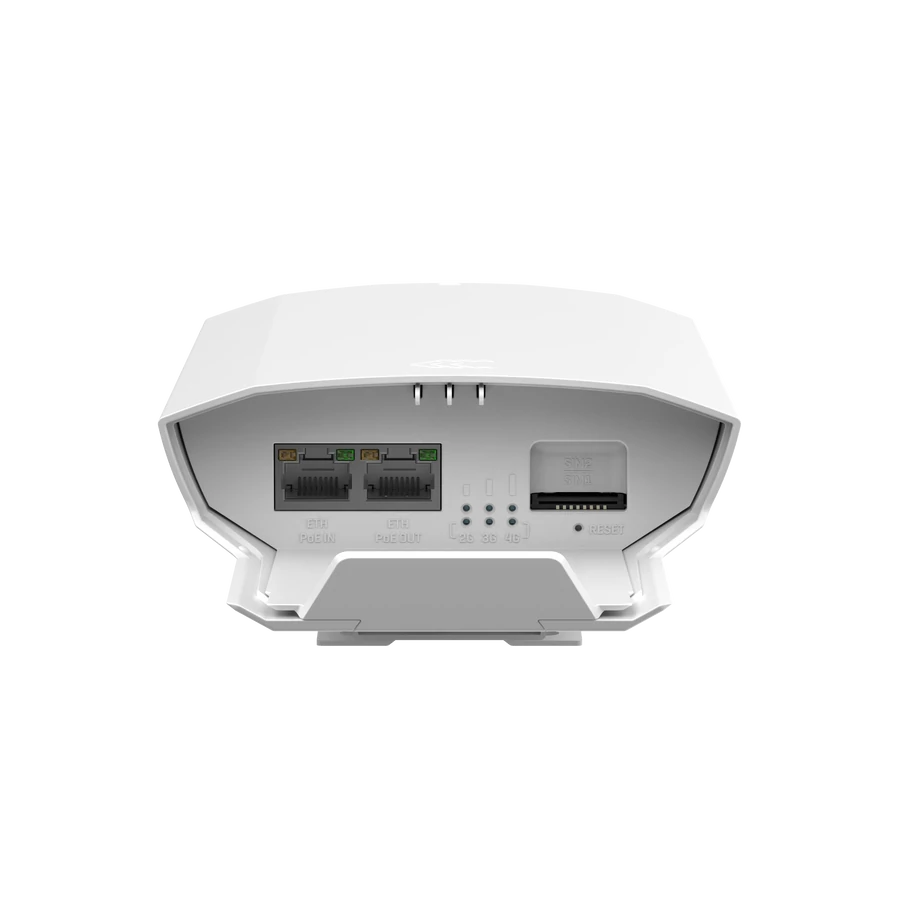

| Physical Interfaces | |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Power | RJ45, PoE In, 42.5 – 57.0 VDC |
| Antennas | 2 x Internal antennas |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Plastic (PC+ASA) |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Weight | 855 g |
| Mounting options | Mounting Bracket (for vertical flat surface or pole mounting) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP55 |
| Regulatory | CE, UKCA, EAC, UCRF, RCM |
