Leírás és Paraméterek

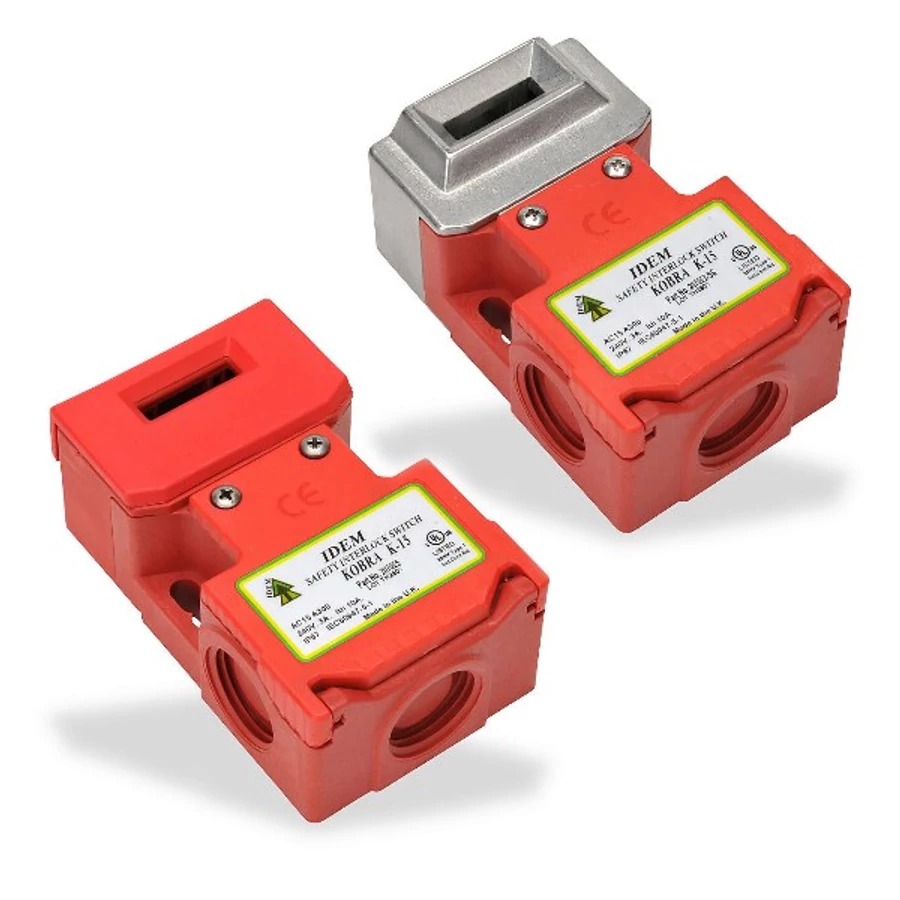

Az IDEM K-15 és K-15-SS nyelves biztonsági kapcsoló helyzet reteszelés-érzékelést biztosít kis, mozgó védőburkolatok számára. Az IDEM K-15 és K-15-SS kiválóan illeszkedik csúszó vagy csuklós gép védőburkolatának éléhez. Kompakt kialakítása (86 mm hossz) lehetővé teszi alkalmazását olyan esetekben is, amikor a rendelkezésre álló hely korlátozott. 3 pólusú érintkezővel: 2NC 1O vagy 3 NC opciók. Kábelbevezetés három oldalról is lehetséges. Poliészter (K-15) vagy rozsdamentes acél 316 (K-15-SS) fejjel kapható. A fej elforgatható, így négy bemeneti pozíció is lehetséges. Az érintkezőblokkok cserélhetőek.
További típusok:
Termék | Cikkszám | Leírás |
---|---|---|
K-15 | 207001 | K-15 M20 2NC 1NO |
K-15-SS | 207001-SS | K-15 M20 2NC 1NO SS Head |
K-15 | 207001A | K-15 M20 2NC 1NO – std actuator |
K-15-SS | 207001A-SS | K-15 M20 2NC 1NO SS Head – std actuator |
K-15 | 207001F | K-15 M20 2NC 1NO – flat actuator |
K-15-SS | 207001F-SS | K-15 M20 2NC 1NO SS Head – flat actuator |
K-15 | 207001HF | K-15 M20 2NC 1NO – HF Actuator |
K-15-SS | 207001HF-SS | K-15 M20 2NC 1NO SS Head – HF Actuator |
K-15 | 207001HFH | K-15 M20 2NC 1NO – HFH actuator |
K-15-SS | 207001HFH-SS | K-15 M20 2NC 1NO SS Head – HFH actuator |
K-15 | 207001PF | K-15 M20 2NC 1NO – PF actuator |
K-15-SS | 207001PF-SS | K-15 M20 2NC 1NO SS Head – PF actuator |
K-15 | 207002 | K-15 ½NPT 2NC 1NO |
K-15-SS | 207002-SS | K-15 ½NPT 2NC 1NO SS Head |
K-15 | 207002A | K-15 ½NPT 2NC 1NO – std actuator |
K-15-SS | 207002A-SS | K-15 ½NPT 2NC 1NO SS Head – std actuator |
K-15 | 207002F | K-15 ½NPT 2NC 1NO – flat actuator |
K-15-SS | 207002F-SS | K-15 ½NPT 2NC 1NO SS Head – flat actuator |
K-15 | 207002HF | K-15 ½NPT 2NC 1NO – HF actuator |
K-15-SS | 207002HF-SS | K-15 ½NPT 2NC 1NO SS Head – HF actuator |
K-15 | 207002HFH | K-15 ½NPT 2NC 1NO – HFH actuator |
K-15-SS | 207002HFH-SS | K-15 ½NPT 2NC 1NO SS Head – HFH actuator |
K-15 | 207002PF | K-15 ½NPT 2NC 1NO – PF actuator |
K-15-SS | 207002PF-SS | K-15 ½NPT 2NC 1NO SS Head – PF actuator |
K-15 | 207003 | K-15 QC ½UNF 6way 2NC 1NO |
K-15-SS | 207003-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head |
K-15 | 207003A | K-15 QC ½UNF 6way 2NC 1NO – std actuator |
K-15-SS | 207003A-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head – std actuator |
K-15 | 207003F | K-15 QC ½UNF 6way 2NC 1NO – flat actuator |
K-15-SS | 207003F-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head – flat actuator |
K-15 | 207003HF | K-15 QC ½UNF 6way 2NC 1NO – HF actuator |
K-15-SS | 207003HF-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head – HF actuator |
K-15 | 207003HFH | K-15 QC ½UNF 6way 2NC 1NO – HFH actuator |
K-15-SS | 207003HFH-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head – HFH actuator |
K-15 | 207003PF | K-15 QC ½UNF 6way 2NC 1NO – PF actuator |
K-15-SS | 207003PF-SS | K-15 QC ½UNF 6way 2NC 1NO SS Head – PF actuator |
K-15 | 207004 | K-15 M20 3NC |
K-15-SS | 207004-SS | K-15 M20 3NC SS Head |
K-15 | 207004A | K-15 M20 3NC – std actuator |
K-15-SS | 207004A-SS | K-15 M20 3NC SS Head – std actuator |
K-15 | 207004F | K-15 M20 3NC – flat actuator |
K-15-SS | 207004F-SS | K-15 M20 3NC SS Head – flat actuator |
K-15 | 207004HF | K-15 M20 3NC – HF actuator |
K-15-SS | 207004HF-SS | K-15 M20 3NC SS Head – HF Actuator |
K-15 | 207004HFH | K-15 M20 3NC – HFH actuator |
K-15-SS | 207004HFH-SS | K-15 M20 3NC SS Head – HFH actuator |
K-15 | 207004PF | K-15 M20 3NC – PF actuator |
K-15-SS | 207004PF-SS | K-15 M20 3NC SS Head – PF actuator |
K-15 | 207005 | K-15 ½NPT 3NC |
K-15-SS | 207005-SS | K-15 ½NPT 3NC SS Head |
K-15 | 207005A | K-15 ½NPT 3NC – std actuator |
K-15-SS | 207005A-SS | K-15 ½NPT 3NC SS Head – std actuator |
K-15 | 207005F | K-15 ½NPT 3NC – flat actuator |
K-15-SS | 207005F-SS | K-15 ½NPT 3NC SS Head – flat actuator |
K-15 | 207005HF | K-15 ½NPT 3NC – HF actuator |
K-15-SS | 207005HF-SS | K-15 ½NPT 3NC SS Head – HF actuator |
K-15 | 207005HFH | K-15 ½NPT 3NC – HFH actuator |
K-15-SS | 207005HFH-SS | K-15 ½NPT 3NC SS Head – HFH actuator |
K-15 | 207005PF | K-15 ½NPT 3NC – PF actuator |
K-15-SS | 207005PF-SS | K-15 ½NPT 3NC SS Head – PF actuator |
K-15 | 207006 | K-15 QC ½UNF 6way 3NC |
K-15-SS | 207006-SS | K-15 QC ½UNF 6way 3NC SS Head |
K-15 | 207006A | K-15 QC ½UNF 6way 3NC – std actuator |
K-15-SS | 207006A-SS | K-15 QC ½UNF 6way 3NC SS Head – std actuator |
K-15 | 207006F | K-15 QC ½UNF 6way3NC – flat actuator |
K-15-SS | 207006F-SS | K-15 QC ½UNF 6way 3NC SS Head – flat actuator |
K-15 | 207006HF | K-15 QC ½UNF 6way 3NC – HF actuator |
K-15-SS | 207006HF-SS | K-15 QC ½UNF 6way 3NC SS Head – HF actuator |
K-15 | 207006HFH | K-15 QC ½UNF 6way 3NC – HFH actuator |
K-15-SS | 207006HFH-SS | K-15 QC ½UNF 6way 3NC SS Head- HFH actuator |
K-15 | 207006PF | K-15 QC ½UNF 6way 3NC – PF actuator |
K-15-SS | 207006PF-SS | K-15 QC ½UNF 6way 3NC SS Head – PF actuator |
K-15 | 207008 | K-15 QC M12 8way 2NC 1NO |
K-15-SS | 207008-SS | K-15 QC M12 8way 2NC 1NO SS Head |
K-15 | 207008A | K-15 QC M12 8way 2NC 1NO – std actuator |
K-15-SS | 207008A-SS | K-15 QC M12 8way 2NC 1NO SS Head – std actuator |
K-15 | 207008F | K-15 QC M12 8way 2NC 1NO – flat actuator |
K-15-SS | 207008F-SS | K-15 QC M12 8way 2NC 1NO SS Head – flat actuator |
K-15 | 207008HF | K-15 QC M12 8way 2NC 1NO – HF actuator |
K-15-SS | 207008HF-SS | K-15 QC M12 8way 2NC 1NO SS Head – HF actuator |
K-15 | 207008HFH | K-15 QC M12 8way 2NC 1NO – HFH actuator |
K-15-SS | 207008HFH-SS | K-15 QC M12 8way 2NC 1NO SS Head – HFH actuator |
K-15 | 207008PF | K-15 QC M12 8way 2NC 1NO – PF actuator |
K-15-SS | 207008PF-SS | K-15 QC M12 8way 2NC 1NO SS Head – PF actuator |
K-15 | 207009 | K-15 QC M12 8way 3NC |
K-15-SS | 207009-SS | K-15 QC M12 8way 3NC SS Head |
K-15 | 207009A | K-15 QC M12 8way 3NC – std actuator |
K-15-SS | 207009A-SS | K-15 QC M12 8way 3NC SS Head – std actuator |
K-15 | 207009F | K-15 QC M12 8way 3NC – flat actuator |
K-15-SS | 207009F-SS | K-15 QC M12 8way 3NC SS Head – flat actuator |
K-15 | 207009HF | K-15 QC M12 8way 3NC – HF actuator |
K-15-SS | 207009HF-SS | K-15 QC M12 8way 3NC SS Head – HF actuator |
K-15 | 207009HFH | K-15 QC M12 8way 3NC – HFH actuator |
K-15-SS | 207009HFH-SS | K-15 QC M12 8way 3NC SS Head- HFH actuator |
K-15 | 207009PF | K-15 QC M12 8way 3NC – PF actuator |
K-15-SS | 207009PF-SS | K-15 QC M12 8way 3NC SS Head – PF actuator |
