Leírás és Paraméterek

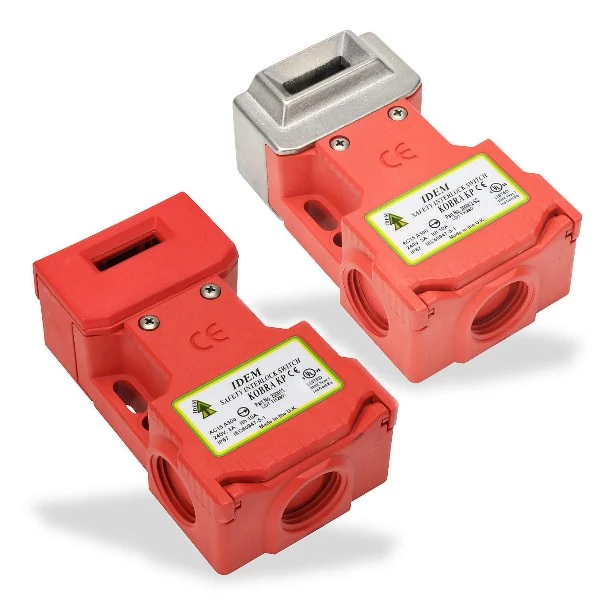

Az IDEM KP- nyelves biztonsági kapcsoló Poliészter házzal robusztus és tartós helyzet reteszelés-érzékelést biztosítson a kis mozgó védőburkolatok számára.
Az IDEM KP-kiválóan illeszkedik csúszó vagy csuklós gép védőburkolatának éléhez.
Az IP67 védettségi fokozatnak köszönhetően az KP- tökéletes választás a legtöbb ipari alkalmazáshoz

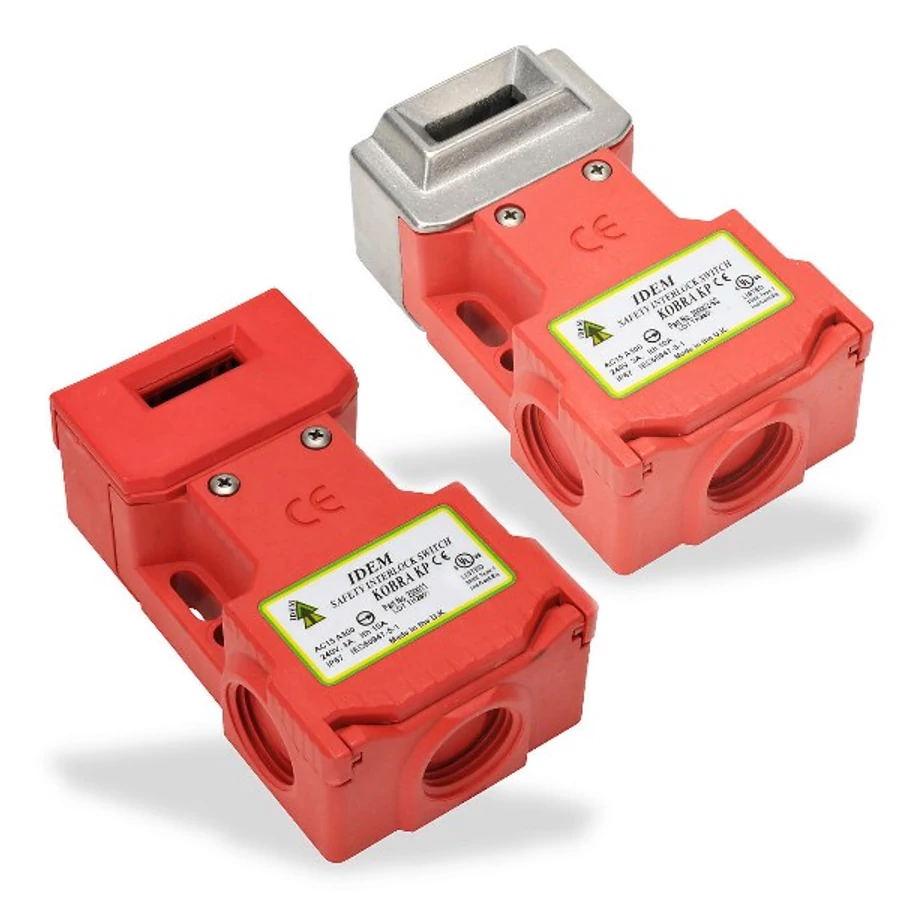

A termék elérhető rozsdamentes acél működtető befogadó fejjel is.
A forgatható fejeknek köszönhetően 4 különböző belépési helyzet elérhető
A szűk sugarú védőburkolatokhoz rugalmas műanyag működtető is rendelkezésre áll.
További típusok:
Product Group | Part No. | Description |
KP | 200001 | KP M20 2NC 1NO |
KP | 200001-SS | KP M20 2NC 1NO SS Head |
KP | 200001A | KP M20 2NC 1NO – std actuator |
KP | 200001A-40N | KP M20 2NC 1NO – std actuator 40N |
KP | 200001A-GC | KP M20 2NC 1NO – std actuator |
KP | 200001A-SS | KP M20 2NC 1NO SS Head – std actuator |
KP | 200001A-SS-40N | KP M20 2NC 1NO SS Head – std actuator 40N |
KP | 200001F | KP M20 2NC 1NO – flat actuator |
KP | 200001F-SS | KP M20 2NC 1NO SS Head – flat actuator |
KP | 200001HF | KP M20 2NC 1NO – HF Actuator |
KP | 200001HF-40N | KP M20 2NC 1NO – HF Actuator |
KP | 200001HF-SS | KP M20 2NC 1NO SS Head – HF actuator |
KP | 200001HF-SS-40N | KP M20 2NC 1NO SS Head – HF actuator 40N |
KP | 200001HFH | KP M20 2NC 1NO – HFH actuator |
KP | 200001HFH-SS | KP M20 2NC 1NO SS Head – HFH actuator |
KP | 200001PF | KP M20 2NC 1NO – PF Actuator |
KP | 200001PF-40N | KP M20 2NC 1NO – PF Actuator |
KP | 200001PF-SS | KP M20 2NC 1NO SS Head – PF actuator |
KP | 200002 | KP ½NPT 2NC 1NO |
KP | 200002-SS | KP ½NPT 2NC 1NO SS head |
KP | 200002A | KP ½NPT 2NC 1NO -std actuator |
KP | 200002A-SS | KP ½NPT 2NC 1NO SS head – std actuator |
KP | 200002A-SS-GC | KP 1/2NPT 2NC 1NO Gold Contacts SS Head – STD Actuator |
KP | 200002F | KP ½NPT 2NC 1NO – flat actuator |
KP | 200002F-SS | KP ½NPT 2NC 1NO SS head – flat actuator |
KP | 200002HF | KP ½NPT 2NC 1NO – HF actuator |
KP | 200002HF-SS | KP ½NPT 2NC 1NO SS head – HF actuator |
KP | 200002HFH | KP ½NPT 2NC 1NO – HFH actuator |
KP | 200002HFH-SS | KP ½NPT 2NC 1NO SS head – HFH actuator |
KP | 200002PF | KP ½NPT 2NC 1NO – PF actuator |
KP | 200002PF-SS | KP ½NPT 2NC 1NO SS head – PF actuator |
KP | 200003 | KP QC ½UNF 6way 2NC 1NO |
KP | 200003-SS | KP QC ½UNF 6way 2NC 1NO SS head |
KP | 200003A | KP QC ½UNF 6way 2NC 1NO – std actuator |
KP | 200003A-SS | KP QC ½UNF 6way 2NC 1NO SS head – std actuator |
KP | 200003F | KP QC ½UNF 6way 2NC 1NO – flat actuator |
KP | 200003F-SS | KP QC ½UNF 6way 2NC 1NO SS head – flat actuator |
KP | 200003HF | KP QC ½UNF 6way 2NC 1NO – HF actuator |
KP | 200003HF-SS | KP QC ½UNF 6way 2NC 1NO SS head – HF actuator |
KP | 200003HFH | KP QC ½UNF 6way 2NC 1NO – HFH actuator |
KP | 200003HFH-SS | KP QC ½UNF 6way 2NC 1NO SS head – HFH actuator |
KP | 200003PF | KP QC ½UNF 6way 2NC 1NO – PF actuator |
KP | 200003PF-SS | KP QC ½UNF 6way 2NC 1NO SS head – PF actuator |
KP | 200004 | KP M20 3NC |
KP | 200004-SS | KP M20 3NC SS head |
KP | 200004A | KP M20 3NC – std actuator |
KP | 200004A-SS | KP M20 3NC SS head – std actuator |
KP | 200004F | KP M20 3NC – flat actuator |
KP | 200004F-SS | KP M20 3NC SS head – flat actuator |
KP | 200004HF | KP M20 3NC – HF actuator |
KP | 200004HF-SS | KP M20 3NC SS head – HF actuator |
KP | 200004HFH | KP M20 3NC – HFH actuator |
KP | 200004HFH-SS | KP M20 3NC SS head – HFH actuator |
KP | 200004PF | KP M20 3NC – PF actuator |
KP | 200004PF-SS | KP M20 3NC SS head – PF actuator |
KP | 200005 | KP ½NPT 3NC |
KP | 200005-SS | KP ½NPT 3NC SS head |
KP | 200005A | KP ½NPT 3NC – std actuator |
KP | 200005A-SS | KP ½NPT 3NC SS head – std actuator |
KP | 200005F | KP ½NPT 3NC – flat actuator |
KP | 200005F-SS | KP ½NPT 3NC SS head – flat actuator |
KP | 200005HF | KP ½NPT 3NC – HF actuator |
KP | 200005HF-SS | KP ½NPT 3NC SS head – HF actuator |
KP | 200005HFH | KP ½NPT 3NC – HFH actuator |
KP | 200005HFH-SS | KP ½NPT 3NC SS head – HFH actuator |
KP | 200005PF | KP ½NPT 3NC – PF Actuator |
KP | 200005PF-SS | KP ½NPT 3NC SS head – PF actuator |
KP | 200006 | KP QC ½UNF 6way 3NC |
KP | 200006-SS | KP QC ½UNF 6way 3NC SS head |
KP | 200006A | KP QC ½UNF 6way 3NC – std actuator |
KP | 200006A-SS | KP QC ½UNF 6way 3NC SS head – std actuator |
KP | 200006F | KP QC ½UNF 6way 3NC – flat actuator |
KP | 200006F-SS | KP QC ½UNF 6way 3NC SS head – flat actuator |
KP | 200006HF | KP QC ½UNF 6way 3NC – HF actuator |
KP | 200006HF-SS | KP QC ½UNF 6way 3NC SS head – HF actuator |
KP | 200006HFH | KP QC ½UNF 6way 3NC – HFH actuator |
KP | 200006HFH-SS | KP QC ½UNF 6way 3NC SS head – HFH actuator |
KP | 200006PF | KP QC ½UNF 6way 3NC – PF actuator |
KP | 200006PF-SS | KP QC ½UNF 6way 3NC SS head – PF actuator |
KP | 200007 | KP M20 3NC 1NO |
KP | 200007-SS | KP M20 3NC 1NO SS head |
KP | 200007A | KP M20 3NC 1NO – std actuator |
KP | 200007A-SS | KP M20 3NC 1NO SS head – std actuator |
KP | 200007F | KP M20 3NC 1NO – flat actuator |
KP | 200007F-SS | KP M20 3NC 1NO SS head – flat actuator |
KP | 200007HF | KP M20 3NC 1NO – std actuator |
KP | 200007HF-SS | KP M20 3NC 1NO SS head – HF actuator |
KP | 200007HFH | KP M20 3NC 1NO – HFH actuator |
KP | 200007HFH-SS | KP M20 3NC 1NO SS head – HFH actuator |
KP | 200007PF | KP M20 3NC 1NO – PF actuator |
KP | 200007PF-SS | KP M20 3NC 1NO SS head – PF actuator |
KP | 200008 | KP ½NPT 3NC 1NO |
KP | 200008-SS | KP ½NPT 3NC 1NO SS head |
KP | 200008A | KP ½NPT 3NC 1NO – std actuator |
KP | 200008A-SS | KP ½NPT 3NC 1NO SS head – std actuator |
KP | 200008F | KP ½NPT 3NC 1NO – flat actuator |
KP | 200008F-SS | KP ½NPT 3NC 1NO SS head – flat actuator |
KP | 200008HF | KP ½NPT 3NC 1NO – HF actuator |
KP | 200008HF-SS | KP ½NPT 3NC 1NO SS head – HF actuator |
KP | 200008HFH | KP ½NPT 3NC 1NO – HFH actuator |
KP | 200008HFH-SS | KP ½NPT 3NC 1NO SS head – HFH actuator |
KP | 200008PF | KP ½NPT 3NC 1NO – PF actuator |
KP | 200008PF-SS | KP ½NPT 3NC 1NO SS head – PF actuator |
KP | 200010 | KP M20 2NC 2NO |
KP | 200010-SS | KP M20 2NC 2NO SS head |
KP | 200010A | KP M20 2NC 2NO – std actuator |
KP | 200010A-SS | KP M20 2NC 2NO SS head – std actuator |
KP | 200010F | KP M20 2NC 2NO – flat actuator |
KP | 200010F-SS | KP M20 2NC 2NO SS head – flat actuator |
KP | 200010HF | KP M20 2NC 2NO – HF actuator |
KP | 200010HF-SS | KP M20 2NC 2NO SS head – HF actuator |
KP | 200010HFH | KP M20 2NC 2NO – HFH actuator |
KP | 200010HFH-SS | KP M20 2NC 2NO SS head – HFH actuator |
KP | 200010PF | KP M20 2NC 2NO – PF actuator |
KP | 200010PF-SS | KP M20 2NC 2NO SS head – PF actuator |
KP | 200011 | KP ½NPT 2NC 2NO |
KP | 200011-SS | KP ½NPT 2NC 2NO SS head |
KP | 200011A | KP ½NPT 2NC 2NO – std actuator |
KP | 200011A-SS | KP ½NPT 2NC 2NO SS head – std actuator |
KP | 200011F | KP ½NPT 2NC 2NO – flat actuator |
KP | 200011F-SS | KP ½NPT 2NC 2NO SS head – flat actuator |
KP | 200011HF | KP ½NPT 2NC 2NO – HF Actuator |
KP | 200011HF-SS | KP ½NPT 2NC 2NO SS head – HF actuator |
KP | 200011HFH | KP ½NPT 2NC 2NO – HFH Actuator |
KP | 200011HFH-SS | KP ½NPT 2NC 2N SS head – HFH actuator |
KP | 200011PF | KP ½NPT 2NC 2NO – PF Actuator |
KP | 200011PF-SS | KP ½NPT 2NC 2NO SS head – PF actuator |
KP | 200013 | KP M20 4NC |
KP | 200013-SS | KP M20 4NC SS head |
KP | 200013A | KP M20 4NC – std actuator |
KP | 200013A-SS | KP M20 4NC SS head – std actuator |
KP | 200013F | KP M20 4NC – flat actuator |
KP | 200013F-SS | KP M20 4NC SS head – flat actuator |
KP | 200013HF | KP M20 4NC – HF Actuator |
KP | 200013HF-SS | KP M20 4NC SS head – PF actuator |
KP | 200013HFH | KP M20 4NC – HFH actuator |
KP | 200013HFH-SS | KP M20 4NC SS head – HFH actuator |
KP | 200013PF | KP M20 4NC – PF Actuator |
KP | 200013PF-SS | KP M20 4NC SS head – PF actuator |
KP | 200014 | KP ½NPT 4NC |
KP | 200014-SS | KP ½NPT 4NC’SS head |
KP | 200014A | KP ½NPT 4NC – std actuator |
KP | 200014A-SS | KP ½NPT 4NC SS head – std actuator |
KP | 200014F | KP ½NPT 4NC – flat actuator |
KP | 200014F-SS | KP ½NPT 4NC SS head – flat actuator |
KP | 200014HF | KP ½NPT 4NC – HF Actuator |
KP | 200014HF-SS | KP ½NPT 4NC SS head – HF actuator |
KP | 200014HFH | KP ½NPT 4NC – HFH actuator |
KP | 200014HFH-SS | KP ½NPT 4NC SS head – HFH actuator |
KP | 200014PF | KP ½NPT 4NC – PF Actuator |
KP | 200014PF-SS | KP ½NPT 4NC SS head – PF actuator |
KP | 200021 | KP QC M12 8way 2NC 1NO |
KP | 200021-SS | KP QC M12 8way 2NC 1NO SS head |
KP | 200021A | KP QC M12 8way 2NC 1NO – std actuator |
KP | 200021A-SS | KP QC M12 8way 2NC 1NO SS head – std actuator |
KP | 200021F | KP QC M12 8way 2NC 1NO – flat actuator |
KP | 200021F-SS | KP QC M12 8way 2NC 1NO SS head – flat actuator |
KP | 200021HF | KP QC M12 8way 2NC 1NO – HF actuator |
KP | 200021HF-SS | KP QC M12 8way 2NC 1NO SS head – HF actuator |
KP | 200021HFH | KP QC M12 8way 2NC 1NO – HFH actuator |
KP | 200021HFH-SS | KP QC M12 8way 2NC 1NO SS head – HFH actuator |
KP | 200021PF | KP QC M12 8way 2NC 1NO – PF actuator |
KP | 200021PF-SS | KP QC M12 8way 2NC 1NO SS head – PF actuator |
KP | 200022 | KP QC M12 8way 3NC |
KP | 200022-SS | KP QC M12 8way 3NC SS head |
KP | 200022A | KP QC M12 8way 3NC – std actuator |
KP | 200022A-SS | KP QC M12 8way 3NC SS head – std actuator |
KP | 200022F | KP QC M12 8way 3NC – flat actuator |
KP | 200022F-SS | KP QC M12 8way 3NC SS head – flat actuator |
KP | 200022HF | KP QC M12 8way 3NC – HF actuator |
KP | 200022HF-SS | KP QC M12 8way 3NC SS head – HF actuator |
KP | 200022HFH | KP QC M12 8way 3NC – HFH actuator |
KP | 200022HFH-SS | KP QC M12 8way 3NC SS head – HFH actuator |
KP | 200022PF | KP QC M12 8way 3NC – PF actuator |
KP | 200022PF-SS | KP QC M12 8way 3NC SS head – PF actuator |
KP | 200023 | KP QC M12 8way 3NC 1NO |
KP | 200023-SS | KP QC M12 8way 3NC 1NO SS head |
KP | 200023A | KP QC M12 8way 3NC 1NO – std actuator |
KP | 200023A-SS | KP QC M12 8way 3NC 1NO SS head – std actuator |
KP | 200023F | KP QC M12 8way 3NC 1NO – flat actuator |
KP | 200023F-SS | KP QC M12 8way 3NC 1NO SS head – flat actuator |
KP | 200023HF | KP QC M12 8way 3NC 1NO – HF actuator |
KP | 200023HF-SS | KP QC M12 8way 3NC 1NO SS head – HF actuator |
KP | 200023HFH | KP QC M12 8way 3NC 1NO – HFH actuator |
KP | 200023HFH-SS | KP QC M12 8way 3NC 1NO SS head – HFH actuator |
KP | 200023PF | KP QC M12 8way 3NC 1NO – PF actuator |
KP | 200023PF-SS | KP QC M12 8way 3NC 1NO SS head – PF actuator |
KP | 200024 | KP QC M12 8way 2NC 2NO |
KP | 200024-SS | KP QC M12 8way 2NC 2NO SS head |
KP | 200024A | KP QC M12 8way 2NC 2NO – std actuator |
KP | 200024A-SS | KP QC M12 8way 2NC 2NO SS head – std actuator |
KP | 200024F | KP QC M12 8way 2NC 2NO – flat actuator |
KP | 200024F-SS | KP QC M12 8way 2NC 2NO SS head – flat actuator |
KP | 200024HF | KP QC M12 8way 2NC 2NO – HF actuator |
KP | 200024HF-SS | KP QC M12 8way 2NC 2NO SS head – HF actuator |
KP | 200024HFH | KP QC M12 8way 2NC 2NO – HFH actuator |
KP | 200024HFH-SS | KP QC M12 8way 2NC 2NO SS head – HFH actuator |
KP | 200024PF | KP QC M12 8way 2NC 2NO – PF actuator |
KP | 200024PF-SS | KP QC M12 8way 2NC 2NO SS head – PF actuator |
KP | 200025 | KP QC M12 8way 4NC |
KP | 200025-SS | KP QC M12 8way 4NC SS head |
KP | 200025A | KP QC M12 8way 4NC – std actuator |
KP | 200025A-SS | KP QC M12 8way 4NC SS head – std actuator |
KP | 200025F | KP QC M12 8way 4NC – flat actuator |
KP | 200025F-SS | KP QC M12 8way 4NC SS head – flat actuator |
KP | 200025HF | KP QC M12 8way 4NC – HF Actuator |
KP | 200025HF-SS | KP QC M12 8way 4NC SS head – HF actuator |
KP | 200025HFH | KP QC M12 8way 4NC – HFH actuator |
KP | 200025HFH-SS | KP QC M12 8way 4NC SS head – HFH actuator |
KP | 200025PF | KP QC M12 8way 4NC – PF Actuator |
KP | 200025PF-SS | KP QC M12 8way 4NC SS head – PF actuator |
