Leírás és Paraméterek

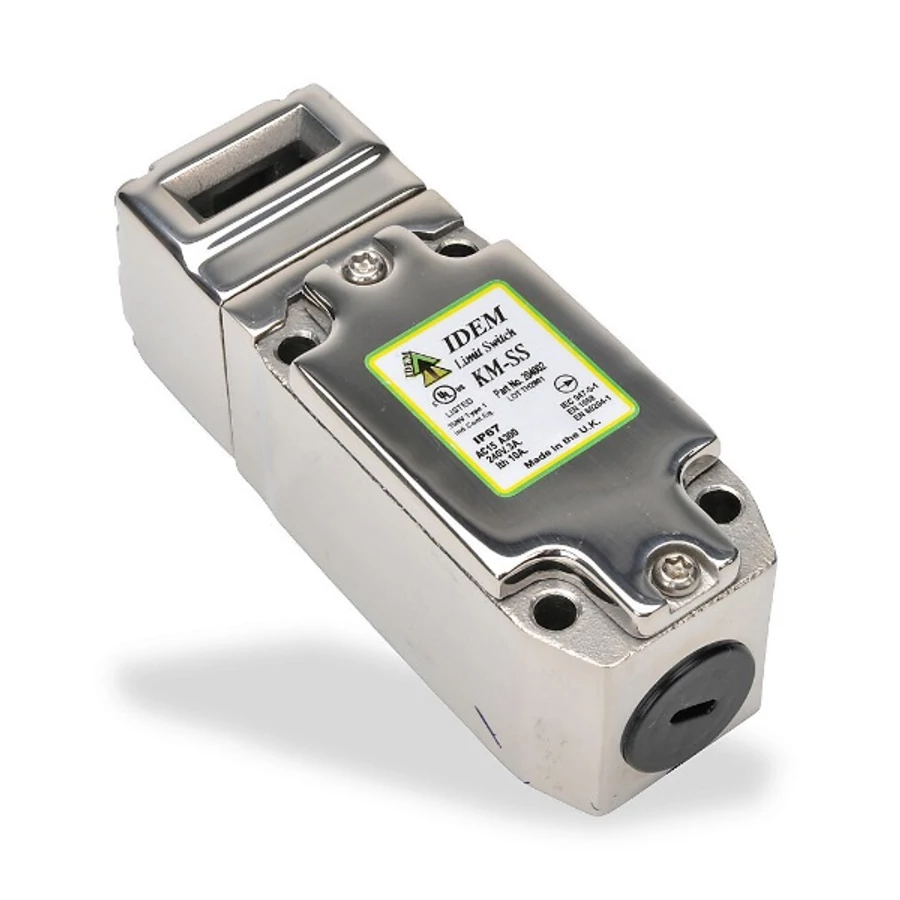

Az IDEM KM-SS HYGIECAM nyelves biztonsági kapcsoló polírozott rozsdamentes acél 316 házzal robusztus és tartós helyzet reteszelés-érzékelést biztosítson a kis mozgó védőburkolatok számára.
A KM-SS kompakt jellege lehetővé teszi, hogy illeszkedjen a csúszó vagy csuklós gép védőburkolatának éléhez még kevés rendelkezésre álló hely esetén is.
A polírozott felület (RA10) és az IP69K védettségi fokozatnak köszönhetően a KM-SS tökéletes választás az élelmiszer-feldolgozó és csomagológépekhez is
A masszív rozsdamentes acél működtető profil úgy lett kialakítva, hogy illeszkedjen a szabadalmaztatott bütyök mechanizmusához. Nagy tartó erővel rendelkező változatok állnak rendelkezésre olyan alkalmazásokhoz, ahol a rezgés kellemetlenséget okozhat.
A forgatható fejeknek kettős működtető bemeneti nyílása van, így akár 8 különböző belépési helyzet elérhető
A szűk sugarú védőburkolatokhoz rugalmas műanyag működtető is rendelkezésre áll.
Legfeljebb 4 pólusú érintkezők állnak rendelkezésre a modern vezérlőáramkörökhöz igazítva, és robbanásbiztos kontaktblokkal is kaphatóak.
További típusok:
Product Group | Part No. | Description |
KM-SS | 204001 | KM-SS M20 2NC 1NO |
KM-SS | 204001-40N | KM-SS M20 2NC 1NO- 40N |
KM-SS | 204001A | KM-SS M20 2NC 1NO – std actuator |
KM-SS | 204001F | KM-SS M20 2NC 1NO – flat actuator |
KM-SS | 204001HF | KM-SS M20 2NC 1NO – HF actuator |
KM-SS | 204001HFH | KM-SS M20 2NC 1NO – HFH actuator |
KM-SS | 204001PF | KM-SS M20 2NC 1NO – PF actuator |
KM-SS | 204002 | KM-SS ½NPT 2NC 1NO |
KM-SS | 204002A | KM-SS ½NPT 2NC 1NO – std actuator |
KM-SS | 204002F | KM-SS ½NPT 2NC 1NO – flat actuator |
KM-SS | 204002HF | KM-SS ½NPT 2NC 1NO – HF actuator |
KM-SS | 204002HFH | KM-SS ½NPT 2NC 1NO – HFH Actuator |
KM-SS | 204002PF | KM-SS ½NPT 2NC 1NO – PF actuator |
KM-SS | 204003 | KM-SS QC M23 12way 2NC 1NO |
KM-SS | 204003A | KM-SS QC M23 12way 2NC 1NO – std actuator |
KM-SS | 204003F | KM-SS QC M23 12way 2NC 1NO – flat actuator |
KM-SS | 204003HF | KM-SS QC M23 12way 2NC 1NO – HF actuator |
KM-SS | 204003HFH | KM-SS QC M23 12way 2NC 1NO – HFH actuator |
KM-SS | 204003PF | KM-SS QC M23 12way 2NC 1NO – PF actuator |
KM-SS | 204004 | KM-SS M20 3NC |
KM-SS | 204004A | KM-SS M20 3NC – std actuator |
KM-SS | 204004F | KM-SS M20 3NC – flat actuator |
KM-SS | 204004HF | KM-SS M20 3NC – HF actuator |
KM-SS | 204004HFH | KM-SS M20 3NC – HFH actuator |
KM-SS | 204004PF | KM-SS M20 3NC – PF actuator |
KM-SS | 204005 | KM-SS ½NPT 3NC |
KM-SS | 204005A | KM-SS ½NPT 3NC – std actuator |
KM-SS | 204005F | KM-SS ½NPT 3NC – flat actuator |
KM-SS | 204005HF | KM-SS ½NPT 3NC – HF actuator |
KM-SS | 204005HFH | KM-SS ½NPT 3NC – HFH actuator |
KM-SS | 204005PF | KM-SS ½NPT 3NC – PF actuator |
KM-SS | 204006 | KM-SS QC M23 12way 3NC |
KM-SS | 204006A | KM-SS QC M23 12way 3NC – std actuator |
KM-SS | 204006F | KM-SS QC M23 12way 3NC – flat actuator |
KM-SS | 204006HF | KM-SS QC M23 12way 3NC – HF actuator |
KM-SS | 204006HFH | KM-SS QC M23 12way 3NC – HFH actuator |
KM-SS | 204006PF | KM-SS QC M23 12way 3NC – PF actuator |
KM-SS | 204007 | KM-SS M20 3NC 1NO |
KM-SS | 204007A | KM-SS M20 3NC 1NO – std actuator |
KM-SS | 204007F | KM-SS M20 3NC 1NO – flat actuator |
KM-SS | 204007HF | KM-SS M20 3NC 1NO – HF actuator |
KM-SS | 204007HFH | KM-SS M20 3NC 1NO – HFH actuator |
KM-SS | 204007PF | KM-SS M20 3NC 1NO – PF actuator |
KM-SS | 204008 | KM-SS ½NPT 3NC 1NO |
KM-SS | 204008A | KM-SS ½NPT 3NC 1NO – std actuator |
KM-SS | 204008F | KM-SS ½NPT 3NC 1NO – flat actuator |
KM-SS | 204008HF | KM-SS ½NPT 3NC 1NO – HF actuator |
KM-SS | 204008HFH | KM-SS ½NPT 3NC 1NO – HFH actuator |
KM-SS | 204008PF | KM-SS ½NPT 3NC 1NO – PF actuator |
KM-SS | 204009 | KM-SS QC M23 12way 3NC 1NO |
KM-SS | 204009A | KM-SS QC M23 12way 3NC 1NO – std actuator |
KM-SS | 204009F | KM-SS QC M23 12way 3NC 1NO – flat actuator |
KM-SS | 204009HF | KM-SS QC M23 12way 3NC 1NO – HF actuator |
KM-SS | 204009HFH | KM-SS QC M23 12way 3NC 1NO – HFH actuator |
KM-SS | 204009PF | KM-SS QC M23 12way 3NC 1NO – PF actuator |
KM-SS | 204010 | KM-SS M20 2NC 2NO |
KM-SS | 204010A | KM-SS M20 2NC 2NO – std actuator |
KM-SS | 204010F | KM-SS M20 2NC 2NO – flat actuator |
KM-SS | 204010HF | KM-SS M20 2NC 2NO – HF actuator |
KM-SS | 204010HFH | KM-SS M20 2NC 2NO – HFH actuator |
KM-SS | 204010PF | KM-SS M20 2NC 2NO – PF actuator |
KM-SS | 204011 | KM-SS ½NPT 2NC 2NO |
KM-SS | 204011A | KM-SS ½NPT 2NC 2NO – std actuator |
KM-SS | 204011F | KM-SS ½NPT 2NC 2NO – flat actuator |
KM-SS | 204011HF | KM-SS ½NPT 2NC 2NO – HF actuator |
KM-SS | 204011HFH | KM-SS ½NPT 2NC 2NO – HFH actuator |
KM-SS | 204011PF | KM-SS ½NPT 2NC 2NO – PF actuator |
KM-SS | 204012 | KM-SS QC M23 12way 2NC 2NO |
KM-SS | 204012A | KM-SS QC M23 12way 2NC 2NO – std actuator |
KM-SS | 204012F | KM-SS QC M23 12way 2NC 2NO – flat actuator |
KM-SS | 204012HF | KM-SS QC M23 12way 2NC 2NO – HF actuator |
KM-SS | 204012HFH | KM-SS QC M23 12way 2NC 2NO – HFH actuator |
KM-SS | 204012PF | KM-SS QC M23 12way 2NC 2NO – PF actuator |
KM-SS | 204013 | KM-SS M20 4NC |
KM-SS | 204013A | KM-SS M20 4NC – std actuator |
KM-SS | 204013F | KM-SS M20 4NC – flat actuator |
KM-SS | 204013HF | KM-SS M20 4NC – HF actuator |
KM-SS | 204013HFH | KM-SS M20 4NC – HFH actuator |
KM-SS | 204013PF | KM-SS M20 4NC – PF actuator |
KM-SS | 204014 | KM-SS ½NPT 4NC |
KM-SS | 204014A | KM-SS ½NPT 4NC – std actuator |
KM-SS | 204014F | KM-SS ½NPT 4NC – flat actuator |
KM-SS | 204014HF | KM-SS ½NPT 4NC – HF actuator |
KM-SS | 204014HFH | KM-SS ½NPT 4NC – HFH actuator |
KM-SS | 204014PF | KM-SS ½NPT 4NC – PF actuator |
KM-SS | 204015 | KM-SS QC M23 12way 4NC |
KM-SS | 204015A | KM-SS QC M23 12way 4NC – std actuator |
KM-SS | 204015F | KM-SS QC M23 12way 4NC – flat actuator |
KM-SS | 204015HF | KM-SS QC M23 12way 4NC – HF Actuator |
KM-SS | 204015HFH | KM-SS QC M23 12way 4NC – HFH Actuator |
KM-SS | 204015PF | KM-SS QC M23 12way 4NC – PF actuator |
KM-SS | 204021 | KM-SS QC M12 8way 2NC 1NO |
KM-SS | 204021A | KM-SS QC M12 8way 2NC 1NO – std actuator |
KM-SS | 204021F | KM-SS QC M12 8way 2NC 1NO – flat actuator |
KM-SS | 204021HF | KM-SS QC M12 8way 2NC 1NO – HF actuator |
KM-SS | 204021HFH | KM-SS QC M12 8way 2NC 1NO – HFH actuator |
KM-SS | 204021PF | KM-SS QC M12 8way 2NC 1NO – PF actuator |
KM-SS | 204022 | KM-SS QC M12 8way 3NC |
KM-SS | 204022A | KM-SS QC M12 8way 3NC – std actuator |
KM-SS | 204022F | KM-SS QC M12 8way 3NC – flat actuator |
KM-SS | 204022HF | KM-SS QC M12 8way 3NC – HF actuator |
KM-SS | 204022HFH | KM-SS QC M12 8way 3NC – HFH actuator |
KM-SS | 204022PF | KM-SS QC M12 8way 3NC – PF actuator |
