Leírás és Paraméterek

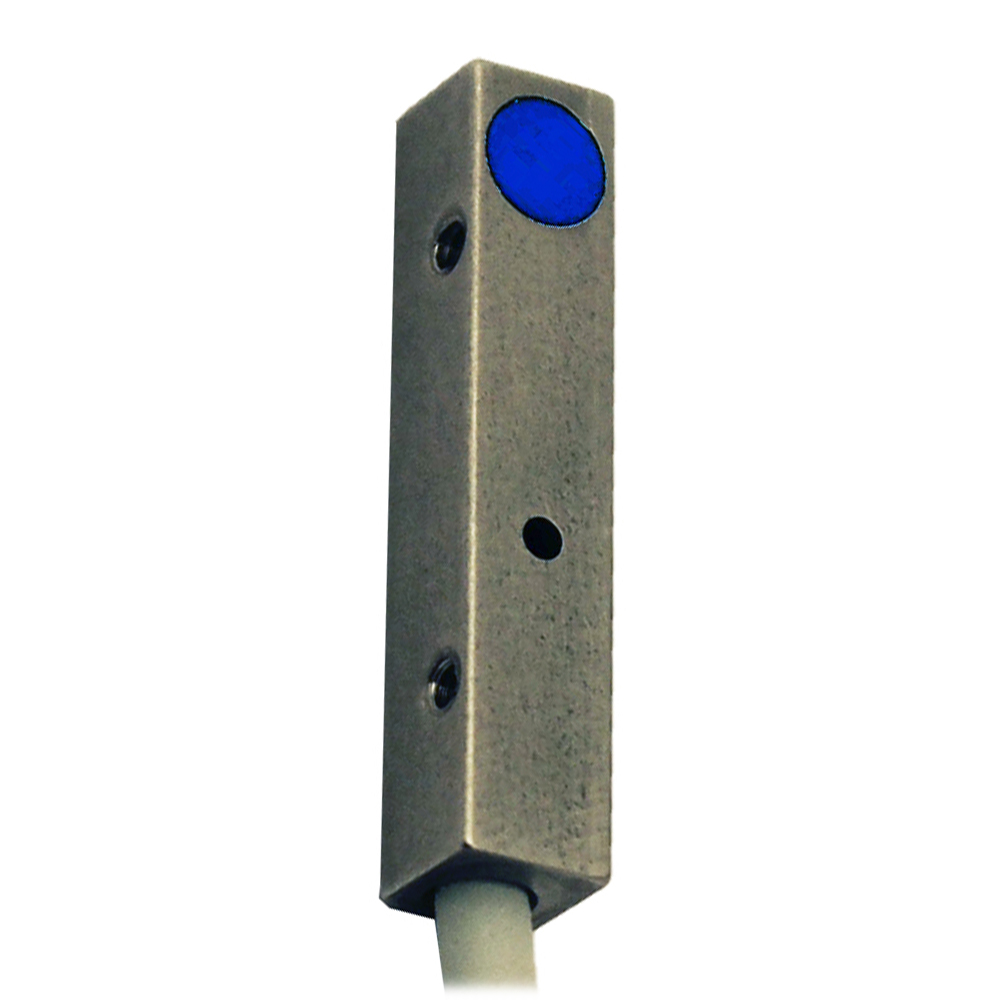

Datasensing / M.D. IL5 Induktív Érzékelők
Mini Téglatest kialakítású induktív érzékelők teljes választéka 5 x 5 mm házmérettel IP67 védettséggel
| Funkció | Induktív Érzékelő |
| Kimenet | NPN NO |
| Nominal sensing distance | 0,8mm |
| Operanting distance | 0…0,65mm |
| Standard target | 5x5mm FE360 |
| Correction Factor | copper:0,37 ± 10% / aluminium:0,27 ± 10% / brass:0,40 ± 10% / stainless steel:0,61 ± 10% |
| Thermal drift of Sr | < 10% |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Hysteresis | 1 … 20% |
| Output type | NPN |
| Output Function | NO |
| Switching frequency | ≤ 7kHz |
| Operating Voltage | 10...30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤ 100mA |
| Leakage current | ≤ 10μA |
| Output voltage drop | ≤ 1,5V @100mA |
| Max ripple content | ≤10% |
| LED indicators | Blue LED output state |
| Time delay before availability | ≤ 50ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Protection against inductive loads | Yes |
| Mounting | Shielded |
| Dimensions | 5 x 5 / L = 25mm |
| Weight | 35g |
| Housing Material | AISI 303 Stainless Steel |
| Connections | 2m PUR Cable |
| Active Head Material | PBT |
| Operating temperature | -25°C…+70°C |
| Diameter/Dimension | 5x5x25mm |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | 2 Screws M1.6x0.35L10 |
| Dimensions | 5 x 5 / L = 25mm |
| Operating Temperature | -25°C…+70°C |
| Mechanical Protection | IP67 |
