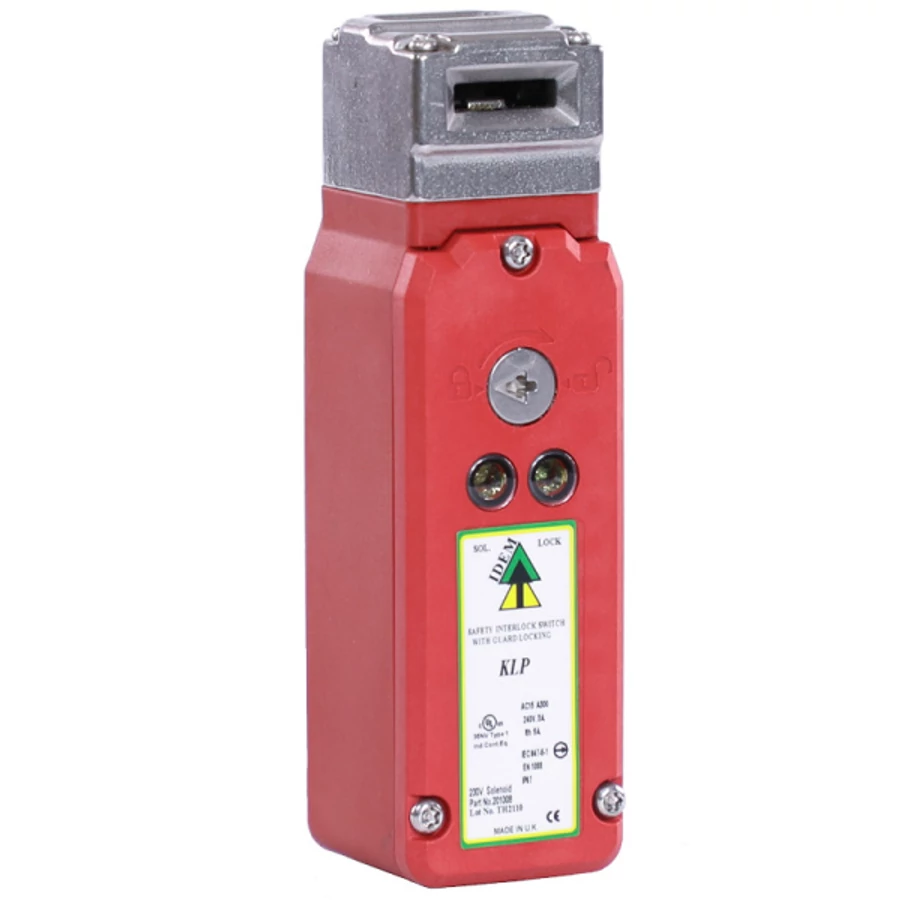

KLP Elektromágneses reteszelésű biztonsági kapcsolók SEZYLOCK (2000N)
Az IDEM KLP egy elektromágneses reteszelésű biztonsági kapcsoló, magas minőségű poliészter tokozat és rozsdamentes acél reteszelő fej.
A KLP az IDEM szabadalmaztatott, szabotázsgátló mechanizmussal rendelkezik, amely hosszú távú megbízhatóságot nyújt a legnagyobb kihívást jelentő környezetekben is. Az IP67 védettséget kettős tömítés és rozsdamentes acél belső csavarok által tartósan biztosított.
Jellemzők:- Test anyaga: Magas specifikációjú poliészter - piros
- Fej anyaga: 316 rozsdamentes acél
- Tartási erő: F1Max 2000N
- 360°-ban forgatható fej, 8 lehetséges aktuátor pozíció
- Mágnes feszültség: 24Vac, 110Vac vagy 230Vac
- IP Védettség: IP67
- Belső kapcsoló a Zár státusz visszajelzés típusának kiválasztásához: LED2 vagy kiegészítő kimenet használata
Rendelés esetén 4 különböző működtető fej közül választhat:
- A = normál
- F = lapos
- HF = nagy teherbírású rugalmas
- HFH = nagy teherbírású rugalmas higiénikus
| Termék | Cikkszám | Leírás |
|---|---|---|
| KLP | 201001 | KLP M20 24v (std release) |
| KLP | 201001A | KLP M20 24v (std release) – std actuator |
| KLP | 201001F | KLP M20 24v (std release) – flat actuator |
| KLP | 201001HF | KLP M20 24v (std release) – HF actuator |
| KLP | 201001HFH | KLP M20 24v (std release) – HFH actuator |
| KLP | 201002 | KLP ½NPT 24v (std release) |
| KLP | 201002A | KLP ½NPT 24v (std release) – std actuator |
| KLP | 201002F | KLP ½NPT 24v (std release) – flat actuator |
| KLP | 201002HF | KLP ½NPT 24v (std release) – HF actuator |
| KLP | 201002HFH | KLP ½NPT 24v (std release) – HFH actuator |
| KLP | 201003 | KLP QC M23 12way 24v (std release) |
| KLP | 201003A | KLP QC M23 12way 24v (std release) – std actuator |
| KLP | 201003F | KLP QC M23 12way 24v (std release) – flat actuator |
| KLP | 201003HF | KLP QC M23 12way 24v (std release) – HF actuator |
| KLP | 201003HFH | KLP QC M23 12way 24v (std release) – HFH actuator |
| KLP | 201004 | KLP M20 110v (std release) |
| KLP | 201004A | KLP M20 110v (std release) – std actuator |
| KLP | 201004F | KLP M20 110v (std release) – flat actuator |
| KLP | 201004HF | KLP M20 110v (std release) – HF actuator |
| KLP | 201004HFH | KLP M20 110v (std release) – HFH actuator |
| KLP | 201005 | KLP ½NPT 110v (std release) |
| KLP | 201005A | KLP ½NPT 110v (std release) – std actuator |
| KLP | 201005F | KLP ½NPT 110v (std release) – flat actuator |
| KLP | 201005HF | KLP ½NPT 110v (std release) – HF actuator |
| KLP | 201005HFH | KLP ½NPT 110v (std release) – HFH actuator |
| KLP | 201006 | KLP QC M23 12way 110v (std release) |
| KLP | 201006A | KLP QC M23 12way 110v (std release) – std actuator |
| KLP | 201006F | KLP QC M23 12way 110v (std release) – flat actuator |
| KLP | 201006HF | KLP QC M23 12way 110v (std release) – HF actuator |
| KLP | 201006HFH | KLP QC M23 12way 110v (std release) – HFH actuator |
| KLP | 201007 | KLP M20 230v (std release) |
| KLP | 201007A | KLP M20 230v (std release) – std actuator |
| KLP | 201007F | KLP M20 230v (std release) – flat actuator |
| KLP | 201007HF | KLP M20 230v (std release) – HF actuator |
| KLP | 201007HFH | KLP M20 230v (std release) – HFH actuator |
| KLP | 201008 | KLP ½NPT 230v (std release) |
| KLP | 201008A | KLP ½NPT 230v (std release) – std actuator |
| KLP | 201008F | KLP ½NPT 230v (std release) – flat actuator |
| KLP | 201008HF | KLP ½NPT 230v (std release) – HF actuator |
| KLP | 201008HFH | KLP ½NPT 230v (std release) – HFH actuator |
| KLP | 201009 | KLP QC M23 12way 230v (std release) |
| KLP | 201009A | KLP QC M23 12way 230v (std release) – std actuator |
| KLP | 201009F | KLP QC M23 12way 230v (std release) – flat actuator |
| KLP | 201009HF | KLP QC M23 12way 230v (std release) – HF actuator |
| KLP | 201009HFH | KLP QC M23 12way 230v (std release) – HFH actuator |
| KLP | 201301 | KLP M20 24v (no release) |
| KLP | 201301A | KLP M20 24v (no release) – std actuator |
| KLP | 201301F | KLP M20 24v (no release) – flat actuator |
| KLP | 201301HF | KLP M20 24v (no release) – HF actuator |
| KLP | 201301HFH | KLP M20 24v (no release) – HFH actuator |
| KLP | 201302 | KLP ½NPT 24v (no release) |
| KLP | 201302A | KLP ½NPT 24v (no release) – std actuator |
| KLP | 201302F | KLP ½NPT 24v (no release) – flat actuator |
| KLP | 201302HF | KLP ½NPT 24v (no release) – HF actuator |
| KLP | 201302HFH | KLP ½NPT 24v (no release) – HFH actuator |
| KLP | 201303 | KLP QC M23 12way 24v (no release) |
| KLP | 201303A | KLP QC M23 12way 24v (no release) – std actuator |
| KLP | 201303F | KLP QC M23 12way 24v (no release) – flat actuator |
| KLP | 201303HF | KLP QC M23 12way 24v (no release) – HF actuator |
| KLP | 201303HFH | KLP QC M23 12way 24v (no release) – HFH actuator |
| KLP | 201304 | KLP M20 110v (no release) |
| KLP | 201304A | KLP M20 110v (no release) – std actuator |
| KLP | 201304F | KLP M20 110v (no release) – flat actuator |
| KLP | 201304HF | KLP M20 110v (no release) – HF actuator |
| KLP | 201304HFH | KLP M20 110v (no release) – HFH actuator |
| KLP | 201305 | KLP ½NPT 110v (no release) |
| KLP | 201305A | KLP ½NPT 110v (no release) – std actuator |
| KLP | 201305F | KLP ½NPT 110v (no release) – flat actuator |
| KLP | 201305HF | KLP ½NPT 110v (no release) – HF actuator |
| KLP | 201305HFH | KLP ½NPT 110v (no release) – HFH actuator |
| KLP | 201306 | KLP QC M23 12way 110v (no release) |
| KLP | 201306A | KLP QC M23 12way 110v (no release) – std actuator |
| KLP | 201306F | KLP QC M23 12way 110v (no release) – flat actuator |
| KLP | 201306HF | KLP QC M23 12way 110v (no release) – HF actuator |
| KLP | 201306HFH | KLP QC M23 12way 110v (no release) – HFH actuator |
| KLP | 201307 | KLP M20 230v (no release) |
| KLP | 201307A | KLP M20 230v (no release) – std actuator |
| KLP | 201307F | KLP M20 230v (no release) – flat actuator |
| KLP | 201307HF | KLP M20 230v (no release) – HF Actuator |
| KLP | 201307HFH | KLP M20 230v (no release) – HFH Actuator |
| KLP | 201308 | KLP ½NPT 230v (no release) |
| KLP | 201308A | KLP ½NPT 230v (no release) – std actuator |
| KLP | 201308F | KLP ½NPT 230v (no release) – flat actuator |
| KLP | 201308HF | KLP ½NPT 230v (no release) – HF Actuator |
| KLP | 201308HFH | KLP ½NPT 230v (no release) – HFH Actuator |
| KLP | 201309 | KLP QC M23 12way 230v (no release) |
| KLP | 201309A | KLP QC M23 12way 230v (no release) – std actuator |
| KLP | 201309F | KLP QC M23 12way 230v (no release) – flat actuator |
| KLP | 201309HF | KLP QC M23 12way 230v (no release) – HF Actuator |
| KLP | 201309HFH | KLP QC M23 12way 230v (no release) – HFH Actuator |
| KLP | 201401 | KLP M20 24v (lid release) |
| KLP | 201401A | KLP M20 24v (lid release) – std actuator |
| KLP | 201401F | KLP M20 24v (lid release) – flat actuator |
| KLP | 201401HF | KLP M20 24v (lid release) – HF actuator |
| KLP | 201401HFH | KLP M20 24v (lid release) – HFH actuator |
| KLP | 201402 | KLP ½NPT 24v (lid release) |
| KLP | 201402A | KLP ½NPT 24v (lid release) – std actuator |
| KLP | 201402F | KLP ½NPT 24v (lid release) – flat actuator |
| KLP | 201402HF | KLP ½NPT 24v (lid release) – HF actuator |
| KLP | 201402HFH | KLP ½NPT 24v (lid release) – HFH actuator |
| KLP | 201403 | KLP QC M23 12way 24v (lid release) |
| KLP | 201403A | KLP QC M23 12way 24v (lid release) – std actuator |
| KLP | 201403F | KLP QC M23 12way 24v (lid release) – flat actuator |
| KLP | 201403HF | KLP QC M23 12way 24v (lid release) – HF actuator |
| KLP | 201403HFH | KLP QC M23 12way 24v (lid release) – HFH actuator |
| KLP | 201404 | KLP M20 110v (lid release) |
| KLP | 201404A | KLP M20 110v (lid release) – std actuator |
| KLP | 201404F | KLP M20 110v (lid release) – flat actuator |
| KLP | 201404HF | KLP M20 110v (lid release) – HF actuator |
| KLP | 201404HFH | KLP M20 110v (lid release) – HFH actuator |
| KLP | 201405 | KLP ½NPT 110v (lid release) |
| KLP | 201405A | KLP ½NPT 110v (lid release) – std actuator |
| KLP | 201405F | KLP ½NPT 110v (lid release) – flat actuator |
| KLP | 201405HF | KLP ½NPT 110v (lid release) – HF actuator |
| KLP | 201405HFH | KLP ½NPT 110v (lid release) – HFH actuator |
| KLP | 201406 | KLP QC M23 12way 110v (lid release) |
| KLP | 201406A | KLP QC M23 12way 110v (lid release) – std actuator |
| KLP | 201406F | KLP QC M23 12way 110v (lid release) – flat actuator |
| KLP | 201406HF | KLP QC M23 12way 110v (lid release) – HF actuator |
| KLP | 201406HFH | KLP QC M23 12way 110v (lid release) – HFH actuator |
| KLP | 201407 | KLP M20 230v (lid release) |
| KLP | 201407A | KLP M20 230v (lid release) – std actuator |
| KLP | 201407F | KLP M20 230v (lid release) – flat actuator |
| KLP | 201407HF | KLP M20 230v (lid release) – HF actuator |
| KLP | 201407HFH | KLP M20 230v (lid release) – HFH actuator |
| KLP | 201408 | KLP ½NPT 230v (lid release) |
| KLP | 201408A | KLP ½NPT 230v (lid release) – std actuator |
| KLP | 201408F | KLP ½NPT 230v (lid release) – flat actuator |
| KLP | 201408HF | KLP ½NPT 230v (lid release) – HF actuator |
| KLP | 201408HFH | KLP ½NPT 230v (lid release) – HFH actuator |
| KLP | 201409 | KLP QC M23 12way 230v (lid release) |
| KLP | 201409A | KLP QC M23 12way 230v (lid release) – std actuator |
| KLP | 201409F | KLP QC M23 12way 230v (lid release) – flat actuator |
| KLP | 201409HF | KLP QC M23 12way 230v (lid release) – HF actuator |
| KLP | 201409HFH | KLP QC M23 12way 230v (lid release) – HFH actuator |
