Leírás és Paraméterek

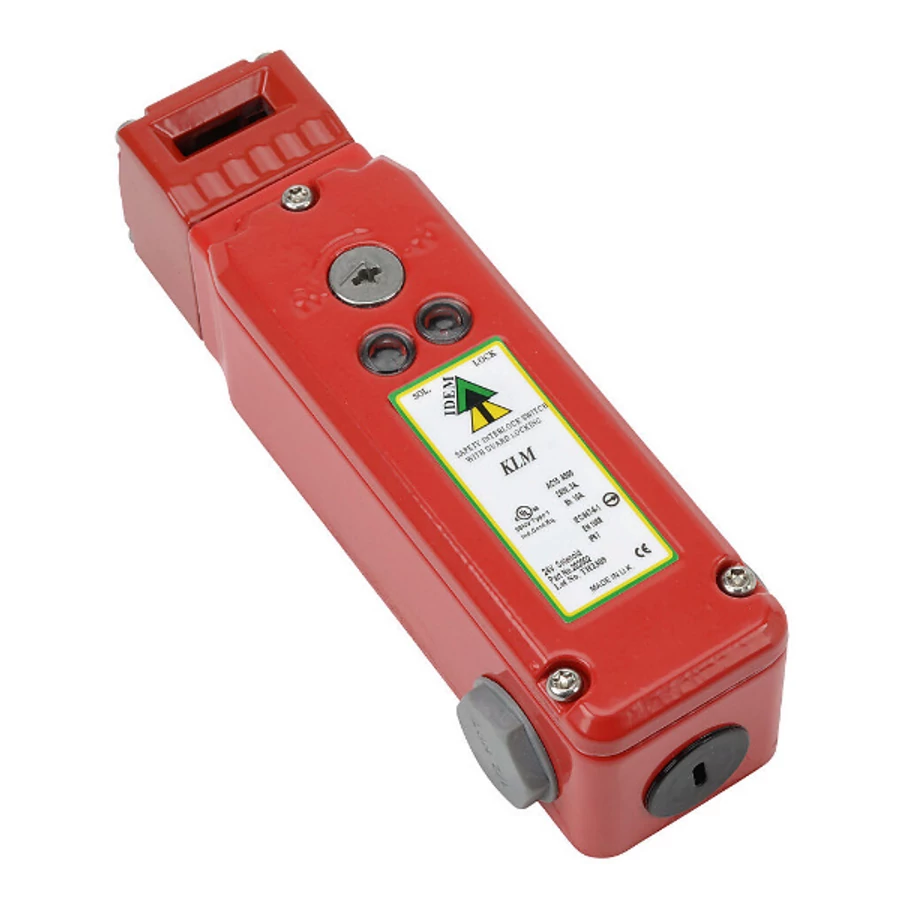

KLM Elektromágneses Reteszelésű Biztonsági Kapcsolók (3000N)
Az IDEM KLM egy elektromágneses reteszelésű biztonsági kapcsoló, rendkívül masszív fém öntvény tokozattal.
A KLM az IDEM szabadalmaztatott, szabotázsgátló mechanizmussal rendelkezik, amely hosszú távú megbízhatóságot nyújt a legnagyobb kihívást jelentő környezetekben is. Az IP67 védettséget kettős tömítés és rozsdamentes acél belső csavarok által tartósan biztosított.
Jellemzők:
- Anyaga: Fém öntvény
- Tartási erő: F1Max 3000N
- Mágnes feszültség: 24Vac, 110Vac vagy 230Vac
- Működés: Elforgatható fej, Oldalsó és Felső működtető nyílás
- Védelem: IP67
- Belső kapcsoló a Zár státusz visszajelzés típusának kiválasztásához: LED2 vagy kiegészítő kimenet használata
Rendelés esetén 4 különböző működtető fej közül választhat:
- A = normál
- F = lapos
- HF = nagy teherbírású rugalmas
- HFH = nagy teherbírású rugalmas higiénikus
Termék | Cikkszám | Leírás |
---|---|---|
KLM | 202001 | KLM M20 24v (std release) |
KLM | 202001-SS | KLM M20 24v (std release) SS head |
KLM | 202001A | KLM M20 24v (std release) – std actuator |
KLM | 202001A-SS | KLM M20 24v (std release) SS head – std actuator |
KLM | 202001F | KLM M20 24v (std release) – flat actuator |
KLM | 202001F-SS | KLM M20 24v (std release) SS head – flat actuator |
KLM | 202001HF | KLM M20 24v (std release) – HF actuator |
KLM | 202001HF-SS | KLM M20 24v (std release) SS head – HF actuator |
KLM | 202001HFH | KLM M20 24v (std release) – HFH actuator |
KLM | 202001HFH-SS | KLM M20 24v (std release) SS head – HFH actuator |
KLM | 202002 | KLM ½NPT 24v (std release) |
KLM | 202002-SS | KLM ½NPT 24v (std release) SS head |
KLM | 202002A | KLM ½NPT 24v (std release) – std actuator |
KLM | 202002A-SS | KLM ½NPT 24v (std release) SS head – std actuator |
KLM | 202002F | KLM ½NPT 24v (std release) – flat actuator |
KLM | 202002F-SS | KLM ½NPT 24v (std release) SS head – flat actuator |
KLM | 202002HF | KLM ½NPT 24v (std release) – HF actuator |
KLM | 202002HF-SS | KLM ½NPT 24v (std release) SS head – HF actuator |
KLM | 202002HFH | KLM ½NPT 24v (std release) – HFH actuator |
KLM | 202002HFH-SS | KLM ½NPT 24v (std release) SS head – HFH actuator |
KLM | 202003 | KLM QC M23 12way 24v (std release) |
KLM | 202003-SS | KLM QC M23 12way 24v (std release) SS head |
KLM | 202003A | KLM QC M23 12way 24v (std release) – std actuator |
KLM | 202003A-SS | KLM QC M23 12way 24v (std release) SS head – std actuator |
KLM | 202003F | KLM QC M23 12way 24v (std release) – flat actuator |
KLM | 202003F-SS | KLM QC M23 12way 24v (std release) SS head – flat actuator |
KLM | 202003HF | KLM QC M23 12way 24v (std release) – HF actuator |
KLM | 202003HF-SS | KLM QC M23 12way 24v (std release) SS head – HF actuator |
KLM | 202003HFH | KLM QC M23 12way 24v (std release) – HFH actuator |
KLM | 202003HFH-SS | KLM QC M23 12way 24v (std release) SS head – HFH actuator |
KLM | 202004 | KLM M20 110v (std release) |
KLM | 202004-SS | KLM M20 110v (std release) SS head |
KLM | 202004A | KLM M20 110v (std release) – std actuator |
KLM | 202004A-SS | KLM M20 110v (std release) SS head – std actuator |
KLM | 202004F | KLM M20 110v (std release) – flat actuator |
KLM | 202004F-SS | KLM M20 110v (std release) SS Head – flat actuator |
KLM | 202004HF | KLM M20 110v (std release) – HF actuator |
KLM | 202004HF-SS | KLM M20 110v (std release) SS head – HF actuator |
KLM | 202004HFH | KLM M20 110v (std release) – HFH actuator |
KLM | 202004HFH-SS | KLM M20 110v (std release) SS head – HFH actuator |
KLM | 202005 | KLM ½NPT 110v (std release) |
KLM | 202005-SS | KLM ½NPT 110v (std release) SS head |
KLM | 202005A | KLM ½NPT 110v (std release) – std actuator |
KLM | 202005A-SS | KLM ½NPT 110v (std release) SS head – std actuator |
KLM | 202005F | KLM ½NPT 110v (std release) – flat actuator |
KLM | 202005F-SS | KLM ½NPT 110v (std release) SS head – flat actuator |
KLM | 202005HF | KLM ½NPT 110v (std release) – HF actuator |
KLM | 202005HF-SS | KLM ½NPT 110v (std release) SS head – HF actuator |
KLM | 202005HFH | KLM ½NPT 110v (std release) – HFH actuator |
KLM | 202005HFH-SS | KLM ½NPT 110v (std release) SS head – HFH actuator |
KLM | 202005SS-SEN | KLM ½NPT 110v (std release) SS head |
KLM | 202006 | KLM QC M23 12way 110v (std release) |
KLM | 202006-SS | KLM QC M23 12way 110v (std release) SS head |
KLM | 202006A | KLM QC M23 12way 110v (std release) – std actuator |
KLM | 202006A-SS | KLM QC M23 12way 110v (std release) SS head – std actuator |
KLM | 202006F | KLM QC M23 12way 110v (std release) – flat actuator |
KLM | 202006F-SS | KLM QC M23 12way 110v (std release) SS head – flat actuator |
KLM | 202006HF | KLM QC M23 12way 110v (std release) – HF actuator |
KLM | 202006HF-SS | KLM QC M23 12way 110v (std release) SS head – HF actuator |
KLM | 202006HFH | KLM QC M23 12way 110v (std release) – HFH actuator |
KLM | 202006HFH-SS | KLM QC M23 12way 110v (std release) SS head – HFH actuator |
KLM | 202007 | KLM M20 230V (std release) |
KLM | 202007-SS | KLM M20 230V (std release) SS head |
KLM | 202007A | KLM M20 230V (std release) – std actuator |
KLM | 202007A-SS | KLM M20 230V (std release) SS head – std actuator |
KLM | 202007F | KLM M20 230V (std release) – flat actuator |
KLM | 202007F-SS | KLM M20 230V (std release) SS head – flat actuator |
KLM | 202007HF | KLM M20 230V (std release) – HF actuator |
KLM | 202007HF-SS | KLM M20 230V (std release) SS head – HF actuator |
KLM | 202007HFH | KLM M20 230V (std release) – HFH actuator |
KLM | 202007HFH-SS | KLM M20 230V (std release) SS head – HFH actuator |
KLM | 202008 | KLM ½NPT 230V (std release) |
KLM | 202008-SS | KLM ½NPT 230V (std release) SS head |
KLM | 202008A | KLM ½NPT 230V (std release) – std actuator |
KLM | 202008A-SS | KLM ½NPT 230V (std release) SS head – std actuator |
KLM | 202008F | KLM ½NPT 230V (std release) – flat actuator |
KLM | 202008F-SS | KLM ½NPT 230V (std release) SS head – flat actuator |
KLM | 202008HF | KLM ½NPT 230V (std release) – HF actuator |
KLM | 202008HF-SS | KLM ½NPT 230V (std release) SS head – HF actuator |
KLM | 202008HFH | KLM ½NPT 230V (std release) – HFH actuator |
KLM | 202008HFH-SS | KLM ½NPT 230V (std release) SS head – HFH actuator |
KLM | 202009 | KLM QC M23 12way 230V (std release) |
KLM | 202009-SS | KLM QC M23 12way 230V (std release) SS head |
KLM | 202009A | KLM QC M23 12way 230V (std release) – std actuator |
KLM | 202009A-SS | KLM QC M23 12way 230V (std release) SS Head – std actuator |
KLM | 202009F | KLM QC M23 12way 230V (std release) – flat actuator |
KLM | 202009F-SS | KLM QC M23 12way 230V (std release) SS head – flat actuator |
KLM | 202009HF | KLM QC M23 12way 230V (std release) – HF actuator |
KLM | 202009HF-SS | KLM QC M23 12way 230V (std release) SS head – HF actuator |
KLM | 202009HFH | KLM QC M23 12way 230V (std release) – HFH actuator |
KLM | 202009HFH-SS | KLM QC M23 12way 230V (std release) SS head – HFH actuator |
KLM | 202301 | KLM M20 24v (no release) |
KLM | 202301-SS | KLM M20 24v (no release) SS head |
KLM | 202301A | KLM M20 24v (no release) – std actuator |
KLM | 202301A-SS | KLM M20 24v (no release) SS head – std actuator |
KLM | 202301F | KLM M20 24v (no release) – flat actuator |
KLM | 202301F-SS | KLM M20 24v (no release) SS head – flat actuator |
KLM | 202301HF | KLM M20 24v (no release) – HF actuator |
KLM | 202301HF-SS | KLM M20 24v (no release) SS head – HF actuator |
KLM | 202301HFH | KLM M20 24v (no release) – HFH actuator |
KLM | 202301HFH-SS | KLM M20 24v (no release) SS head – HFH actuator |
KLM | 202302 | KLM ½NPT 24v (no release) |
KLM | 202302-SS | KLM ½NPT 24v (no release) SS head |
KLM | 202302A | KLM ½NPT 24v (no release) – std actuator |
KLM | 202302A-SS | KLM ½NPT 24v (no release) SS head – std actuator |
KLM | 202302F | KLM ½NPT 24v (no release) – flat actuator |
KLM | 202302F-SS | KLM ½NPT 24v (no release) SS head – flat actuator |
KLM | 202302HF | KLM ½NPT 24v (no release) – HF actuator |
KLM | 202302HF-SS | KLM ½NPT 24v (no release) SS head – HF actuator |
KLM | 202302HFH | KLM ½NPT 24v (no release) – HFH actuator |
KLM | 202302HFH-SS | KLM ½NPT 24v (no release) SS head – HFH actuator |
KLM | 202303 | KLM QC M23 12way 24v (no release) |
KLM | 202303-SS | KLM QC M23 12way 24v (no release) SS head |
KLM | 202303A | KLM QC M23 12way 24v (no release) – std actuator |
KLM | 202303A-SS | KLM QC M23 12way 24v (no release) SS head – std actuator |
KLM | 202303F | KLM QC M23 12way 24v (no release) – flat actuator |
KLM | 202303F-SS | KLM QC M23 12way 24v (no release) SS head – flat actuator |
KLM | 202303HF | KLM QC M23 12way 24v (no release) – HF actuator |
KLM | 202303HF-SS | KLM QC M23 12way 24v (no release) SS head – HF actuator |
KLM | 202303HFH | KLM QC M23 12way 24v (no release) – HFH actuator |
KLM | 202303HFH-SS | KLM QC M23 12way 24v (no release) SS head – HFH actuator |
KLM | 202304 | KLM M20 110v (no release) |
KLM | 202304-SS | KLM M20 110v (no release) SS head |
KLM | 202304A | KLM M20 110v (no release) – std actuator |
KLM | 202304A-SS | KLM M20 110v (no release) SS head – std actuator |
KLM | 202304F | KLM M20 110v (no release) – flat actuator |
KLM | 202304F-SS | KLM M20 110v (no release) SS Head – flat actuator |
KLM | 202304HF | KLM M20 110v (no release) – HF actuator |
KLM | 202304HF-SS | KLM M20 110v (no release) SS head – HF actuator |
KLM | 202304HFH | KLM M20 110v (no release) – HFH actuator |
KLM | 202304HFH-SS | KLM M20 110v (no release) SS head – HFH actuator |
KLM | 202305 | KLM ½NPT 110v (no release) |
KLM | 202305-SS | KLM ½NPT 110v (no release) SS head |
KLM | 202305A | KLM ½NPT 110v (no release) – std actuator |
KLM | 202305A-SS | KLM ½NPT 110v (no release) SS head – std actuator |
KLM | 202305F | KLM ½NPT 110v (no release) – flat actuator |
KLM | 202305F-SS | KLM ½NPT 110v (no release) SS head – flat actuator |
KLM | 202305HF | KLM ½NPT 110v (no release) – HF actuator |
KLM | 202305HF-SS | KLM ½NPT 110v (no release) SS head – HF actuator |
KLM | 202305HFH | KLM ½NPT 110v (no release) – HFH actuator |
KLM | 202305HFH-SS | KLM ½NPT 110v (no release) SS head – HFH actuator |
KLM | 202306 | KLM QC M23 12way 110v (no release) |
KLM | 202306-SS | KLM QC M23 12way 110v (no release) SS head |
KLM | 202306A | KLM QC M23 12way 110v (no release) – std actuator |
KLM | 202306A-SS | KLM QC M23 12way 110v (no release) SS head – std actuator |
KLM | 202306F | KLM QC M23 12way 110v (no release) – flat actuator |
KLM | 202306F-SS | KLM QC M23 12way 110v (no release) SS head – flat actuator |
KLM | 202306HF | KLM QC M23 12way 110v (no release) – HF actuator |
KLM | 202306HF-SS | KLM QC M23 12way 110v (no release) SS head – HF actuator |
KLM | 202306HFH | KLM QC M23 12way 110v (no release) – HFH actuator |
KLM | 202306HFH-SS | KLM QC M23 12way 110v (no release) SS head – HFH actuator |
KLM | 202307 | KLM M20 230V (no release) |
KLM | 202307-SS | KLM M20 230V (no release) SS head |
KLM | 202307A | KLM M20 230V (no release) – std actuator |
KLM | 202307A-SS | KLM M20 230V (no release) SS head – std actuator |
KLM | 202307F | KLM M20 230V (no release) – flat actuator |
KLM | 202307F-SS | KLM M20 230V (no release) SS head – flat actuator |
KLM | 202307HF | KLM M20 230V (no release) – HF actuator |
KLM | 202307HF-SS | KLM M20 230V (no release) SS head – HF actuator |
KLM | 202307HFH | KLM M20 230V (no release) – HFH actuator |
KLM | 202307HFH-SS | KLM M20 230V (no release) SS head – HFH actuator |
KLM | 202308 | KLM ½NPT 230V (no release) |
KLM | 202308-SS | KLM ½NPT 230V (no release) SS head |
KLM | 202308A | KLM ½NPT 230V (no release) – std actuator |
KLM | 202308A-SS | KLM ½NPT 230V (no release) SS head – std actuator |
KLM | 202308F | KLM ½NPT 230V (no release) – flat actuator |
KLM | 202308F-SS | KLM ½NPT 230V (no release) SS head – flat actuator |
KLM | 202308HF | KLM ½NPT 230V (no release) – HF actuator |
KLM | 202308HF-SS | KLM ½NPT 230V (no release) SS head – HF actuator |
KLM | 202308HFH | KLM ½NPT 230V (no release) – HFH actuator |
KLM | 202308HFH-SS | KLM ½NPT 230V (no release) SS head – HFH actuator |
KLM | 202309 | KLM QC M23 12way 230V (no release) |
KLM | 202309-SS | KLM QC M23 12way 230V (no release) SS head |
KLM | 202309A | KLM QC M23 12way 230V (no release) – std actuator |
KLM | 202309A-SS | KLM QC M23 12way 230V (no release) SS Head – std actuator |
KLM | 202309F | KLM QC M23 12way 230V (no release) – flat actuator |
KLM | 202309F-SS | KLM QC M23 12way 230V (no release) SS head – flat actuator |
KLM | 202309HF | KLM QC M23 12way 230V (no release) – HF actuator |
KLM | 202309HF-SS | KLM QC M23 12way 230V (no release) SS head – HF actuator |
KLM | 202309HFH | KLM QC M23 12way 230V (no release) – HFH actuator |
KLM | 202309HFH-SS | KLM QC M23 12way 230V (no release) SS head – HFH actuator |
KLM | 202401 | KLM M20 24v (lid release) |
KLM | 202401-SS | KLM M20 24v (lid release) SS head |
KLM | 202401A | KLM M20 24v (lid release) – std actuator |
KLM | 202401A-SS | KLM M20 24v (lid release) SS head – std actuator |
KLM | 202401F | KLM M20 24v (lid release) – flat actuator |
KLM | 202401F-SS | KLM M20 24v (lid release) SS head – flat actuator |
KLM | 202401HF | KLM M20 24v (lid release) – HF actuator |
KLM | 202401HF-SS | KLM M20 24v (lid release) SS head – HF actuator |
KLM | 202401HFH | KLM M20 24v (lid release) – HFH actuator |
KLM | 202401HFH-SS | KLM M20 24v (lid release) SS head – HFH actuator |
KLM | 202402 | KLM ½NPT 24v (lid release) |
KLM | 202402-SS | KLM ½NPT 24v (lid release) SS head |
KLM | 202402A | KLM ½NPT 24v (lid release) – std actuator |
KLM | 202402A-SS | KLM ½NPT 24v (lid release) SS head – std actuator |
KLM | 202402F | KLM ½NPT 24v (lid release) – flat actuator |
KLM | 202402F-SS | KLM ½NPT 24v (lid release) SS head – flat actuator |
KLM | 202402HF | KLM ½NPT 24v (lid release) – HF actuator |
KLM | 202402HF-SS | KLM ½NPT 24v (lid release) SS head – HF actuator |
KLM | 202402HFH | KLM ½NPT 24v (lid release) – HFH actuator |
KLM | 202402HFH-SS | KLM ½NPT 24v (lid release) SS head – HFH actuator |
KLM | 202403 | KLM QC M23 12way 24v (lid release) |
KLM | 202403-SS | KLM QC M23 12way 24v (lid release) SS head |
KLM | 202403A | KLM QC M23 12way 24v (lid release) – std actuator |
KLM | 202403A-SS | KLM QC M23 12way 24v (lid release) SS head – std actuator |
KLM | 202403F | KLM QC M23 12way 24v (lid release) – flat actuator |
KLM | 202403F-SS | KLM QC M23 12way 24v (lid release) SS head – flat actuator |
KLM | 202403HF | KLM QC M23 12way 24v (lid release) – HF actuator |
KLM | 202403HF-SS | KLM QC M23 12way 24v (lid release) SS head – HF actuator |
KLM | 202403HFH |
