Leírás és Paraméterek

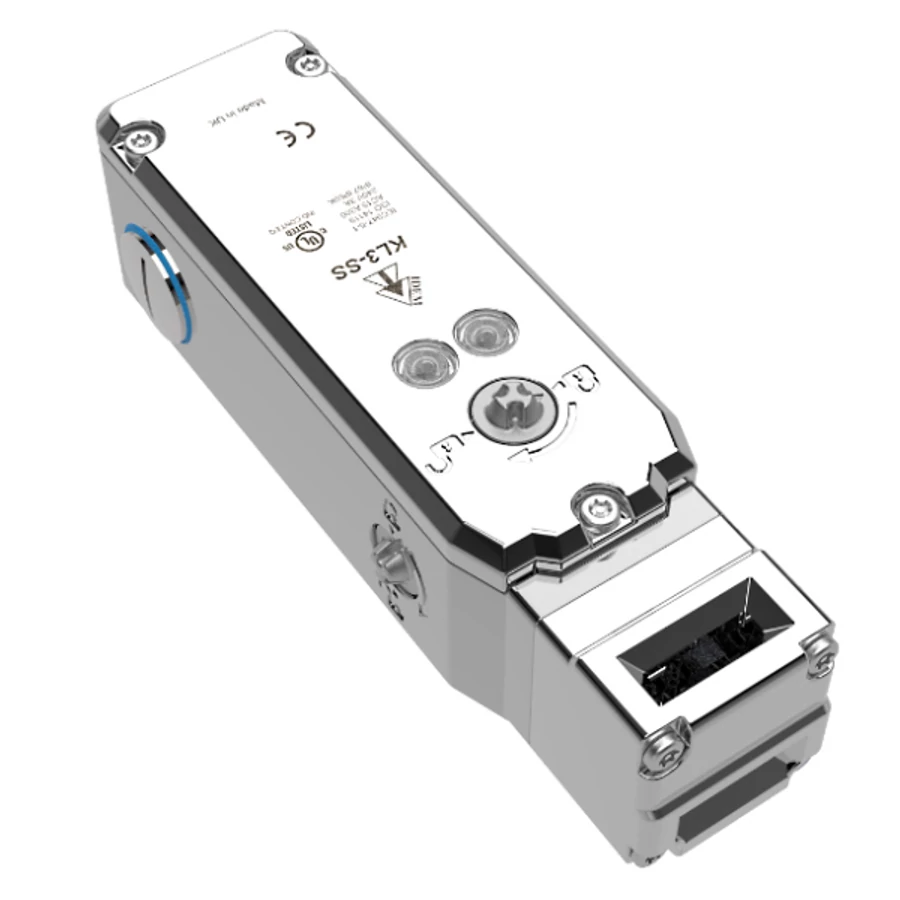

KL3-SS Elektromágneses Reteszelésű Biztonsági Kapcsolók Rozsdamentes Acél (3000N)
Az IDEM KL3-SS egy elektromágneses reteszelésű biztonsági kapcsoló, rendkívül masszív Rozsdamentes Acél tokozattal.
A KL3-SS az IDEM szabadalmaztatott, szabotázsgátló mechanizmussal rendelkezik, amely hosszú távú megbízhatóságot nyújt a legnagyobb kihívást jelentő környezetekben is. Az IP69K védettséget kettős tömítés és rozsdamentes acél belső csavarok által tartósan biztosított.
Jellemzők:
- Anyaga: Mirror Polish (Ra10), 316 rozsdamentes acél, ideális vegyi tisztítószerekkel való rendszeres érintkezés esetén, élelmiszeripari felhasználásra is.
- Tartási erő: F1Max 3000N (300 kg)
- Mágnes feszültség: 24Vac, 110Vac vagy 230Vac
- Működés: Elforgatható fej, Oldalsó és Felső működtető nyílás
- Védelem: IP69K
A KL3-SS két változatban kapható, standard és extra LED-ekkel felszerelt. A szabványos változat további N / C kimenetet biztosít a „zár állapot” visszajelzése számára, míg az „extra LED verzió” ezt az érintkezőt használja az állapot megjelenítéséhez.
Rendelés esetén 4 különböző működtető fej közül választhat:
- A = normál
- F = lapos
- HF = nagy teherbírású rugalmas
- HFH = nagy teherbírású rugalmas higiénikus
Termék | Cikkszám | Leírás |
---|---|---|
KL3-SS | 205001 | KL3-SS M20 24v (std release) |
KL3-SS | 205001A | KL3-SS M20 24v (std release) – std actuator |
KL3-SS | 205001F | KL3-SS M20 24v (std release) – flat actuator |
KL3-SS | 205001HF | KL3-SS M20 24v (std release) – HF actuator |
KL3-SS | 205001HFH | KL3-SS M20 24v (std release) – HFH actuator |
KL3-SS | 205002 | KL3-SS ½NPT 24v (std release) |
KL3-SS | 205002-HFH-RB | KL3-SS ½”NPT 24v (std release) – Urschel Special |
KL3-SS | 205002A | KL3-SS ½NPT 24v (std release) – std actuator |
KL3-SS | 205002F | KL3-SS ½NPT 24v (std release) – flat actuator |
KL3-SS | 205002HF | KL3-SS ½NPT 24v (std release) – HF Actuator |
KL3-SS | 205002HFH | KL3-SS ½NPT 24v (std release) – HFH Actuator |
KL3-SS | 205003 | KL3-SS QC M23 12way 24v (std release) |
KL3-SS | 205003A | KL3-SS QC M23 12way 24v (std release) – std actuator |
KL3-SS | 205003F | KL3-SS QC M23 12way 24v (std release) – flat actuator |
KL3-SS | 205003HF | KL3-SS QC M23 12way 24v (std release) – HF actuator |
KL3-SS | 205003HFH | KL3-SS QC M23 12way 24v (std release) – HFH actuator |
KL3-SS | 205004 | KL3-SS M20 110v (std release) |
KL3-SS | 205004A | KL3-SS M20 110v (std release) – std actuator |
KL3-SS | 205004F | KL3-SS M20 110v (std release) – flat actuator |
KL3-SS | 205004HF | KL3-SS M20 110v (std release) – HF actuator |
KL3-SS | 205004HFH | KL3-SS M20 110v (std release) – HFH actuator |
KL3-SS | 205005 | KL3-SS ½NPT 110v (std release) |
KL3-SS | 205005A | KL3-SS ½NPT 110v (std release) – std actuator |
KL3-SS | 205005F | KL3-SS ½NPT 110v (std release) – flat actuator |
KL3-SS | 205005HF | KL3-SS ½NPT 110v (std release) – HF actuator |
KL3-SS | 205005HFH | KL3-SS ½NPT 110v (std release) – HFH actuator |
KL3-SS | 205006 | KL3-SS QC M23 12way 110v (std release) |
KL3-SS | 205006A | KL3-SS QC M23 12way 110v (std release) – std actuator |
KL3-SS | 205006F | KL3-SS QC M23 12way 110v (std release) – flat actuator |
KL3-SS | 205006HF | KL3-SS QC M23 12way 110v (std release) – HF actuator |
KL3-SS | 205006HFH | KL3-SS QC M23 12way 110v (std release) – HFH actuator |
KL3-SS | 205007 | KL3-SS M20 230v (std release) |
KL3-SS | 205007A | KL3-SS M20 230v (std release) – std actuator |
KL3-SS | 205007F | KL3-SS M20 230v (std release) – flat actuator |
KL3-SS | 205007HF | KL3-SS M20 230v (std release) – HF actuator |
KL3-SS | 205007HFH | KL3-SS M20 230v (std release) – HFH actuator |
KL3-SS | 205008 | KL3-SS ½NPT 230v (std release) |
KL3-SS | 205008A | KL3-SS ½NPT 230v (std release) – std actuator |
KL3-SS | 205008F | KL3-SS ½NPT 230v (std release) – flat actuator |
KL3-SS | 205008HF | KL3-SS ½NPT 230v (std release) – HF actuator |
KL3-SS | 205008HFH | KL3-SS ½NPT 230v (std release) – HFH actuator |
KL3-SS | 205009 | KL3-SS QC M23 12way 230v (std release) |
KL3-SS | 205009A | KL3-SS QC M23 12way 230v (std release) – std actuator |
KL3-SS | 205009F | KL3-SS QC M23 12way 230v (std release) – flat actuator |
KL3-SS | 205009HF | KL3-SS QC M23 12way 230v (std release) – HF actuator |
KL3-SS | 205009HFH | KL3-SS QC M23 12way 230v (std release) – HFH actuator |
KL3-SS | 205301 | KL3-SS M20 24v (no release) |
KL3-SS | 205301A | KL3-SS M20 24v (no release) – std actuator |
KL3-SS | 205301F | KL3-SS M20 24v (no release) – flat actuator |
KL3-SS | 205301HF | KL3-SS M20 24v (no release) – HF actuator |
KL3-SS | 205301HFH | KL3-SS M20 24v (no release) – HFH actuator |
KL3-SS | 205302 | KL3-SS ½NPT 24v (no release) |
KL3-SS | 205302A | KL3-SS ½NPT 24v (no release) – std actuator |
KL3-SS | 205302F | KL3-SS ½NPT 24v (no release) – flat actuator |
KL3-SS | 205302HF | KL3-SS ½NPT 24v (no release) – HF Actuator |
KL3-SS | 205302HFH | KL3-SS ½NPT 24v (no release) – HFH Actuator |
KL3-SS | 205303 | KL3-SS QC M23 12way 24v (no release) |
KL3-SS | 205303A | KL3-SS QC M23 12way 24v (no release) – std actuator |
KL3-SS | 205303F | KL3-SS QC M23 12way 24v (no release) – flat actuator |
KL3-SS | 205303HF | KL3-SS QC M23 12way 24v (no release) – HF actuator |
KL3-SS | 205303HFH | KL3-SS QC M23 12way 24v (no release) – HFH actuator |
KL3-SS | 205304 | KL3-SS M20 110v (no release) |
KL3-SS | 205304A | KL3-SS M20 110v (no release) – std actuator |
KL3-SS | 205304F | KL3-SS M20 110v (no release) – flat actuator |
KL3-SS | 205304HF | KL3-SS M20 110v (no release) – HF actuator |
KL3-SS | 205304HFH | KL3-SS M20 110v (no release) – HFH actuator |
KL3-SS | 205305 | KL3-SS ½NPT 110v (no release) |
KL3-SS | 205305A | KL3-SS ½NPT 110v (no release) – std actuator |
KL3-SS | 205305F | KL3-SS ½NPT 110v (no release) – flat actuator |
KL3-SS | 205305HF | KL3-SS ½NPT 110v (no release) – HF actuator |
KL3-SS | 205305HFH | KL3-SS ½NPT 110v (no release) – HFH actuator |
KL3-SS | 205306 | KL3-SS QC M23 12way 110v (no release) |
KL3-SS | 205306A | KL3-SS QC M23 12way 110v (no release) – std actuator |
KL3-SS | 205306F | KL3-SS QC M23 12way 110v (no release) – flat actuator |
KL3-SS | 205306HF | KL3-SS QC M23 12way 110v (no release) – HF actuator |
KL3-SS | 205306HFH | KL3-SS QC M23 12way 110v (no release) – HFH actuator |
KL3-SS | 205307 | KL3-SS M20 230v (no release) |
KL3-SS | 205307A | KL3-SS M20 230v (no release) – std actuator |
KL3-SS | 205307F | KL3-SS M20 230v (no release) – flat actuator |
KL3-SS | 205307HF | KL3-SS M20 230v (no release) – HF actuator |
KL3-SS | 205307HFH | KL3-SS M20 230v (no release) – HFH actuator |
KL3-SS | 205308 | KL3-SS ½NPT 230v (no release) |
KL3-SS | 205308A | KL3-SS ½NPT 230v (no release) – std actuator |
KL3-SS | 205308F | KL3-SS ½NPT 230v (no release) – flat actuator |
KL3-SS | 205308HF | KL3-SS ½NPT 230v (no release) – HF actuator |
KL3-SS | 205308HFH | KL3-SS ½NPT 230v (no release) – HFH actuator |
KL3-SS | 205309 | KL3-SS QC M23 12way 230v (no release) |
KL3-SS | 205309A | KL3-SS QC M23 12way 230v (no release) – std actuator |
KL3-SS | 205309F | KL3-SS QC M23 12way 230v (no release) – flat actuator |
KL3-SS | 205309HF | KL3-SS QC M23 12way 230v (no release) – HF actuator |
KL3-SS | 205309HFH | KL3-SS QC M23 12way 230v (no release) – HFH actuator |
KL3-SS | 205401 | KL3-SS M20 24v (lid release) |
KL3-SS | 205401A | KL3-SS M20 24v (lid release) – std actuator |
KL3-SS | 205401F | KL3-SS M20 24v (lid release) – flat actuator |
KL3-SS | 205401HF | KL3-SS M20 24v (lid release) – HF actuator |
KL3-SS | 205401HFH | KL3-SS M20 24v (lid release) – HFH actuator |
KL3-SS | 205402 | KL3-SS ½NPT 24v (lid release) |
KL3-SS | 205402A | KL3-SS ½NPT 24v (lid release) – std actuator |
KL3-SS | 205402F | KL3-SS ½NPT 24v (lid release) – flat actuator |
KL3-SS | 205402HF | KL3-SS ½NPT 24v (lid release) – HF Actuator |
KL3-SS | 205402HFH | KL3-SS ½NPT 24v (lid release) – HFH Actuator |
KL3-SS | 205403 | KL3-SS QC M23 12way 24v (lid release) |
KL3-SS | 205403A | KL3-SS QC M23 12way 24v (lid release) – std actuator |
KL3-SS | 205403F | KL3-SS QC M23 12way 24v (lid release) – flat actuator |
KL3-SS | 205403HF | KL3-SS QC M23 12way 24v (lid release) – HF actuator |
KL3-SS | 205403HFH | KL3-SS QC M23 12way 24v (lid release) – HFH actuator |
KL3-SS | 205404 | KL3-SS M20 110v (lid release) |
KL3-SS | 205404A | KL3-SS M20 110v (lid release) – std actuator |
KL3-SS | 205404F | KL3-SS M20 110v (lid release) – flat actuator |
KL3-SS | 205404HF | KL3-SS M20 110v (lid release) – HF actuator |
KL3-SS | 205404HFH | KL3-SS M20 110v (lid release) – HFH actuator |
KL3-SS | 205405 | KL3-SS ½NPT 110v (lid release) |
KL3-SS | 205405A | KL3-SS ½NPT 110v (lid release) – std actuator |
KL3-SS | 205405F | KL3-SS ½NPT 110v (lid release) – flat actuator |
KL3-SS | 205405HF | KL3-SS ½NPT 110v (lid release) – HF actuator |
KL3-SS | 205405HFH | KL3-SS ½NPT 110v (lid release) – HFH actuator |
KL3-SS | 205406 | KL3-SS QC M23 12way 110v (lid release) |
KL3-SS | 205406A | KL3-SS QC M23 12way 110v (lid release) – std actuator |
KL3-SS | 205406F | KL3-SS QC M23 12way 110v (lid release) – flat actuator |
KL3-SS | 205406HF | KL3-SS QC M23 12way 110v (lid release) – HF actuator |
KL3-SS | 205406HFH | KL3-SS QC M23 12way 110v (lid release) – HFH actuator |
KL3-SS | 205407 | KL3-SS M20 230v (lid release) |
KL3-SS | 205407A | KL3-SS M20 230v (lid release) – std actuator |
KL3-SS | 205407F | KL3-SS M20 230v (lid release) – flat actuator |
KL3-SS | 205407HF | KL3-SS M20 230v (lid release) – HF actuator |
KL3-SS | 205407HFH | KL3-SS M20 230v (lid release) – HFH actuator |
KL3-SS | 205408 | KL3-SS ½NPT 230v (lid release) |
KL3-SS | 205408A | KL3-SS ½NPT 230v (lid release) – std actuator |
KL3-SS | 205408F | KL3-SS ½NPT 230v (lid release) – flat actuator |
KL3-SS | 205408HF | KL3-SS ½NPT 230v (lid release) – HF actuator |
KL3-SS | 205408HFH | KL3-SS ½NPT 230v (lid release) – HFH actuator |
KL3-SS | 205409 | KL3-SS QC M23 12way 230v (lid release) |
KL3-SS | 205409A | KL3-SS QC M23 12way 230v (lid release) – std actuator |
KL3-SS | 205409F | KL3-SS QC M23 12way 230v (lid release) – flat actuator |
KL3-SS | 205409HF | KL3-SS QC M23 12way 230v (lid release) – HF actuator |
KL3-SS | 205409HFH | KL3-SS QC M23 12way 230v (lid release) – HFH actuator |
